Explosion Proof High And Low Temperature Environmental Test Chamber For Ammunition
Explosion Proof High Low Temperature Environmental Test Chamber For Power Battery
OEM and ODM are welcome ,more information , pls kindly contact : e-mail :anna@komegtech.com
Specifications
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
| Temp range |
-40℃～ +150℃
|
|
Temp Deviation |
≦ ± 2.0℃
|
|
emp Fluctuation |
±0.5℃
|
|
Temp Uniformity |
±2.0℃
|
|
Heating up rate |
-20℃↑ +100℃ about 45min (no-load, ambient temperature +25℃)
|
| cooling rate |
20 ℃to -40℃ about 45min (no-load, ambient temperature +25℃
|
|
Chamber size |
Workspace volume: W 900 × H 850 × D 800 mm
Exterior size: W 900 × H 1785× D 1860mm (about)
|
|
Insulation box |
Wall material: high-quality carbon steel with static color spray
Inner wall material: SUS304 # matte stainless steel plate
Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
|
Door |
Observation window door, . Heating wire was installed at the door frames to
prevent condensation at low temperatures. |
| Lighting device |
LED
|
|
Heating |
High quality nickel-chromium alloy wire electric heaters,
Non-contact control mode(SSR) |
|
Cable port |
Φ100mm*1 located on each side of chamber, with rubber stopper and stainless
steel cover |
|
Shelf for samples |
Two layers of stainless steel sample holder. Adjustable, load capacity 30kg/
layer |
|
Mobile Casters |
Mobile Casters with foot cups
|
| Explosive pressure relief device |
When the pressure in the equipment or pipe over the safety valve,
automatically open the pressure relief
a. When the test box in the product explosion, there is a pressure release
pipe
b. Protection of test equipment,
C. protection human |
Application
It is suitable for tests the products of electrical, electronic, mechanical and other products, parts and
materials under the conditions of high and low temperature and high temperature and humidity. For quality
and reliability test of simulating temperature and humidity changes in electrical, electronic, mechanical and
other products, parts and materials.

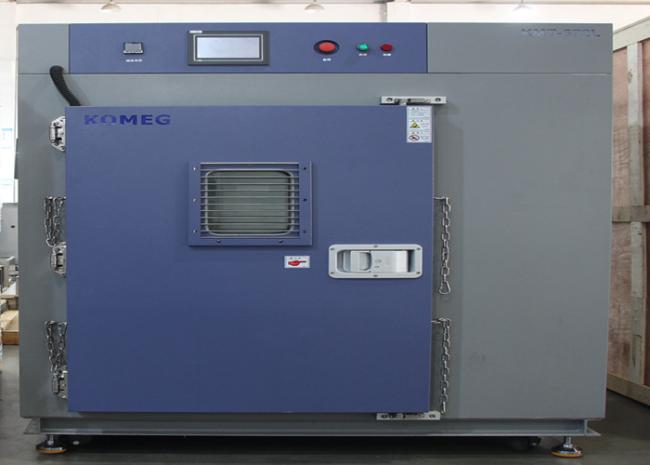

Photos show
