16000L Double Door SS Industrial Drying Ovens With Temperature Controller High Performance
16000L Double door stainless steel High Performance Oven wiht Temperature controller
Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods.
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc.
Prouduct Specifications
| Ⅱ. Specifications | |
| 1.Air supply mode | Forced air circulation |
|
2.Temperature Range |
RT+20 ～ +300℃ |
|
3.Temp fluctuation |
±0.5℃ |
|
4.Temp Uniformity |
±2.0℃ (RT+20℃ ～ +100℃) ±3.0℃ (+101℃ ～ +200℃) ±4.0℃ (+201℃ ～ +300℃) |
| 5. Heat up time | RT+20 ～ +300℃ 2℃/min (no-load) |
| 6. Control mode | PID+SSR output |
|
7.Interior dimension |
W 2000 × H 2000 × D 4000 mm |
|
8.Exterior dimension |
Approximately W 2420 × H 2510 × D 4200 mm (not including the machine protruding part)) |
| 9. Door gasket | Double door with rubber stopper and plastic cover. |
| 10.Materials | interior material :SUS 201# stainless steel External material:Cold paint |
|
11.Insulation materials |
glass fiber |
| 12. Heater | Fins radiator pipe shaped stainless steel electric heater |
|
13.Temperature controller |
Koea imported thermostat ST-570
* High precision (0.1%), high performance
* Support multi-input (T / C, RTD, DCV)
* Multi-output and simultaneous output (Max 4 points)
* Parameter operation is simple, the text can be set
* Supports suppression of Overshoot function
* Alarm output 1 point
* Operation display of auxiliary output status
* Input adjustment function for each zone (Max 4 Zone)
* Control the heating and cooling functions
* PID automatic adjustment function (AT Gain)
* Supports multiple communication protocols (Modbus, etc.)
* To achieve high quality, high reliability (CE, CUL, ISO, etc.) |
| 14.Sensor | High precision DIN A class, dry ball φ4.8mm SUS #304 PT 100Ω. |
| 15. Work timer | Digital timer *1, range 0~9999min (after the temperature arrives, start timing, timing is completed, stop working). |
|
16. Protective device |
Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch. |
| 17.Sealed lamp | Sealed lamp*4 |
| 18.Bottom plate | Bottom plate additional insulation board |
recorder |
48-channel paperless recorder * 1 |
| 20. Accessory | Power cord 3 meters. |
Features
● GB-2423．2-89(IEC68-2-2)Test B: High Temperature Test
● GJB360．8-87(MIL-STD．202F) High Temperature Life Test
● GBJl50．3(MIL-STD-810D) High Temperature Test

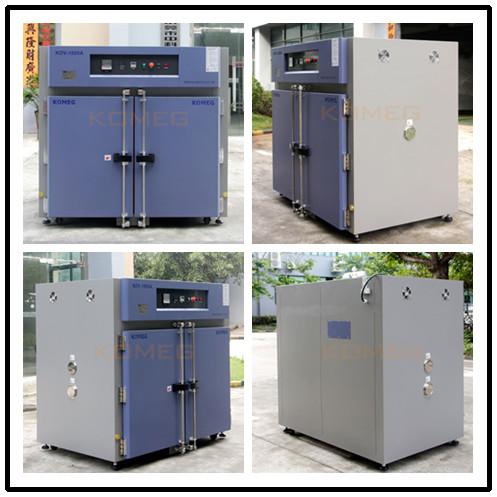

Prouduct Display
Packing and Shipment:
1,Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and
welcome you to visit the company and check the goods.
2,After-sales service
After the completion of the transaction, our company will be arranged different after-sales service
according to the ease of the goods , and even arrange work engineers on-site service.
3,Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem,
providing a solution.
