2250L 3 Zone Thermal Shock Test Chamber With Double Door Steel Paint Wall Material
2250L 3 Zone Water cooled Thermal Shock Chamber wiht True color LCD touch PLC architecture controlle
Applications
Use low temperature and high temperature cold storage heat storage tank to open DAMPER according to
the action to achieve rapid impact effect; balance temperature control system (BTC), control SSPR in
P.I.D. mode, so that the heating amount of the system is equal to the heat loss, so it can be used stably
for a long time.
Specifications
|
1.HighTemperature Range |
+60℃ ～ +150℃ |
|
2.LowTemperature Range |
-55℃ ～ -10℃ |
| 3. High Temperature Chamber Temp. Range | +60 ～ +200℃ |
| 4. Low Temperature Chamber Temp. Range | -70℃ ～ -10℃ |
| 5.Shock return time |
-55℃ ～ +150℃ About 5min (the sensor put in the outlet of the unit) |
|
6.High and Low Temperature Shock Constant temperature time |
30min or more |
| 7.Temperature uniformity | ±2.0℃ |
| 8.Temperature fluctuation | ±0.5℃ |
| Ⅲ. Structure | |
| 1. Internal dimension | W 1500 × H 1000 × D 1500 mm |
| 2. EX. Dimension | Approximately W 3650 × H 2320 × D 3180 mm (not including the machine protruding part) |
| 3. Chamber Structure | independent product testing area, High temperature storage area, Low temperature cold storage area |
| 4. Inner wall material | Stainless Steel Plate SUS304 |
| 5. Wall material | Steel paint |
| 6. Insulation material |
High temperature chamber:24k Glass wool Low temperature chamber:Rigid polyurethane Foam + glass fiber |
| 7. Heater | Nickel - Chromium Alloy Wire heater |
| 8. Supply air circulation system |
a. Teco motors b. Stainless steel long axis c. (SIROCCO FAN) |
| 9. Door | Double door |
Standards Met and Implemented:
GB/T2423.1.2
GB10592-89
GJB150

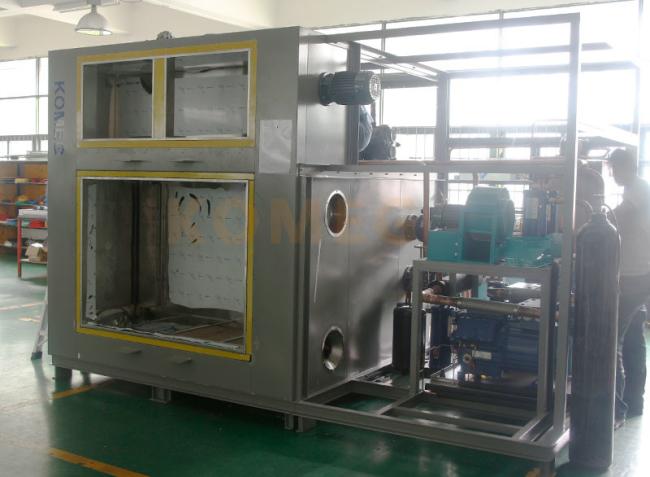

Prouduct Display
Packing and Shipment:
