Large Ventilation Aging Test Chamber / Cable Ventilation Resistance Test Chamber
large ventilation aging test chamber / Cable ventilation resistance test chamber
Description
Ventilation aging chamber for electrical insulating materials, heat resistance test, electronic parts, plastic
products, aging tests of ventilation, assessment and determine their storage and use under conditions of
high temperature environment adaptability sample simulation after measuring the performance of air at
high temperature and atmospheric pressure in aging and unaged sample to be compared with the
performance.
Applicationg
Aging testing chamber/equipments (burn-in room/ chamber)
Suitable for semi-finished & finished products test and cull failure parts. Promote the quality and reliability
of products.
Specifications
| Interior dimensions(W*H*D) mm | 1500*1280*550 |
| Exterior dimensions(W*H*D) mm | 1720*1980*750 |
| Temp. range | Room Temp. +20～+100℃ |
| Temp. constancy | ±0.5℃ |
| Temp. uniformity | ±3℃ |
| Test. capacity | 88PCS/CYCLE(Custom made available) |
| Dimension | 100W*100HJ*50D(MM) |
| Test range | FAN(full machines number) |
| Voltage range | 3～50V |
| Current range | ±5% |
| Speed | 0-15000RPM,±8% |
| The detection speed | 7-12sec/cycle |
| Note: | |
| 1. We reserve the right to change specifications without prior notice | |
| 2. Customized sizes and configurations available | |
FAQ
Q1: What is the Warranty?
Generally, 12 months warranty. But for drying oven, the warranty is 18 months. If any quality problems on
our side occured in this period ,we will take on the cost of shipping and component parts.
Q2: What's the delivery term?
Usually, 20 - 25 days after order confirmation. It will be took more time for customization service. If you are
in urgent need, we can make special arrangement for you. It could be shipped by sea, by air or by air
express.
Q3: What’s the payment term?
Accept different kinds of payment terms, such T/T, L/C, Paypal.
Q4: Is it ok for customization service?
Of course you can. We are manufacturer of environmental test equipment. Once with your detailed
requests, we could make environmental test chamber accordingly.

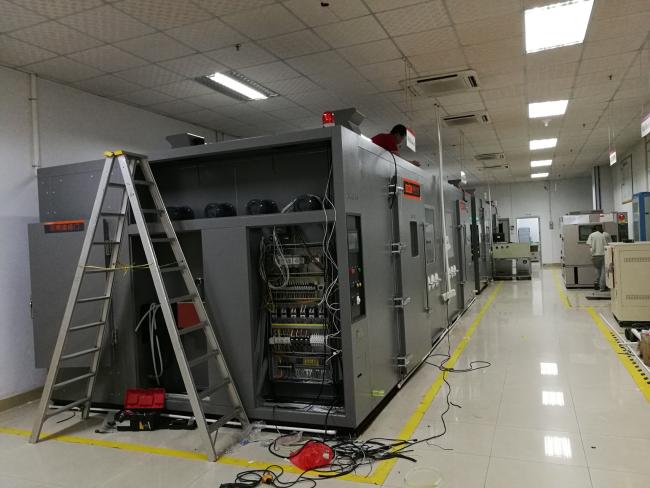

Prouduct Display
Packing and Shipment:
1) We deal with your complains within 24 hours.
