Single Door Small Industrial Oven With Over Temperature Protective Device 100 L
100 L Single door small industrial oven high temperature with over temperature protective device
Product Overview
This series is applicable to the reliability test and production of industrial products, with the characteristics
of high temperature control accuracy and wide control range, performance index accords with
GB5170.2.3.5.6-95 "electrical and electronic products environmental testing equipment basic parameter
calibration method of high temperature test equipment” required standards.
Specifications
| 2.1 Test space | About 100L |
| 2.2 Interior size | W500 mm*H450 mm*D450 mm |
| 2.3 Exterior size | W770 mm*H830 mm*D810mm(Excluding the protruding part of the machine!) |
| 2.4 Floor area | About 0.7m2；(confirm after place the order) |
3. Main technical parameters
| 3.1 Test Conditions | Equipment cooling method: fresh air type |
| 3.2 Temperature range | RT+15℃～+300℃ |
| 3.3 Temperature fluctuation | ≦±0.5℃ |
| 3.4 Temperature uniformity | ±1.0℃ (RT ～ +100℃) |
| 3.5Temperature deviation | ≦±2.0℃ |
| 3.6 Temperature change rate | Heat up rate: |
| 3.7 Load | No |
| Measured at room temperature +25 ° C under no load, the temperature performance test is measured according to the relevant regulations IEC 60068 -3; the sensor is placed at the air outlet of the unit. | |
| 3.8 Noise | ≦75 (dB) (The noise detection device is measured 1m away from the door of the chamber) |
| 3.9 Meet the test standard | GB-2423.2-89(IEC68-2-2)Test B: High temperature test method. |
4. Chamber construction
| 4.1 Construction type | Integral box structure |
| 4.2 Thermal insulation structure | Outer box color steel plate - intermediate insulation layer is temperature resistant foam insulation material - inner box SUS201 stainless steel |
| 4.3 Outer box material | High-quality anti-corrosion electrolysis board, surface electrostatic powder paint. |
| 4.4 Wall material | SUS201 stainless steel ,Thickness=1.0 mm； |
| 4.5 Insulation | Rigid polyurethane foam insulation layer,Thickness=100mm, flame retardant grade A1. |
4.6 Door | Single door, left open,Stainless steel handle ； |
| 4.7 Control panel | Temperature control touch screen, start switch, emergency stop switch, buzzer |
| 4.8 Unit part | Including : |
| 4.9 Distribution Cabinet | Switchboard |
| 4.10 Standard configuration | Sample holder:Two layers of mesh sample holder,,load capacity 30KG/layer , |
| 4.11 Exhausting valve | Adjustable |
Features
GB-2423．2-89(IEC68-2-2)Test B: High Temperature Test
GJB360．8-87(MIL-STD．202F) High Temperature Life Test
GBJl50．3(MIL-STD-810D) High Temperature Test

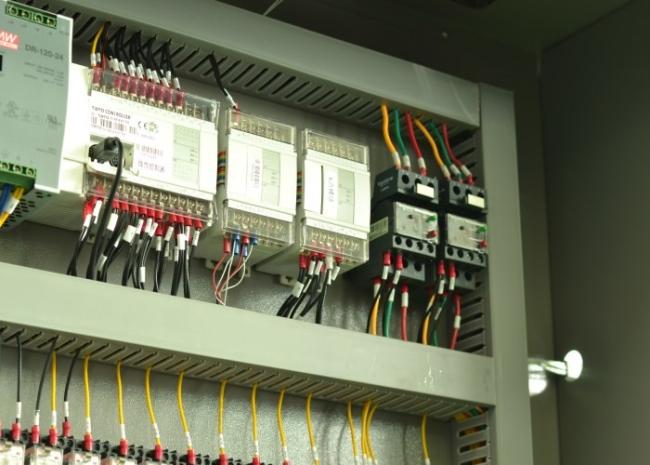

Meaningful picture
Packing and Shipment:

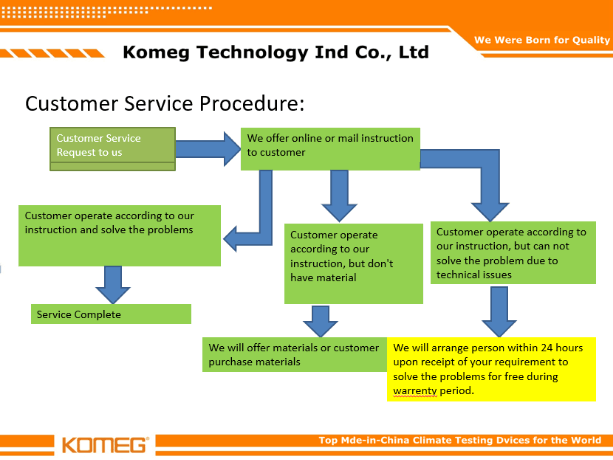

1, Pre-sales service
Before the purchase, our company will provide customers with detailed product-related information, and
welcome you to visit the company and check the goods.
2, After-sales service
After the completion of the transaction, our company will be arranged different after-sales service
according to the ease of the goods , and even arrange work engineers on-site service.
3, Warranty period
Our product warranty is 12 months and we are committed to responding within 48 hours of the problem,
providing a solution.
