Industrial Ultrasonic Round Transducer Box for Cleaning Tanks
Industrial Stainless Steel Ultrasonic Round Transducer Box
Product Overview
The Round Ultrasonic Transducer Box is designed to upgrade or integrate with ultrasonic cleaning tanks, delivering powerful and uniform ultrasonic energy for efficient cleaning performance. It can be installed on the side, bottom, or top of a tank, providing flexible configurations and comprehensive 360° cleaning coverage for various industrial cleaning applications.
Key Features
Powerful Ultrasonic Cleaning
High-frequency ultrasonic waves generate strong cavitation effects to remove oil, grease, dirt, and contaminants from hard-to-reach areas quickly and efficiently.
Industrial-Grade Construction
Built with SUS stainless steel housing and hard chrome plating for excellent corrosion resistance, durability, and long service life.
Adjustable Ultrasonic Power
Flexible power adjustment allows optimization for different cleaning processes and materials, ensuring consistent cleaning results.
Easy Installation & Retrofit
Can be easily installed into new or existing tanks, providing a cost-effective way to upgrade conventional cleaning systems.
Customizable Design
Available with 6–40 transducers per box, power outputs from 300W to 2000W, and frequencies of 28kHz or 40kHz to meet specific application requirements.
Wide Range of Applications
Suitable for cleaning metal parts, electronic components, molds, automotive parts, medical instruments, hardware, and other industrial products.
Reliable Performance
Supports continuous operation with stable ultrasonic output, low maintenance requirements, and long-term reliability.
Warranty & Technical Support
1-year warranty with professional after-sales service and transducer replacement support for reduced maintenance costs.
Technical Parameter

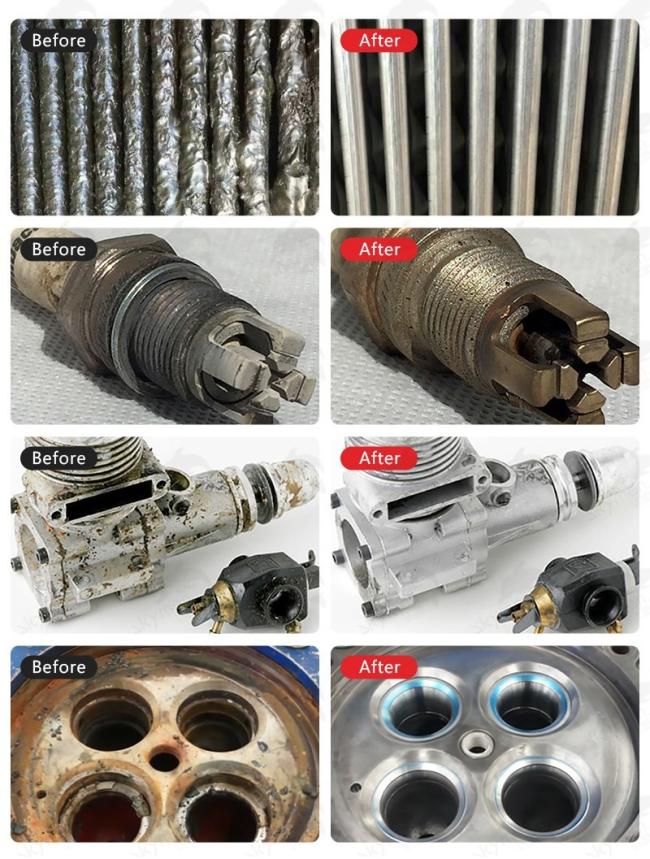

Cleaning Effect
Our advantages
1. We are a direct manufacturer and factory and have the ability of mass production.
2. With an R&D department, we ensure our own technological and innovative products.
3. We have our own brand, Skymen, and do OEM & ODM for distributors.
4. Skymen provides a wide range of industrial cleaning equipment, including:
(1)Standard Ultrasonic Cleaning Machines (Single Tank or Multi-Stage from 38 to 1500 L)
(2)Immersible Ultrasonic Transducer Modules
(3)Extra Large Ultrasonic Cleaning Equipment (over 20,000 L)
(4)Semi-Automatic Ultrasonic Cleaning Machines with Translation & Lifting Systems
(5)Automatic Ultrasonic Cleaning Machines with PLC Control
(6)Special Function Cleaning Machines, such as Rotary Basket Spraying Cleaning Machine, Heated Soak Tank, Anilox Roller Ultrasonic Cleaner, Explosion-Proof Ultrasonic Cleaner, and more.
(7)Plasma Surface Treatment Machines
5. Our products comply with international safety and environmental
standards, with certifications including CE, FCC, RoHS, PSE, and Ex. We also follow strict quality management systems such as ISO 9001, ISO 14001, ISO 45001, and SA8000.
6. 1 year warranty for all goods.
