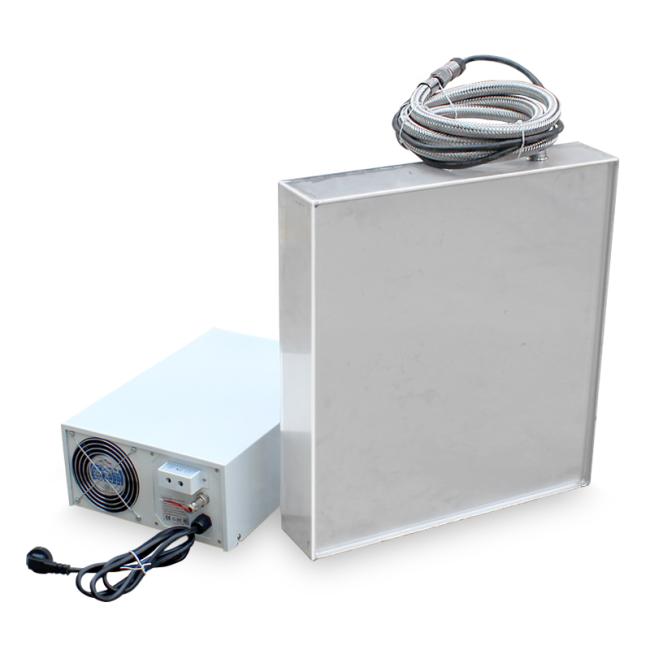

Immerible Ultrasonic Transducer 300W 2000W adjustable 40kHz SUS with a generator

Immersible ultrasonic transducer units can be installed in the tank by three ways:
1. side mounted
2. bottom mounted
3. top mounted

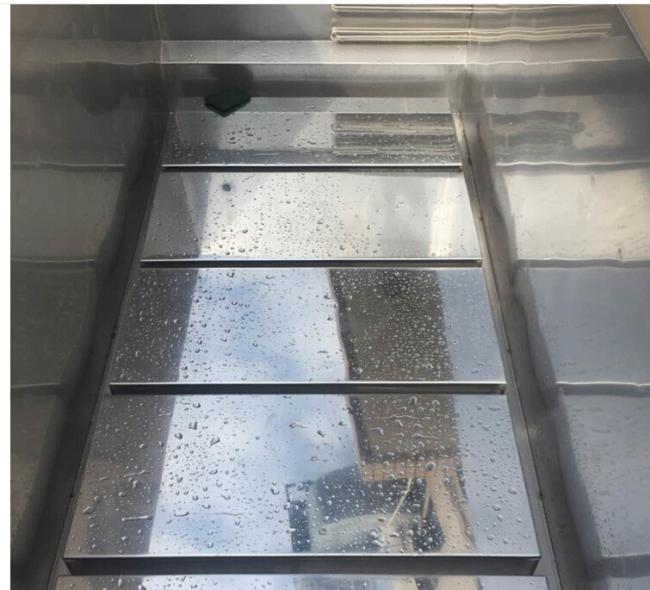

Bottom mounted

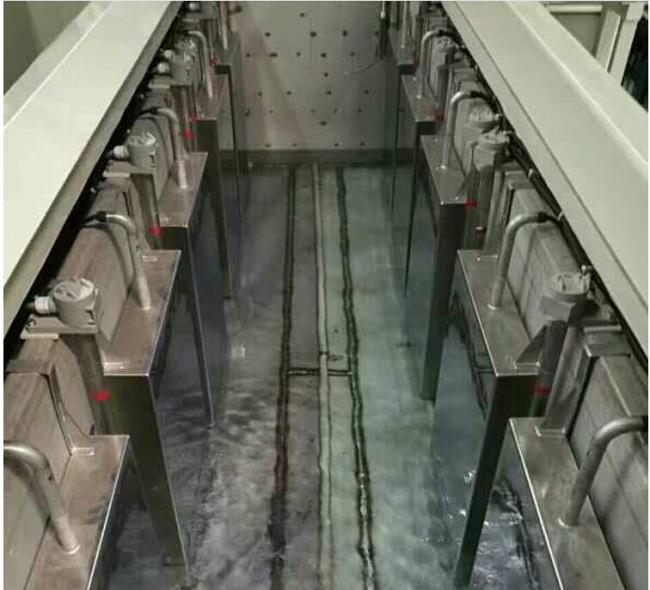

Side mounted

Skymen will design proper mounted way for you according to your requirements and existing tank specifications.

Transducer pack Specifications:


Features:
Original BLT type transducer
SUS stainless steel housing Hard-Cr plating Treatment ( 20 + microns )
Adaptable for continuous operation
Adjustable ultrasonic power
With separate control ultrasonic electronic generator
Custom made size is available
Transducer no./transducer box: range[6pcs~40pcs per box]
Ultrasonic power: range[300W~2000W]
Ultrasonic frequency: 28KHZ/40KHz

The lead-out way: ISM

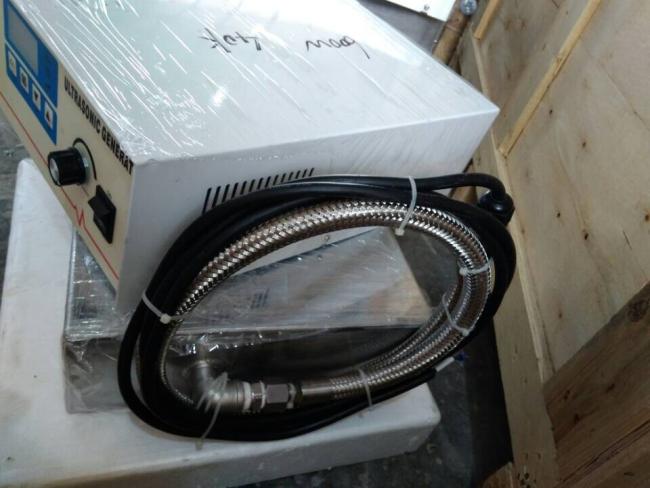

The ultrasonic generator

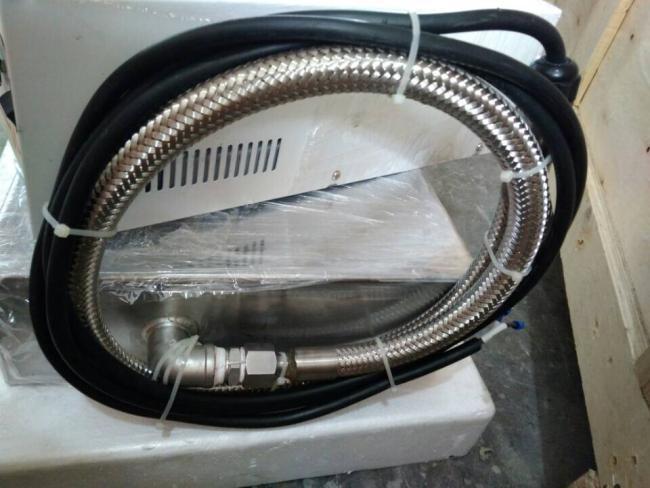

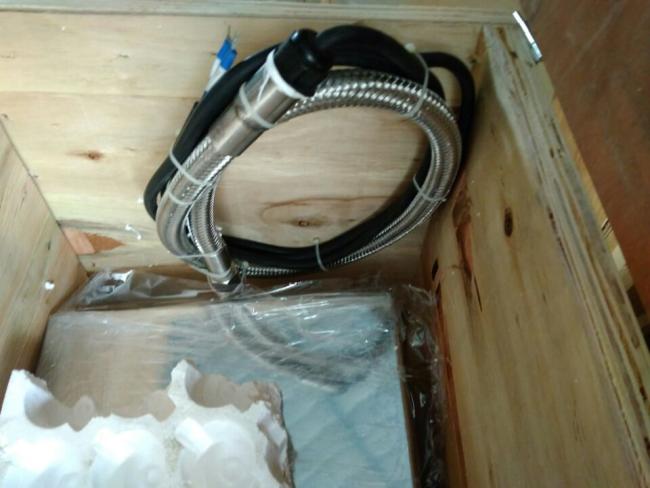

Package: wooden case

The advantages of ultrasonic extraction

1. High ultrasonic extraction efficiency. Extraction rate is 50%~500% higher than the traditional process
2. Ultrasonic extraction time is short.  Only 24~40minutes to get the best extraction rate for Ultrasonic extraction of medicine. Short 2/3 or more than traditional craft methods, so ultrasonic can deal with large raw materials.
3.  Ultrasonic extraction temperature is low. Optimum temperature ultrasonic extraction is 40-60 degrees Celsius, no need to provide steam heating boilers, help save energy and improve the environment pollution. More important is the case of thermally unstable, susceptible to hydrolysis or oxidation of the active medicinal ingredient has a protective effect.
4. Ultrasonic extraction and wide adaptability. Suitable for most types of herbal extracts and various ingredients.

If have your own water-tank, you can have a try to use this machine. It is easy to operate and improve the extraction efficiency.
