77L / Tank Ultrasonic Cleaning Equipment Ultrasonic Auto Parts Cleaner
77L / Tank Ultrasonic Cleaning Equipment For Auto Parts Large Ultrasonic Cleaner

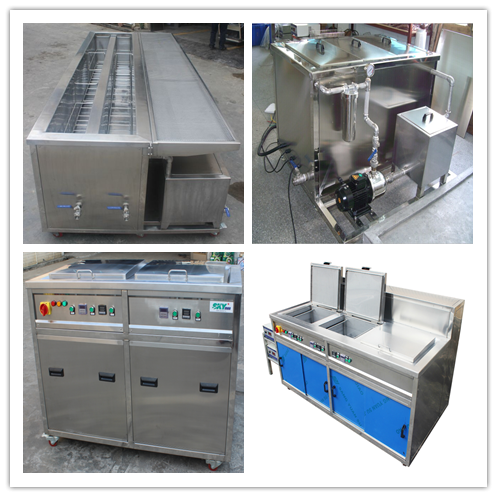

Skymen 3 stage unit (multi-tank) ultrasonic cleaner machine
| Three tanks ultrasonic cleaning machine | |||
| Model | JP-3048GPH | JP-3072GPH | JP-3144GPH |
| Tank Dimension(mm) | 550X400X350/tank | 600X500X450/tank | 1000X600X600/tank |
| Max. Capacity | 77L/tank | 135L/tank | 175L/tank |
| Construction Case | SUS304 (Mirror shining image available) | ||
| Construnction Tank | SUS304 | ||
| Transducer Number | 48pcs | 72pcs | 144pcs |
| Ultrasonic power(Max.) | 1200W | 2400W | 3600W |
| Ultrasonic frequency | 40kHz | 40kHz | 40kHz |
| Temperature range | 20~80C adjustable | ||
| Heating power/tank1# 2# | 3KW | 6KW | 9KW |
| Heating power/tank3# | 3KW | 6KW | 12KW |
| Timer | 1~99h | 1~99h | 1~99h |
| Drain | 3/4" Valve | ||
| Lid & Basket | Available, material: SUS304 | ||
| Cleaning Tank voltage | AC220V/AC380V 3phase | ||
| Generator Voltage | AC110V / 220V 1phase | ||
| Features | With ultrasonic cleaning, ultrasonic rinsing and drying With filtration, throwing system Multi-direction castors with brake; |
||
Advantage:
- Material : SUS304/316L with 2mm thickness
- PCB Board: manufactured by Skymen factory, more stable.
- Filtration System: for heavy duty oil removing, cycle cleaning solvent, prevent second polution and better cleaning effects.
- 15 years experience engineer will design the machine for you
Application:
SKYMEN specifically designed to clean the internals and externals of a ultrasonic cleaning machines are used by many manufacturers to clean injection moulds, dies and tools. ,fast and effectively. With the unique cleaning techniques this machine incorporates one large higvehicle radiators, industrial compressor radiator and hydraulic coolersh powered cleaning tank . Generators control , and pump and filtration system. Best cleaning the ultimate ultrasonic cleaner for vehicle radiators,
