Big Volume 53l 40khz Industrial Ultrasonic Parts Cleaner / High Power 900w Ultrasonic Cleaning Machine
Industrial Ultrasonic parts cleaner JP-180ST
| Model | JP-180ST(digital,power adjustable) |
| Tank size | 50×35×30cm |
| Unit size | 68x53x70cm |
| wooden case package | 85x62x88cm |
| Ultrasonic power | 360W~900W |
| Heating power | 3000W |
| Timer: | 1~99min adjustable |
| Heater | 0 ~80℃ adjustable |
| Frequency | 28/40kHz |
| Tank capacity | 53L |
| G.W. | 80kg |
Packing list
1*ultrasonic cleaner
1*basket
1*lid
1* English manual
1*power cord
What is an ultrasonic parts cleaner?
Ultrasonic parts washers work by inducing controlled cavitation in the cleaning fluid. Cavitation bubbles form and collapse suddenly, releasing tremendous energy against the surfaces of objects(such as dirt,dust, oil, grease) immersed in the tank. This action "scrubs" hard to remove soils from the parts. Cavitation is determined by the frequency of the unit. Low frequencies generate large cavitation and high frequencies generate smaller cavitation, but in greater numbers.

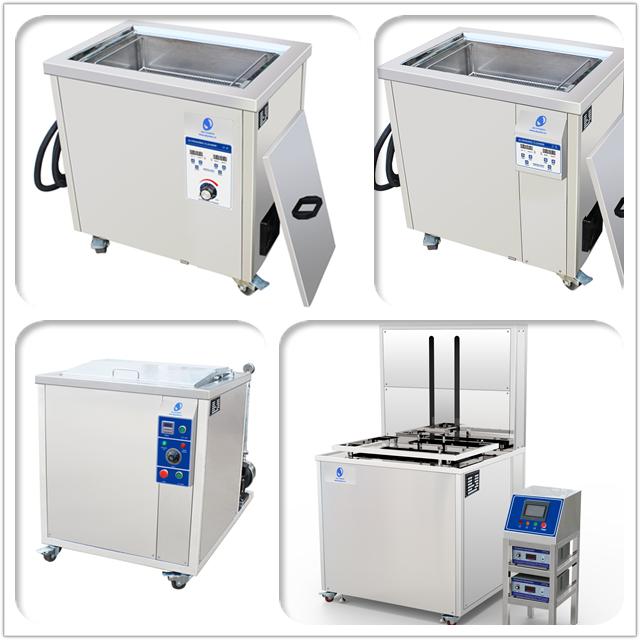

Other size for your choice
| Model | Tank size | Unit size | Volume | Ultrasonic power | Frequency | Heating power | Timer | Heating temperature |
| L×W×H(mm) | L×W×H(mm) | (L) | (W) | (kHz) | (W) | (MIN) | (℃) | |
| JP-120ST | 500x300x250 | 670x480x700 | 38 | 240-600 | 28/40 | 1500 | 1-99 | 0-80 |
| JP-180ST | 500x350x300 | 680x530x700 | 53 | 360-900 | 3000 | |||
| JP-240ST | 550x400x350 | 730x580x770 | 77 | 480-1200 | 3000 | |||
| JP-300ST | 550x450x400 | 730x618x800 | 99 | 1500 | 4500 | |||
| JP-301ST | 800x300x400 | 940x420x800 | 96 | 1500 | 4500 | |||
| JP-360ST | 600x500x450 | 805x705x780 | 135 | 1800 | 4500 | |||
| JP-480ST | 700x500x500 | 870x705x790 | 175 | 2400 | 6000 | |||
| JP-600ST | 800x600x500 | 970x770x800 | 264 | 3000 | 6000 | |||
| JP-720ST | 1000x600x600 | 1170x770x715 | 360 | 3600 | 9000 |

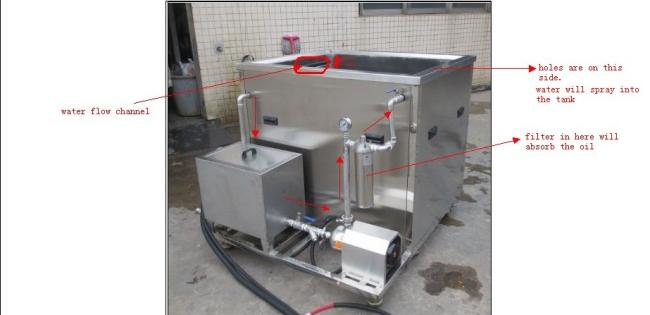

With oil filter system
| Model | JP-240G | JP-360G | JP-480G | JP-720G |
| Tank size(MM) | 550*400*350 | 600*500*450 | 700*500*500 | 1000*600*600 |
| Tank capacity | 77L | 135L | 175L | 360L |
| Transducers | 24 | 36 | 48 | 72 |
| Ultrasonic power | 1200W | 1800W | 2400W | 3600W |
| Heating power | 3000W | 4500W | 6000W | 9000W |
| Ultrasonic frequency | 28KHZ/40KHZ | |||
| Tank material | 304/316SUS | |||
| Tank thickness | 2MM | |||
| Timer | 1S-99hours adjustable/Normally open | |||
| Heater | 20-95℃ adjustable | |||
| Drain valve | 1 inch | |||
| Basket & Lid | standard equipped | |||
| Machine Voltage | AC 220V/380V, 3phases | |||
| Generator Voltage | AC 110V/220V, 1phase | |||
