SUS304/316 Ultrasonic Cleaning tank of Machinery and Aluminum Parts with filtration system
Large-Capacity Industrial Ultrasonic Cleaners
Large-capacity ultrasonic industrial cleaning units are designed to handle large and heavy duty equipment and parts, including a variety of industrial parts, automotive and aerospace parts. These units typically feature rinse and dry stations and other features.
What ultrasonic cleaner can do ?
To remove carbon,oil, dust,rust that bulild on any items.
No damage to object surface and improve cleaning efficiency.
Specification:
| Ultrasonic Frequency | 40KHz/28KHz |
| Material | Stainless Steel SUS304 |
| Tank Capacity | 264 Liter |
| Transducer | 60pcs |
| Timer | 1-99Hours adjustable |
| Heater | 20°C to 95°C adjustable |
| Power Supply | AC380V, 3 phase/50Hz |
| Heating Power | 9000W |
| Ultrasonic Power | 3000W |
| Generator | 2pcs |
| Tank Size (LxWxH) | 800x600x550mm |
| Unit Size | 1060*1400*950mm |
| Packing Size | 1120*1460*1070mm Wooden case |
| Warranty | 1 year |
Single tank industrial ultarsonic cleaner:
| Model | JP-360ST | JP-480ST | JP-600ST | JP-720ST | JP-1108ST |
| Tank size(MM) | 600*500*450 | 700*500*500 | 800*600*550 | 1000*600*600 | 1000*900*600MM |
| Tank capacity | 135L | 175L | 264L | 360L | 540L |
| Transducers | 36 | 48 | 60 | 72 | 108 |
| Ultrasonic power | 1800W | 2400W | 3000W | 3600W | 5400w |
| Heating power | 4500W | 6000W | 6000W | 9000W | 18 kw |
| Frequency | 40KHZ/28KHZ | ||||
| Tank material | 304/316SUS | ||||
| Tank thickness | 2MM | ||||
| Timer | 1S-99hours adjustable/Normally open | ||||
| Heater | 20-95c adjustable | ||||
| Drain valve | 1 inch | ||||
| Basket & Lid | standard equipped | ||||
| Machine Voltage | AC 220V/380V, 3phases | ||||
| Generator Voltage | AC 110V/220V, 1phase | ||||
| Features | With casters with brake | ||||
| Packing | wooden case | ||||
| Warranty | 1 year | ||||
Applications:
Ultrasonic cleaner is a very effecinet cleanig tool for :
engine block degrease,
radiator clean,
electronic parts.
Carburetor
Castings
Fuel Injectors
Machined Parts
Stamped Parts
Switches
Competitive Advantage:
- Material : SUS304/316L with 2mm thickness
- 15 years experience engineer will design the machine for you
- Filtration System: for heavy duty oil removing, cycle cleaning solvent, prevent second polution and
- better cleaning effects.
- PCB Board: manufactured by Skymen factory, more stable

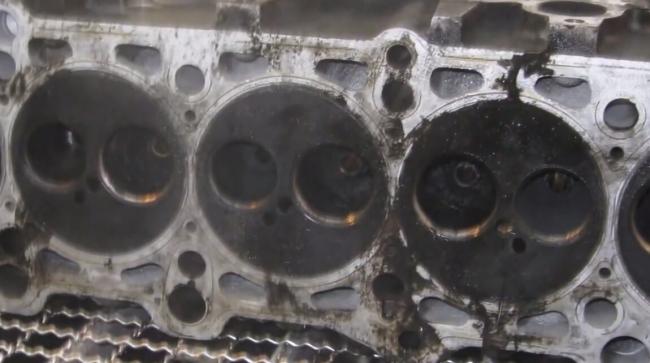

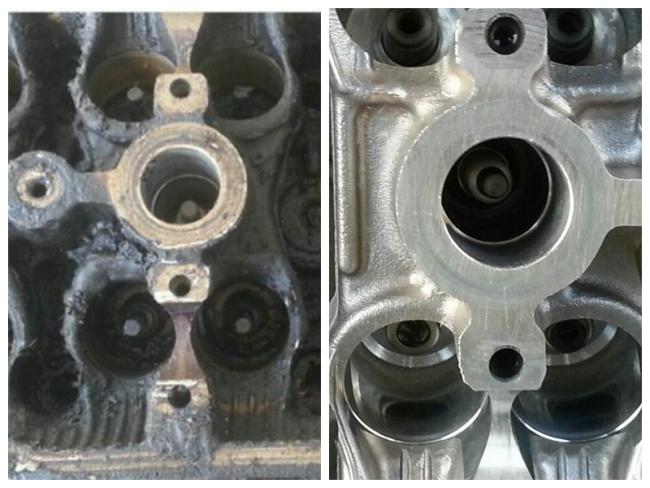

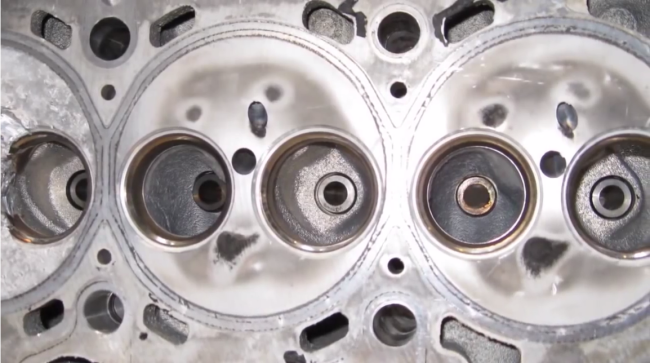

Before and after of use ultrasonic cleaner:
