Machinery Cleaning Equipment Industrial Ultrasonic Cleaner

3600W Ultrasonic Cleaning Machine Aluminum / Stainless / Carbon Steel Tube Cleaned

Price Negotiable
Price: Negotiation
MOQ: 1 unit
Delivery Time: In Stock
Brand: skymen
Product Description

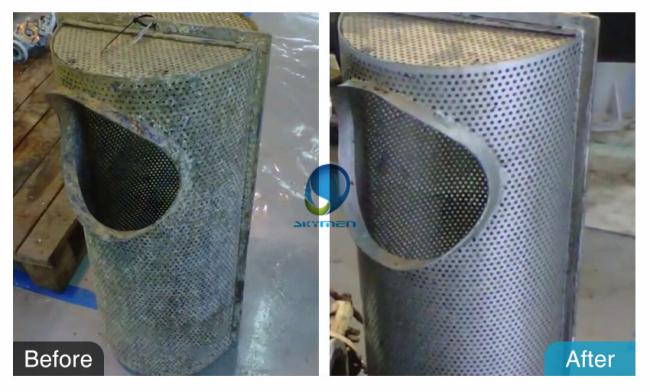

The ultrasonic tank is a good tool to remove the dirt, oil from the interior and external of the tubes.

Competitive Advantage:

  1. Material : SUS304/316L with 2mm thickness. durable and solid
  2. 10 years experience engineer will design the machine for you
  3. Filtration System: for heavy duty oil removing, cycle cleaning solvent,saving cost and time.
  4. polutionand better cleaning effects.
  5. PCB Board: manufactured by Skymen factory, more stable

Ultrasonic cleaning machine :


Model JP-720ST
Ultrasonic Tank Dimension(mm) 3000*500*400 mm
Max. Capacity 600L
Construction Case SUS3164 (Mirror shining image available)
Construnction Tank SUS316
Transducer Number 72 pcs
Ultrasonic power(Max.) 3600W
Ultrasonic frequency 40kHz
Temperature range ~99C adjustable
Heating power 9KW
Timer 1~99h
Drain 3/4" Valve
Lid & Basket Available, material: SUS304
Cleaning Tank voltage AC220V/AC380V 3phase
Generator Voltage AC110V / 220V 1phase
Features

With double tank for cleaning and rinsing.
With filtration system
Multi-direction castors with brake;



Features:

1. stainless steel tank has resistance to wear and long work life.
2. tank capacity:360Liter
3. with Stainless steel basket
4.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
6.with drainage,basket,lid and Multi-direction castors
7. Transducer : Korea techinique
8. PCB board is independent research and development design production by skymen
9. It can applied to clean cast iron, steel, stainless steel, brass, bronze



How to use :

Fill in the tank with water below the maxline;
Power on and swith on the power ;
Put the clean items in ;
Set up time and tempertuare and just walk away

How is ultrasonic cleaner work ?
Cavitation, the collapse of millions of tiny bubbles created by ultrasonic vibrations, releases high energy and enormous cleaning power. This cleaning action gently and thoroughly removes dirt, oil, and contaminants from every surface in contact with the cleaning fluid. Because the liquid can penetrate into very small crevices, ultrasonic cleaning can clean intricate items that cannot be cleaned by hand.


Application:




Package

Packing , loading, delivery time

Packing unit

1set / wooden case

Packing method

Export wooden case

Loading port

Shenzhen / Hongkong

Delivery time

About 20 working days

Minimum Order Quantity

1set

Transport method

By express company / air / sea
