Cylinder Industrial Ultrasonic Cleaner 28/40KHz With 100L Rinsing Tank / Filter

Price Negotiable
Price: Negotiation
MOQ: 1
Delivery Time: In Stock
Brand: Skymen
Product Description

80L Ultrasonic Cleaner for Heavy Grease/oil 28/40KHz With Rinsing Tank and Filter

Specification

ModelJP-2060G
1st Tank Volume99L
2nd Tank Volume99L
First tank size550X450X400mm
Second tank size550X450X400mm
Transducers60pcs  50W of every transducer, 30pcs of every tank
Ultrasonic Power3000W  1500W of every tank
Heating Power6000W  3000W of evey tank
Frenquency28KHz/40KHz
Filtration Cycle System1 set
Generator2 set
Unit size1500*1150*850mm
Packing size1560*1210*970mm
Timer0~99 minutes adjustable
HeaterRoom temperature~99℃ adjustable
MaterialSUS 304 default, can be SUS 316
Power SupplyAC 220V 3 phase ; AC 380V 3 phase
N.W.230KG
G.W.260KG Wrapped by film in wooden case
Lead time18 working days
Warranty1 year warranty period, technique support all time
CertificatesCE, RoHS, FCC, SGS
AdvantageFilter the dirty water; keep the water clear in tank; lower the frequency of changing water


Same series with different size:

ModelSize of every tankTank VolumeUltrasonic
Power
Heating
Power
Transducer
L*W*H (mm)(L)(W)(W)(pcs)
JP-2024G500X300X25038L*2600W*21500W*224pcs
JP-2036G500X350X30053L*2900W*21500W*236pcs
JP-2048G550X400X35077L*21200W*23000W*248pcs
JP-2060G550X450X40099L*21500W*23000W*260pcs
JP-2072G600X500X450135L*21800W*24500W*272pcs
JP-2096G700X500X500175L*22400W*26000W*296pcs
JP-2120G800X600X550264L*23000W*26000W*2120pcs
JP-2144G1000X600X600360L*23600W*29000W*2144pcs
JP-2216G1000X900X600540L*25400W*218000W*2216pcs
JP-2288G12000*1000*800960L*27200W*227000W*2228pcs


Images:

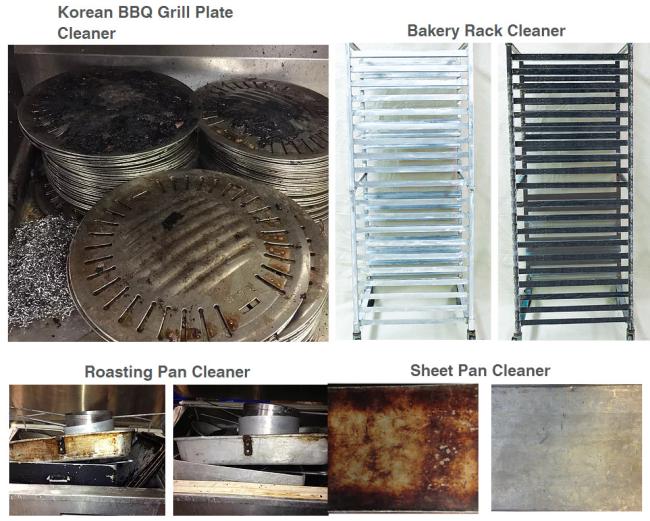

Clean effect:

If you want choose other function,please see the buying guide as below:
1. Choose suitable tank size based on cleaning objects, size can be customized
2. Choose suitable frequency, 40kHz for common use and 28kHz for heavy duty oil removal
3. Choose tank material based on solvent, SUS304 or SUS316L
4. Other function optional, Ultrasonic cleaning tank + Ultrasonic Rinsing tank; Ultrasonic cleaning tank + Air agitation Rinsing tank; Ultrasonic cleaning tank + Water Rinsing tank; Ultrasonic cleaning tank + Hot air drying tank; Oil filtration system: detergent recycle use to save much cost.

RFQ
Q: How to control the cleaning time?
A: Generally, 3minutes is enough for daily goods clean.

Q: Does ultrasonic cleaner damage the articles?
A: Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.

Q: What about after-sale service?
A: our company provides 1 Year warranty. If any technical problem during warranty time, replacement parts will be sent free of charge. After warranty time, technical support is also available for every customer.

Q: What kind of cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the work piece.
