Hardware Fitting Ultrasonic Cleaning Machine 38L Big Power 720W
Hardware Fitting Ultrasonic Cleaning Machine 38L Big Power 720W
BRIEF INTRODUCTION OF MACHINE:
The ultrasonic cleaning machine has a wide range of cleaning applications, mainly used in electronics, machinery, optics, medicine, electroplating, coating, and vacuum coating pretreatment industries. Particularly suitable for cleaning parts with complex surface shapes, such as the cleaning of slits, grooves, deep holes and countersinks on precision workpieces. At the same time, it can clean off the oil, rust and oxide scale on the surface of parts. It is especially ideal for the cleaning of various glassware and internal and surgical instruments in the pharmaceutical industry. Not only can it achieve the purpose of cleaning, it can also crush various microorganisms and pathogens attached to the inner and outer walls of glassware to achieve cleaning, disinfection and sterilization. Role.
Specification:
| Model | JP-120S |
| Ultrasonic frequency | 40,000Hz |
| Material of tank | SUS304 |
| Material of shell | SUS304 |
| Capacity | 30L |
| Drain value | Yes |
| Timer | 0~30 mins adjustable |
| Temperature | 20~80℃ adjustable |
| Power supply type 1 | AC 100~120V, 50/60Hz |
| Power supply type 2 | AC 220~240V, 50/60Hz |
| Ultrasonic power | 720W |
| Heating Power | 800W |
| Tank inner dimension | 500*300*250mm |
| Unit dimension | 585*347*385mm |
| Packing size | 680*455*450mm |
| N.W. | 19kg |
| G.W. | 20kg |
| Certificate | FCC & CE & RoHS & REACH |
Similar models with different capacity:
| Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency |
| (L) | (L*W*H)mm | (W) | (W) | (KHz) | |
| 008 | 0.8 | 150*85*65 | 35 | 0 | 40 |
| 009 | 0.9 | 150*135*65 | 60 | 100 | 40 |
| 010S | 2 | 150*165*100 | 60 | 100 | 40 |
| JP-020S | 3.2 | 240*135*100 | 120 | 100 | 40 |
| JP-030S | 4.5 | 300*150*100 | 180 | 200 | 40 |
| JP-031S | 6.5 | 300*150*150 | 180 | 200 | 40 |
| JP-040S | 10 | 300*240*150 | 240 | 200 | 40 |
| JP-060S | 15 | 330*300*150 | 360 | 300 | 40 |
| JP-080S | 22 | 500*300*150 | 480 | 500 | 40 |
| JP-100S | 30 | 500*300*200 | 600 | 500 | 40 |
| JP-120S | 38 | 500*300*250 | 720 | 800 | 40 |

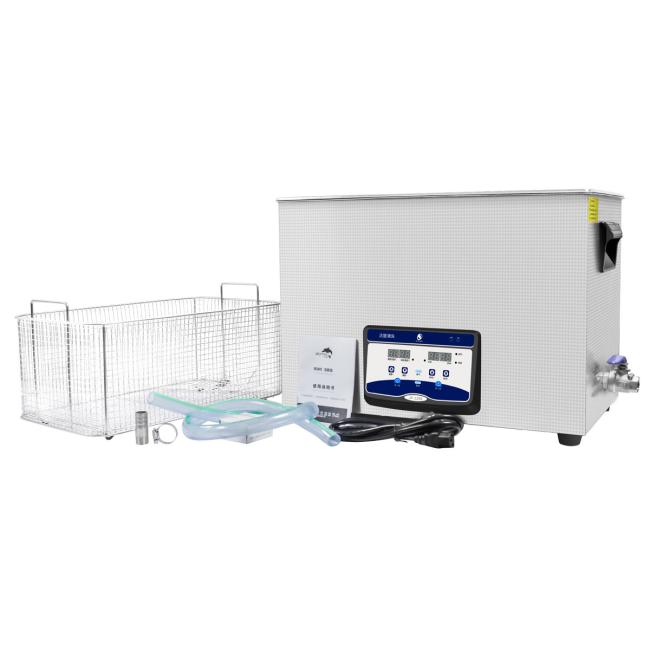

Image:

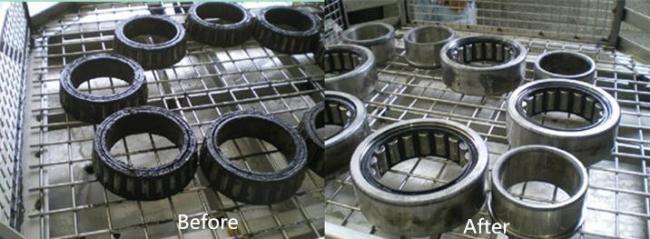

Cleaning effect:
Certificate
Skymen passed Kmart inspected factory on 2015 taken by SGS, and Code of Conduct audit by Birgma, and each year factory audit taken by
SGS,CE, ROHS, ISO9001:2008,FCC, C-Tick, Hi-New Technology Enterprise
