22 Liters 40KHz 480W 5.8 gallon Digital Ultrasonic Cleaner
22L stainless steel bench top ultrasonic cleaner for Auto Parts Fuel Injector PCB cleaning
Specifications:
| Ultrasonic Frequency | 40,000 Hz |

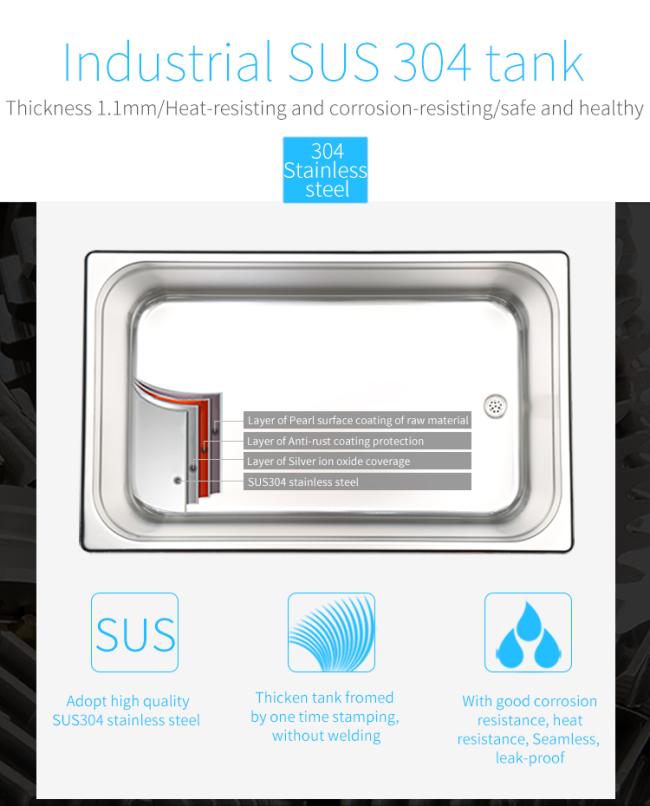

| Material | Stainless Steel SUS304 |
| Tank Capacity | 22 L |
| Timer | 1-30minutes , Digital timer |
| Heater | 20°C to 80°C |
| Power Supply | AC 100 ~ 120V, 50 / 60Hz |
| AC 220 ~ 240V, 50 / 60 Hz | |
| Ultrasonic Power | 480W |
| Heating Power | 500W, Digital Heating |
| Tank Size | 500 x 300 x 150 mm ( L x W x H ) |
| Unit Size | 530 x 335 x 285 mm ( L x W x H ) |
| Package Size | 635 x 405 x 340 mm ( L x W x H ) |
| N.W. | 13kg |
| G.W. | 14kg |
Features:
1. Lower noise.
2. tank capacity:22L(5.8gallon), with Digital timer & heater control
3. with Stainless steel basket
4.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
6.with drainage
7. 1 year warranty and technologe support all life.
Skymen digital ultrasonic cleaner:

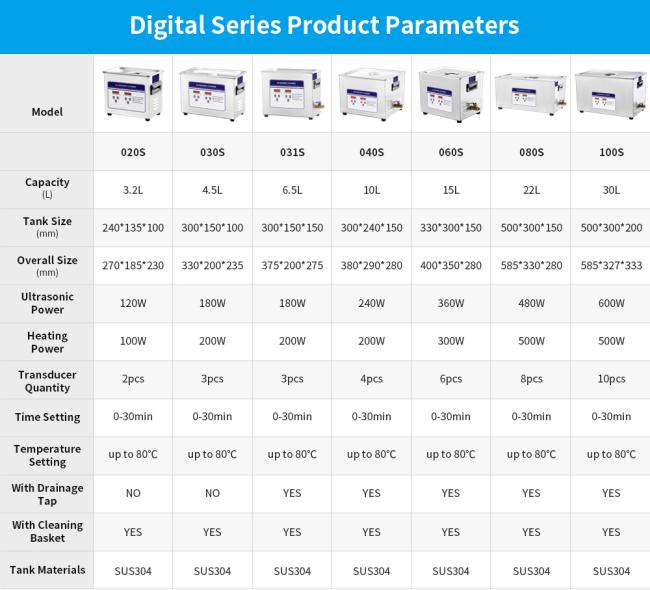

| Digital timer and heater adjustable series | ||||||
| Model | JP-008 | JP-008PLUS | JP-009 | JP-010S | JP-010T | 100S |
| Capacity(L) | 0.8 | 0.8 | 1.3 | 2 | 2 | 30 |
| Tank size(MM) | 150*85*65 | 150*85*65 | 150*135*65 | 150*135*100 | 150*135*100 | 500*300*200 |
| Packing size(MM) | 178*110*130 | 178*110*130 | 175*160*175 | 175*160*210 | 175*160*210 | 530*325*325 |
| Frequency(KHz) | 40KHz | |||||
| Ultrasonic power (W) | 35 | 80 | 80 | 80 | 80 | 600 |
| Heating power(W) | 100 | 100 | 100 | 500 | ||
| Timer(min) | 30min,18 times for option | 30min,18 times for option | 0-60 | 0-30 | 0-60 | 0-30 |
| Heater(° C) | 20-65 | 20-80 | 20-65 | 20-80 | ||
| Tank Material | SUS304 |
|||||

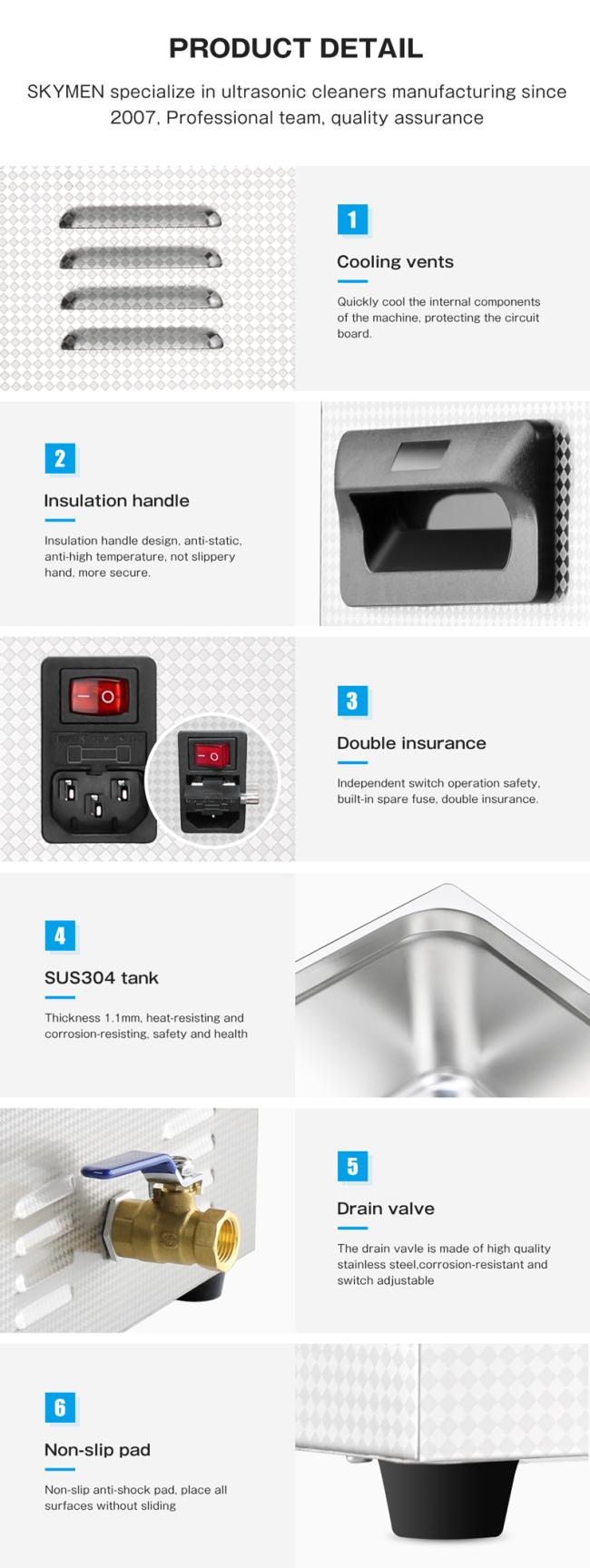

Details:
Features
CE, FCC and RoHS Approved.
Skidproof rubber feet; Durable stainless steel construction.
Ultrasonic cleaning and heating can work at the same time.
Stainless steel tight fitting lid with handle to prevent water heat from diffusing.
High efficiency saves cleaning solvent, thermal energy, work place and labor!
Perfect for cleaning the longhole, finedraw and shelter of piece part or work piece, no need to touch cleaning fluid by hands.
Stainless steel cleaning basket for cleaning some small objects which need less friction, it can reduce the friction between the small objects and the tank.
It is more convenient and efficient than hand wash, steam cleaners, high pressure water jet cleaning or other machines. Just plain tap water is enough, if no special results required.
Other Recommendation
If tank size is not suitable for your spare parts, we have other big ultrasonic cleaner in store. And we can design and produce any special function ultrasonic cleaning machine you need.
6. Packing information and delivery
FAQ:
Q. Can ultrasonic cleaning damage my parts?
No damage to your parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. As ultrasonic jewellery cleaner, it is safe for your jewelry, diamond or other expencive goods.
Q. Why is a special solution required for cleaning?
If no special solution,oil or other dirty adhere to the parts would just fall off the parts! The purpose of the solution is to break the bonds between parts and their oil. Water alone has no cleaning properties.
Q. What cleaning solution should I use?
Modern ultrasonic cleaning solutions are compounded from a variety of detergents, including wetting agents and other reactive components. A large variety of excellent formulations are available, designed for specific applications. For selecting which one solution, you could consult your local solution company and they can give you more professional advice. strong acid and akali is not allowed as cleaning solution.
