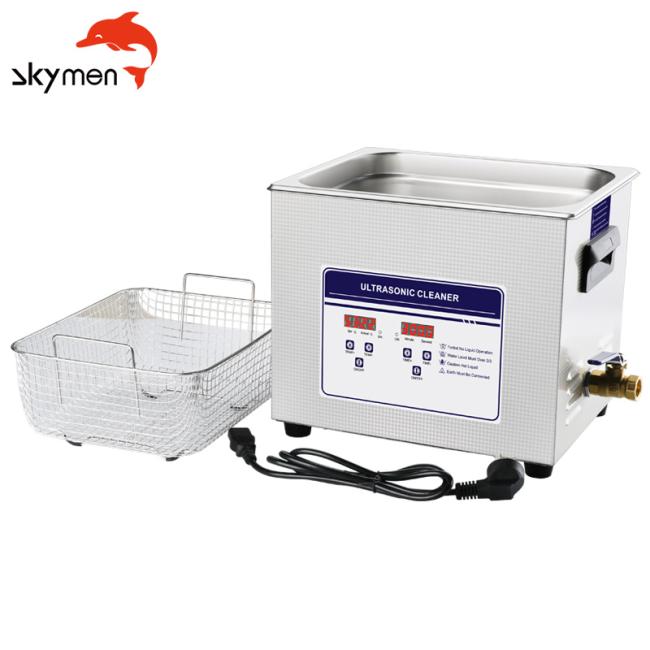

10 Liters 240W Medical Ultrasonic Cleaner SS304 For Instruments
Stainless Steel Tank digital bench top Ultrasonic Cleaner 10 Liter Removing Rust Grease
Specification:
| Ultrasonic Frequency | 40KHz |
| Material | Stainless Steel SUS304 |
| Tank Capacity | 10L |
| Timer | 1-30minutes , Digital timer |
| Heater | 20°C to 80°C adjustable |
| Power Supply | AC 220 ~ 240V, 50 Hz |
| Ultrasonic Power | 240W |
| Heating Power | 200 W, Digital Heating |
| Tank Size | 300 x 240 x 150 mm ( L x W x H ) |
| Unit Size | 380x 290x 280 mm ( L x W x H ) |
| Package Size | 440 x 365x 360 mm ( L x W x H ) |
| N.W. | 7.5 kg |
| G.W. | 8.5 kg |
Features:
- Digital Control display
- More convenient for operation
- Stainless steel tank has resistance to wear and long work life.
- Tank capacity: 6.5L
- Digital timer, clear digital LCD display
- With Stainless steel basket
- Use just tab water, or industrial solvent cleaner for more higher cleaning requirement
- Industrial control chip microcontroller.flexible circuit boards control, more secure & stable
| Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency |
| (L) | (L*W*H)mm | (W) | (W) | (KHz) | |
| 008 | 0.8 | 150*85*65 | 35 | 0 | 40 |
| 009 | 0.9 | 150*135*65 | 60 | 100 | 40 |
| 010T | 2 | 150*165*100 | 60 | 100 | 40 |
| 020S | 3.2 | 240*135*100 | 120 | 100 | 40 |
| 030S | 4.5 | 300*150*100 | 180 | 200 | 40 |
| 031S | 6.5 | 300*150*150 | 180 | 200 | 40 |
| 040S | 10 | 300*240*150 | 240 | 200 | 40 |
| 060S | 15 | 330*300*150 | 360 | 300 | 40 |
| 080S | 22 | 500*300*150 | 480 | 500 | 40 |
| 100S | 30 | 500*300*200 | 600 | 500 | 40 |
Ultrasonic cleaning depends upon cavitation: The rapid formation and violent collapse of minute bubbles or cavities in a cleaning liquid. This activity creates a highly effective and unique penetrating action that blasts dirt from wherever it hides. Nothing cleans faster, safer or more thoroughly.
Following advantages:
· Faster cleaning
· Damage free cleaning
· Increased distribution of ultrasound energy eliminating the standing waves
· Improved cavitation
· Facilitate the ultrasonic wave crossing through the mesh wire basket and the complicated objects to be cleaned
Suggested applications:
1. Scientific lab:Eyeglass Frames,Lab Glassware,Optical &Contact Lenses,Pipettes,Test Tubes
2. Electronics Manufacturing:Capacitors,Ceramic Substrates,PC Boards,Packaging Components,SMDs
3. Medical &Dental Labs,Burs,Blood Oxygenators,Cannulae,Dental Instruments,Syringe Parts
4. Jewelry Manufacturing:Chains,Charms,Coins,Intricate Settings,Precious Metals&Gemstones
5. In Auto Industry:Carburetor,Castings,Fuel Injectors,Machined Parts,Stamped Parts,Switches
Products details:
Main performance characteristics
The washing machine is operated by single chip software.
The cleaning machine's sound reduction cover and cleaning tank are made of high quality stainless steel.
The washing machine has good sealing performance and has sound insulation and heat insulation effect.
Digital display over temperature, over voltage, over current, low water level, no solution protection indication.
Digital memory, setting display ultrasonic working time, ultrasonic power, liquid level (and actual liquid level), heating temperature (and actual temperature).
The cleaning machine circuit has an automatic frequency sweep function, which can generate a continuous pulse jet, which makes the cleaning effect more obvious and the work is more stable.
The cleaning circuit and device are upgraded and matched, and the power conversion rate is high and the reactive power loss is low.
