AC380V 900W Industrial Ultrasonic Cleaning Equipment Multi Tank SUS Rising
Multi-Tank Industry Ultrasonic Cleaning Equiptment Industrial Machine Chinese Factory
Product Description
Multi-Tank Industry Ultrasonic Cleaning Equiptment
Mechanical parts could be well cleaned by the 3 tank cleaning system!
degreasing, chip removal, rust removal, oxide removal, decontamination, etc.
cleaning of various precision machined metal parts.
1st tank work as ultrasonic cleaning;
2nd work as rinsing parts after cleaning.
3rd dry your parts.
|
1
|
Model
|
JP-3120GH (Ultrasonic Cleaning + Filter+ Rising+ Hot Air Drying)
|
|
|
2
|
1st Tank
|
Function
|
Ultrasonic Cleaning + Filter
|
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
|
Tank Material
|
SUS 304 (SUS 316 can be customized)
|
||
|
Inner tank dimension
|
800*600*550mm
|
||
|
Tank Capacity
|
264L
|
||
|
Transducer96
|
pcs
|
||
|
Ultrasonic Power
|
3000W
|
||
|
Heating Power
|
6000W
|
||
|
Time setting of Ultrasonic
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
|
Thickness of tank
|
1mm
|
||
|
Drain value
|
Yes, in the right side of machine
|
||
|
Water inlet/outlet
|
Yes
|
||
|
Filter
|
1 set, connect with 1st tank
|
||
|

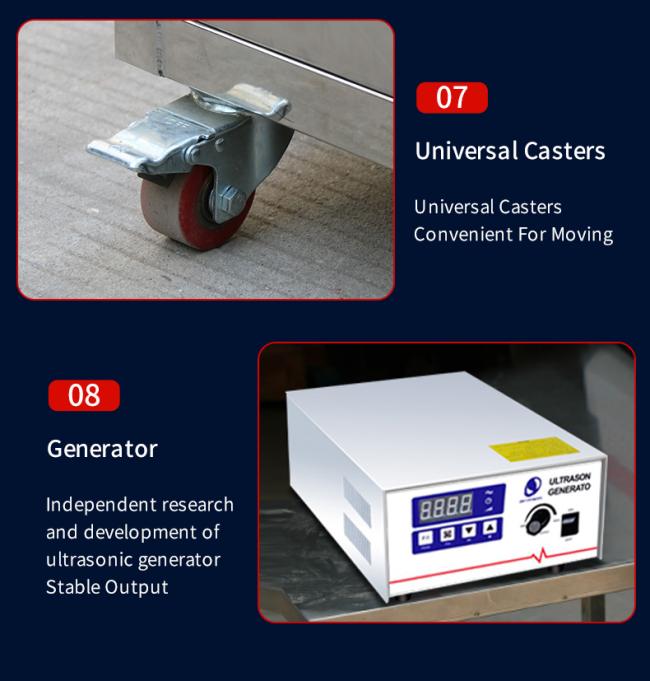

Generator
|
1 set
|
||
|
Lid
|
Yes, hinged with machine body, with gasket
|
||
|
Basket load
|
200KG
|
||
|
3
|
2nd tank
|
Function
|
Ultrasonic Cleaning + Rising
|
|
Inner tank dimension
|
800*600*550mm
|
||
|
Ultrasonic Power
|
3000W
|
||
|
Heating Power
|
6000W
|
||
|
4
|
3rd tank
|
Function
|
Hot Air Drying
|
|
Inner tank dimension
|
800*600*550mm
|
||
|
Dryer Power
|
3000W
|
||
|
5
|
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Production time
|
5 days if there is stock; 20 days if there is no stock
|
|
SIMILAR PRODUCTS
|
Model
|
Tank size
|
Capacity
|
Transducer
|
Ultrasonic power
|
Heating power
|
Frequency
|
Generator
|
|
(mm)
|
(L)
|
(pcs)
|
(W)
|
(W)
|
(kHz)
|
(set)
|
|
|
JP-3024GH
|
500*300*250
|
38
|
24
|
600*2
|
1500*2
|
28/40
|
1
|
|
JP-3036GH
|
500*350*300
|
53
|
36
|
900*2
|
1500*2
|
28/40
|
1
|
|
JP-3048GH
|
550*400*350
|
77
|
48
|
1200*2
|
3000*2
|
28/40
|
1
|
|
JP-3060GH
|
550*450*400
|
99
|
60
|
1500*2
|
3000*2
|
28/40
|
1
|
|
JP-3072GH
|
600*500*450
|
135
|
72
|
1800*2
|
4500*2
|
28/40
|
1
|
|
JP-3096GH
|
700*500*500
|
175
|
96
|
2400*2
|
6000*2
|
28/40
|
2
|
|
JP-3120GH
|
800*600*550
|
264
|
120
|
3000*2
|
6000*2
|
28/40
|
2
|
|
JP-3144GH
|
1000*600*600
|
360
|
144
|
3600*2
|
9000*2
|
28/40
|
2
|
|
JP-3216GH
|
1000*900*600
|
540
|
216
|
5400*2
|
18000*2
|
28/40
|
3
|
|
JP-3288GH
|
1200*1000*800
|
960
|
288
|
7200*2
|
24000*2
|
28/40
|
4
|
Application:
ultrasonic cleaner equipment system with filter system ,Specification of tank dimension are custom made available.Either for big mould or small parts cleaning can receive perfect cleaning efficiency. Stainless steel basket is optional.
Skymen Cleaning Equipment Shenzhen Co., Ltd., which engaged in ultrasonic cleaner field for more than 7 years. Our main products are ultrasonic cleaner with different capacity.
Our company is a famous ultrasonic manufacturer with R&D, production and sales. High quality product and after sales services is available from us.
Not only standard ultrasonic cleaner, any non-standard can be design by our engineer.
Suggestion and drawing is professional for you.
Welcome to visit our factory, provide your precious guidance and conduct business negotiation.
