Industrial Machinery Equipment Screw Drive Air Compressor 30 kw 10 bar 1.0 Mpa
Main Features
Fully seal & double screw,dual shockproof,smooth operation,can be installed anywhere.
♦ With a exquistie shape and compact structure and cover a small area.
♦ Large displacement,stable pressure and high efficiency.
♦ Low exhause temperature (only 7 °C~10°C higher than the ambient temperature)
♦ Safe,liable,smooth operation,little noise and long maintenance cycle and using life.

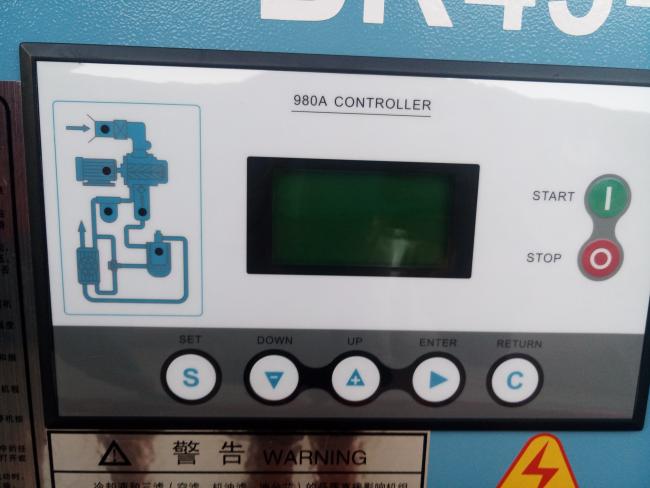

♦ The intelligent control system completely satisfy the continuous cooperation without man work.
♦ Many screw air compressors operate together and start or shut down automatically according to the air amount,and no man-work is needed.
♦ It is more energy saving for a single compressor can adjust air demand automatically according to the users' air amount(frequency conversion type).

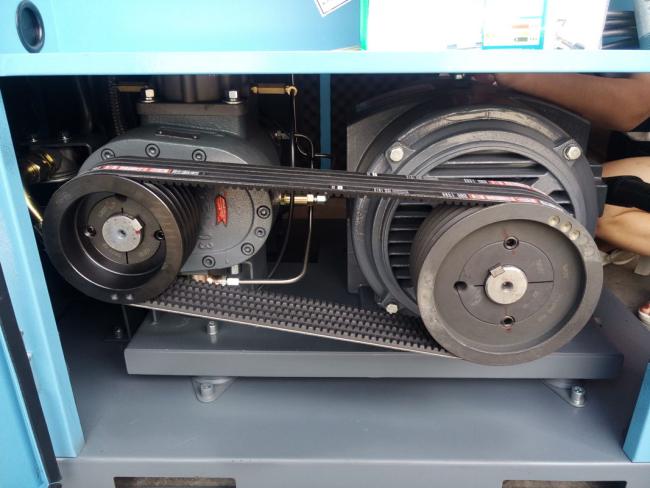

♦ The degree of tightness of the belt can be auto-matched with the flexible belt. Through adjusting the tensility, the loss of the pressure and efficiency can be reduced to the lowest point and increase the time efficiency of pressing.
♦ Narrow belt has higher transmission power with efficency of about 98%.the structure can reduce internal heat and prevent aging. It enjoy Longer service life and much lower stretch ability.
Economic operation
The system adopts stepless capacity regulation of 0-100%. When the gas consumption is reduced, exhaust volume decreases, the motor current decreases at the same time; when no gas, air compressor run empty, empty for too long the automatic shutdown. When the gas consumption increases, the resumption of heavy truck. Energy-saving effect is optimal.
Good environment adaptability
Design of cooling system of extraordinary, especially suitable for high temperature, high humidity environment in asia. Vibration and noise reduction measures excellent, make Silk brand screw air compressor installation without special foundation, just leave the minimum ventilation and maintenance space, can arrange your compressor.
| Model |
pressure Mpa |
Capacity m3/min |
Motor Kw |
Exhaust interface
|
Noise level dB(A) |
Weight kG |
Dimension ( L x W x H ) mm |
| BK11-8 | 0.8 | 1.7 | 11 | G1 | 72 | 370 | 1020 x 820 x1235 |
| BK11-10 | 1.0 | 1.5 | 11 | G1 | 72 | 370 | 1020 x 820 x 1235 |
| Bk11-13 | 1.3 | 1.2 | 11 | G1 | 72 | 370 | 1020 x 820 x 1235 |
| BK18-8 | 0.8 | 3 | 18.5 | G1 | 75 | 500 | 1080 x 880 x 1235 |
| BK18-10 | 1.0 | 2.7 | 18.5 | G1 | 75 | 500 | 1080 x 880 x 1235 |
| BK18-13 | 1.3 | 2.3 | 18.5 | G1 | 75 | 500 | 1080 x 880 x 1235 |
| BK30-8 | 0.8 | 5 | 30 | G1 1/2 | 77 | 650 | 1120 x 930 x 1290 |
| BK30-10 | 1.0 | 4.4 | 30 | G1 1/2 | 77 | 650 | 1120 x 930 x 1290 |
| BK30-13 | 1.3 | 3.6 | 30 | G1 1/2 | 77 | 650 | 1120 x 930 x 1290 |
| BK45-8 | 0.8 | 7.1 | 45 | G1 1/2 | 79 | 820 | 1240 x1030 x 1595 |
| BK45-10 | 1.0 | 6.5 | 45 | G1 1/2 | 79 | 820 | 1240 x1030 x 1595 |
| BK45-13 | 1.3 | 5.6 | 45 | G1 1/2 | 79 | 820 | 1240 x1030 x 1595 |
| BK15-8 | 0.8 | 2.4 | 15 | G1 | 73 | 380 | 1020 x 820 x 1236 |
| BK15-10 | 1.0 | 2.2 | 15 | G1 | 73 | 380 | 1020 x 820 x 1236 |
| BK15-13 | 1.3 | 1.7 | 15 | G1 | 73 | 380 | 1020 x 820 x 1236 |
| BK22-8 | 0.8 | 3.6 | 22 | G1 | 76 | 540 | 1080 x 880 x 1235 |
| BK22-10 | 1.0 | 3.2 | 22 | G1 | 76 | 540 | 1080 x 880 x 1235 |
| BK22-13 | 1.3 | 2.7 | 22 | G1 | 76 | 540 | 1080 x 880 x 1235 |
| BK37-8 | 0.8 | 6.0 | 37 | G1 1/2 | 78 | 730 | 1240 x 1030 x 1435 |
| BK37-10 | 1.0 | 5.5 | 37 | G1 1/2 | 78 | 730 | 1240 x 1030 x 1435 |
| BK37-13 | 1.3 | 4.6 | 37 | G1 1/2 | 78 | 730 | 1240 x 1030 x 1435 |
| BK55-8 | 0.8 | 9.5 | 55 | G1 1/2 | 80 | 1200 | 1540 x 1200 x 1470 |
| BK55-10 | 1.0 | 8.5 | 55 | G1 1/2 | 80 | 1200 | 1540 x 1200 x 1470 |
| BK55-13 | 1.3 | 7.4 | 55 | G1 1/2 | 80 | 1200 | 1540 x 1200 x 1470 |
| BK45-8G | 0.8 | 7.1 | 45 | G1 1/4 | 78 | 970 | 1700 x 1050 x 1255 |
| BK55-8G | 0.8 | 10 | 55 | G1 1/2 | 80 | 1180 | 1790 x 1150 x 1360 |
| BK75-8G | 0.8 | 13 | 75 | G2 | 81 | 1470 | 2000 x 1200 x 1500 |
| BK90-8G | 0.8 | 16 | 90 | G2 | 81 | 1520 | 2000 x 1200 x 1500 |
| BK110-8G | 0.8 | 20 | 110 | DN65 | 82 | 2210 | 2410 x 1300 x 1670 |
| BK132-8G | 0.8 | 22 | 132 | DN65 | 82 | 2370 | 2410 x 1300 x 1670 |
The products provided by us is of 1 year warranty, and on-line service will be supplied by us in time whenever you have any problem or question about the products you want to purchase or have purchased from us.
