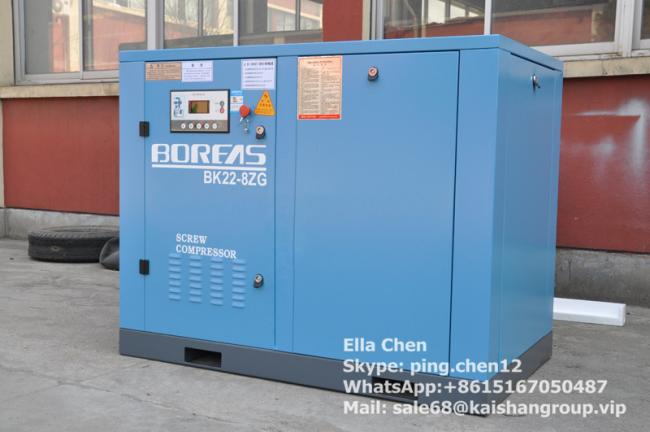

No Belt Rotary Screw Air Compressor 3 Phase 22kw 30hp 0.8Mpa Screw Type Air Compressor
Silk brand BOREAS series stationary screw air compressor
Main Features of BK series air screw compressors
- Class 2 energy efficiency
- Lower noise level, oil free
- Multi power
- America designed made in china
- Advanced electric control operating system
- Low operating cost
- Frequency conversion is available for each air compressor
- Good environmental adaptability
Silk offers complete, high quality, low cost LG series rotary screw air compressors.
They come configured as belt driven (7.5kw -18.5kw), optional gear driven, direct driven(22kw –200kw) with discharge pressures from 0.7Mpa to 1.3Mpa. Water-cooled and air-cooled units are available. PLC is a common feature for the LG series and is included in VSD packages.
1. The built-in oil-separation system:
Using built-in oil-separation design, to ensure that the oil and gas separation effect, reduce the fuel consumption, the product quality from the beginning of the design have sufficient security.
2. High efficiency air inlet valve:
ON/OFF control method
The non-return valve avoid spray oil design
3. A new generation of low power high efficiency motor:
Starting torque big
Insulation class F class, with IP54 protection grade
SKF bearing, low noise, long service life
A refueling device, don't stop also can add oil.
4. Humanized human-computer interface display control system:
Very convenient, simple operation
Running state be clear at a glance
In the unattended under the condition of the 24 hours to work for you
Abnormal factors once appear, prompt maintenance or repair immediately
Leave spare output interface, can achieve more units chain control and remote diagnosis control
And can variable frequency.
| Model | Capacity (FDA) | Working pressure | Power | Net weight | Dimension |
| (M3/min) | (MPa/Bar) | (KW/HP) | (KG) | (mm) | |
| BK11-8 | 1.7 | 0.8/8 | 11/15 | 370 | 1020*820*1235 |
| BK11-10 | 1.5 | 1.0/10 | |||
| BK11-13 | 1.2 | 1.3/13 | |||
| BK15-8 | 2.4 | 0.8/8 | 15/20 | 380 | 1020*820*1235 |
| BK15-10 | 2.2 | 1.0/10 | |||
| BK15-13 | 1.7 | 1.3/13 | |||
| BK18-8 | 3 | 0.8/8 | 18/25 | 500 | 1080*880*1235 |
| BK18-10 | 2.7 | 1.0/10 | |||
| BK18-13 | 2.3 | 1.3/13 | |||
| BK22-8 | 3.6 | 0.8/8 | 22/30 | 540 | 1080*880*1235 |
| BK22-10 | 3.2 | 1.0/10 | |||
| BK22-13 | 2.7 | 1.3/13 | |||
| BK30-8 | 5 | 0.8/8 | 30/40 | 650 | 1120*930*1290 |
| BK30-10 | 4.4 | 1.0/10 | |||
| BK30-13 | 3.6 | 1.3/13 | |||
| BK37-8 | 6 | 0.8/8 | 37/50 | 730 | 1240*1030*1435 |
| BK37-10 | 5.5 | 1.0/10 | |||
| BK37-13 | 4.6 | 1.3/13 | |||
| BK45-8 | 7.1 | 0.8/8 | 45/60 | 820 | 1240*1030*1595 |
| BK45-10 | 6.5 | 1.0/10 | |||
| BK45-13 | 5.6 | 1.3/13 | |||
| BK55-8 | 9.5 | 0.8/8 | 55/75 | 1200 | 1540*1200*1470 |
| BK55-10 | 8.5 | 1.0/10 | |||
| BK55-13 | 7.4 | 1.3/13 |
Our small low price electric motor driven screw air compressor for sale now.
Power range: 11KW, 15KW, 18KW, 22KW, 30KW, 37KW, 45KW, 55KW, 75KW, 110KW.
Working pressure: 8bar, 10bar and 13bar
The products provided by us is of 1 year warranty, and on-line service will be supplied by us in time whenever you have any problem or question about the products you want to purchase or have purchased from us.
