3 Phase 50hz 22kw 10 Bar 30 Hp Belt Screw Drive Air Compressor Single Stage
Instrustion:

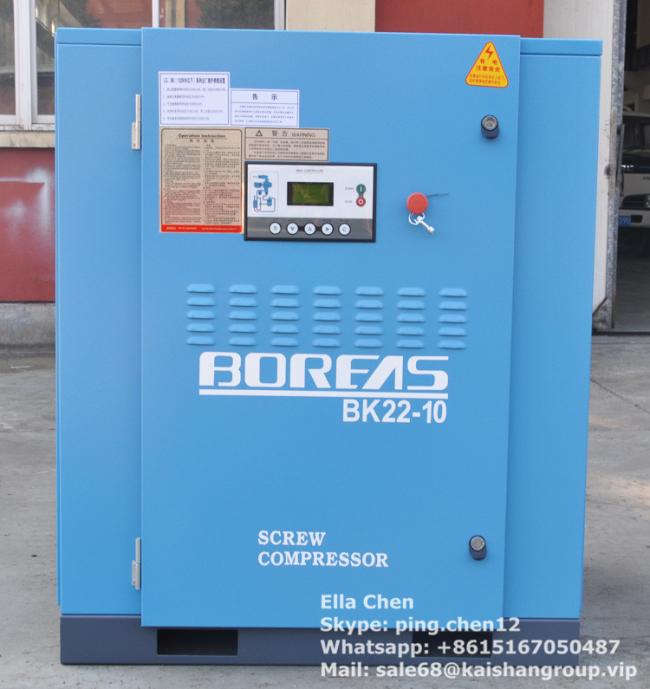

The Boreas(BK) series compressor represent a giant leap in design and performance with each component designed for reliability and ease of maintenance. The compressor is manufactured in compliance with applicable international standards CE,IAF and others and designed as per the international quality standards. These new generation compressor significantly reduce operating costs and provide cost savings with fast return on investment.
The BK series industrial screw air compressor comes configured as belt driven (11kw - 18.5kw), optional gear driven, direct drven(7.5kw - 132kw) with discharge pressures from 0.8MPa to 1.3MPa.
And can variable frequency.
Packaging:
wooden package with shakeproof material
|
Specification for screw air compressor
|
||||
|
Model
|
BK22-8G
|
BK22-8
|
BK22-10
|
BK22-13
|
|
Transmission way
|
Direct driven
|
Belt driven
|
Belt driven
|
Belt driven
|
|
Exhuast Volune
|
3.6m3/min(126cfm)
|
3.6m3/min(126cfm)
|
3.2m3/min(112cfm)
|
2.7m3/min(95cfm)
|
|
Working Pressure
|
0.8Mpa/8Bar/116Psi
|
0.8Mpa/8Bar/116Psi
|
1.0Mpa/10Bar/145Psi
|
1.3Mpa/13Bar/190Psi
|
|
Motor power
|
22kw
|
22kw
|
22kw
|
22kw
|
|
Connector
|
G1
|
G1
|
G1
|
G1
|
|
Noise
|
74
|
74
|
74
|
74
|
|
Weight
|
560
|
540
|
540
|
540
|
|
Dimension (L*W*H)
|
1410*850*1120(mm)
|
1080*880*1235(mm)
|
1080*880*1235(mm)
|
1080*880*1235(mm)
|
Main Features
Fully seal & double screw,dual shockproof,smooth operation,can be installed anywhere.
♦ With a exquistie shape and compact structure and cover a small area.
♦ Large displacement,stable pressure and high efficiency.
♦ Low exhause temperature (only 7 °C~10°C higher than the ambient temperature)
♦ Safe,liable,smooth operation,little noise and long maintenance cycle and using life.
♦ The intelligent control system completely satisfy the continuous cooperation without man work.
♦ Many screw air compressors operate together and start or shut down automatically according to the air amount,and no man-work is needed.
♦ It is more energy saving for a single compressor can adjust air demand automatically according to the users' air amount(frequency conversion type).
♦ The degree of tightness of the belt can be auto-matched with the flexible belt. Through adjusting the tensility, the loss of the pressure and efficiency can be reduced to the lowest point and increase the time efficiency of pressing.
♦ Narrow belt has higher transmission power with efficency of about 98%.the structure can reduce internal heat and prevent aging. It enjoy Longer service life and much lower stretch ability.
Economic operation
The system adopts stepless capacity regulation of 0-100%. When the gas consumption is reduced, exhaust volume decreases, the motor current decreases at the same time; when no gas, air compressor run empty, empty for too long the automatic shutdown. When the gas consumption increases, the resumption of heavy truck. Energy-saving effect is optimal.
Good environment adaptability
Design of cooling system of extraordinary, especially suitable for high temperature, high humidity environment in asia. Vibration and noise reduction measures excellent, make Silk brand screw air compressor installation without special foundation, just leave the minimum ventilation and maintenance space, can arrange your compressor.
