75 KW 12.5m³/Min KSDY-12.5/10 Electric source AC power portable screw compressor
| Model | Working Pressure | Displacement | Motor Power | Weight | Dimension(mm) | ||
| bar | mpa | m³/min | kw | hp | kg | ||
| KSDY-13.6/8 | 8 | 0.8 | 13.6 | 75 | 100 | 1400 | Four wheels |

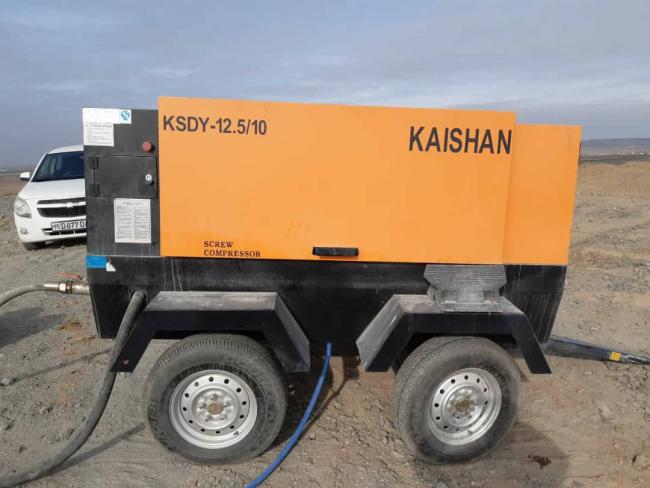

| KSDY-12.5/10 | 10 | 1 | 12.5 | 75 | 100 | 1550 | Four wheels |
| KSDY-10/14.5 | 14.5 | 1.45 | 10 | 75 | 100 | 1880 | Two wheels |
| KSDY-16.5/8 | 8 | 0.8 | 16.5 | 90 | 120 | 1880 | Four wheels |
| KSDY-13/14.5 | 14.5 | 1.45 | 13 | 90 | 120 | 2000 | Two wheels |
| KSDY-13/14.5 | 14.5 | 1.45 | 13 | 90 | 120 | 2400 | Four wheels |
| KSDY-20/8 | 8 | 0.8 | 20 | 110 | 150 | 2400 | Four wheels |
| KSDY-16.5/12 | 12 | 1.2 | 16.5 | 110 | 150 | 2400 | Four wheels |
| KSDY-24/8 | 8 | 0.8 | 24 | 132 | 180 | 2400 | Four wheels |
| KSDY-18/13 | 13 | 1.3 | 17 | 132-2 | 180 | 2400 | Four wheels |
| KSDY-20/17 | 17 | 1.7 | 20 | 160-2 | 215 | 3200 | Four wheels |

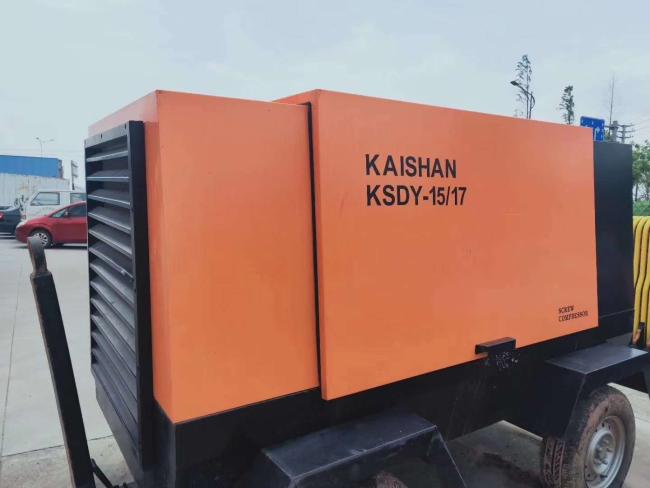

| KSDY-15/17 | 17 | 1.7 | 15 | 132-2 | 180 | 3900 | Four wheels |
| KSDY-20/18-Ⅱ | 18 | 1.8 | 20 | 132-4 | 180 | ||
THE DESIGN FEATURES OF KADY ELECTRIC AIR COMPRESSOR
1. Our single-stage rotary screw airend and rotor is large which allows for bigger bearings, 30%~50% slower rotor speeds results in less power consumption or noise or maintenance cost.
2. One piece bearing housing ensures both rotors are held by the bearings in proper alignment during transient periods such as machine startups/shutdowns or load changes.
3. All of our air compressors have the latest inlet valve, airend air discharge port and oil inlet port design.
4. Lower sound emission level than most of our competitors results in less sound pollution.
5. The axial and rotational loading are supported by different bearings for better stiffness and less transition noise.
6. Simple package design requires only minimum maintenance for optimum performance. Continuous cooling and circulation of lubrication oil, ensures long airend operation life.
