Medium Capacity Recycle Paper Egg Tray Making Machine with Dryer

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: Normally 45-75 days

Brand: NANYA

Product Description

Medium Capacity Recycle Paper Egg Tray Making Machine with Dryer

Specifications:

Model Type	EC700-A	EC1000-A	EC1500-A	EC1900-A	EC2400-A	EC2900-A
Capacity	700pcs/hour	1000pcs/hour	1400pcs/hour	1800pcs/hour	2300pcs/hour	2800pcs/hour
Workshop Requirement	250m²	250m²	350m²	500m²	500m²	600m²
Electricity Consumption	~35kw	~40kw	~70kw	~85kw	~110kw	~140kw
Electricity Installed	50kw	60kw	100kw	130kw	170kw	210kw
Material Consumption	40~45kg/h	55~70kg/h	80~100kg/h	80~100kg/h	130~150kg/h	170~180kg/h
Water Consumption	150~180kg/h	200~300kg/h	300~400kg/h	400~500kg/h	500~600kg/h	600~700kg/h
Worker Requirement	3~4person	3~4person	4~5person	4~5person	4~5person	5~6person
Container Requirement for Shipment	2x 40HQ	2 x 40HQ	4 x 40HQ	4 x 40HQ	5 x 40HQ	6 x 40HQ
Forming Machine (Reciprocating Type)	plate size 1200*400mm 3pcs/time	plate size 1600*400mm 4pcs/time	plate size 1200*800mm 6pcs/time	plate size 1600*800mm 8pcs/time	plate size 2000*800mm 10pcs/time	plate size 2400*800mm 12pcs/time
Drying Line	16x2.2x2.4m 1-Layers	16x2.6x2.4m 1-Layers	26x2.2x2.4m 1-Layers	26x2.6x2.4m 1-Layers	26x3.0x2.4m 1-Layer	30x3.4x2.4m 1-Layers
Remarks: 1. The Capacity calculated base on 30-packed egg tray (size 300x300mm, weight 65g~70g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant .

Details for Egg Tray Lines:

Fully Automatic Egg Tray Production Line, with high automation, save labor cost.
Including pulping system, reciprocating forming machine, dryer, vacuum system, air compressor system.
The raw material is waste paper pulp, recycle paper, waste carton, used newspaper.
Fuel choice for dryer: Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal
Application: egg trays, seeding trays, egg boxes, fruit trays, cup carriers and disposable medical care products.
By changing Moulds, the same machine can make different type of products.

Our Guarantee and More Information:

Machine Glance:

Applications:

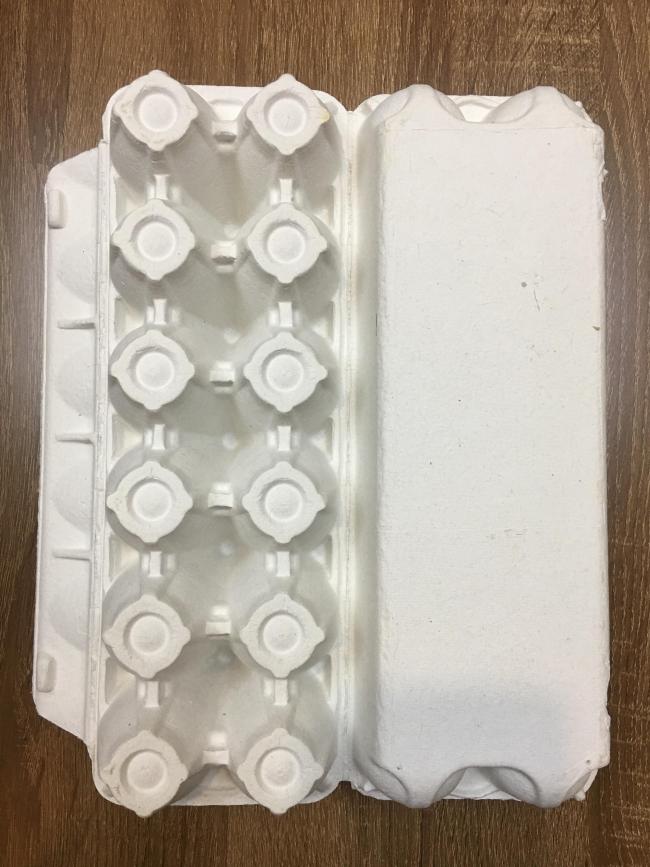

Egg trays / 6 cells egg box / 10 cells egg box / 12 cells egg box;
Fruit trays / cup trays / seeding cups / agricultral cups / shoe tree;
Innner industrial packages, like for TV, fan, battery, air conditioner and other electrical items
Disposable Medical Care Products, like Bedpan, sick pad, urinal pan…

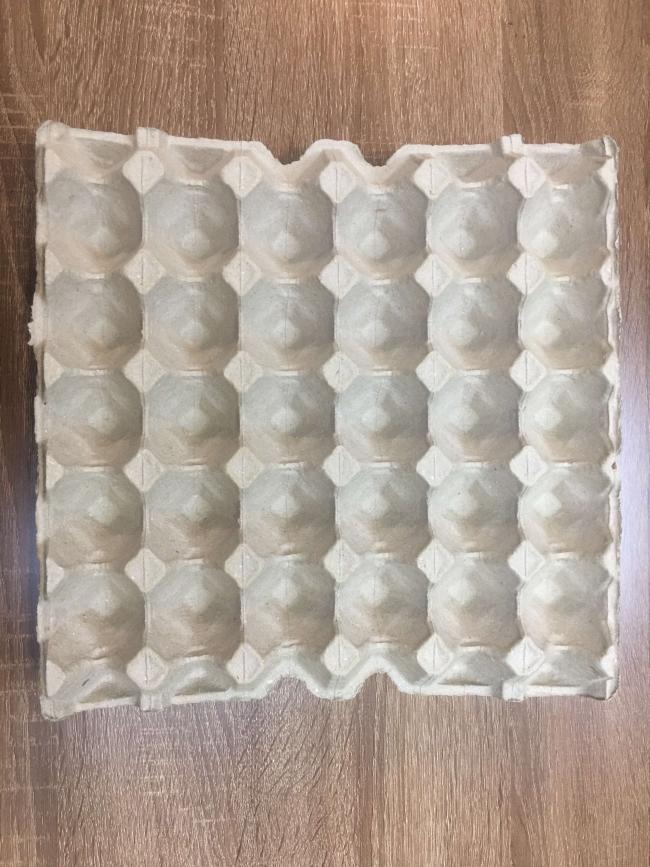

The below is one type of egg tray made by our machine, by changing moulds, the machine can make different products.

Competitive Advantages:

Quality Guarantee: Established in 1994, NANYA has rich experience in this pulp molding field;
Combined with high and new technology with government institution and South China University of Technology, with over 30 R&D personnel;
NANYA offers the widest range of both equipment/machine types and platen/tooling sizes, as well as the comprehensive molds;
NANYA factory covers an area of 40,000 square meters, contributing to more than 60% of the domestic demands, already exported to over 80 countries and regions;
Excellent engineers, sales and after sales service team brings the best service to ensure long-term satisfaction for our customers.
Good Price: We are the factory and we make the machines. The price offered by us is quite honest and fair.
Good Service: We will reply your enquiry and questions within 24 hours.

Business Terms:

Payment Terms	30% down payment before production; 70% balance payment before delivery.
Delivery Terms	FOB Guangzhou, China. (CNF and CIF are also available.)
Delivery Time	45~75 days
Package	Export Standard Packing
Warranty	12 months
Installation	Overseas engineering service is available
Quotation Validity	90 days after the offering date
Aftersales Service	We will send some spare parts for hot press use by free. And we will provide operating manual, drawing, process diagram for all of the machine. We will instruct the operation, maintain method for the buyer’s worker after installation.
