EQUIPMENT DETAILS OF 5082-HD SECURE SEAL TESTER
EQUIPMENT DETAILS OF 5082-HD SECURE SEAL TESTER

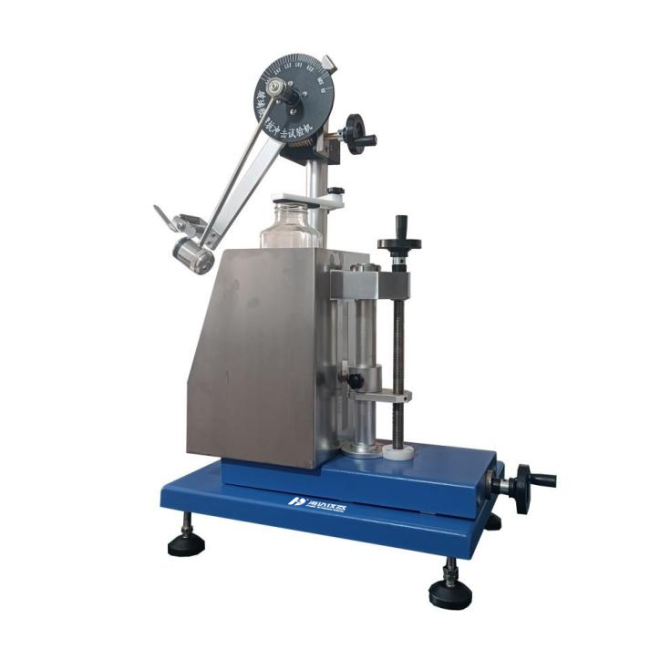

--Picture for reference only
USAGE
The cap sealing tester is used to test the sealing of bottled and canned beverages to prevent air leakage and effectively control the quality of packaging caps. It is suitable for measuring the sealing of PET bottle products, glass bottle products, canned products, and is also suitable for measuring the sealing of crown caps and PET bottle caps separately
STANDARD SPECIFICATIONS
|
Pressurization |
Compressed air or carbon dioxide is used for inflation and pressurization |
|
Positive pressure measurement |
Avoids the deficiency of negative pressure measurement that the pressure is less than 1 bar |
|
Test pressure range |
0-16bar (1.6Mpa) |
|
Material |
Made of oxidized aluminum, stainless steel and plastic materials, strong and durable |
|
The instrument is equipped with a pressure reducing valve inside to easily set the maximum test pressure; |
|
|
Precise flow control, adjustable pressure increase speed, adjustment range: the time to increase the pressure to 1Mpa can be arbitrarily adjusted in the range of 5-60 seconds |
|
|
Many safety features |
Pressure reducing valve, safety valve, barrel cover safety latch, pressure-opening valve (measurement cannot be started without the test bucket), and exhaust holes on the instrument cover for rapid gas discharge (measurement cannot be started without the barrel cover, and pressure is released immediately after the barrel cover is opened) |
|
Pressure gauge division |
0.05Mpa |
|
Pressure gauge display range |
0-1.6Mpa |
|
Maximum size of the measured sample |
330 * 150mm (height* diameter) |
|
Dimensions |
length 320 * width 380* height 720 mm |
|
Net weight |
15 kg |
