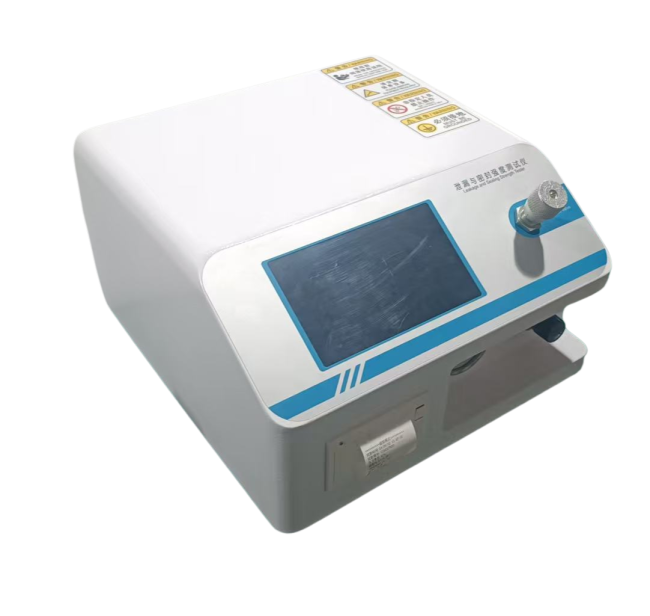

EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER
EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER
PRODUCT DESCRIPTION
The leak burst tester is professionally used to test the comprehensive sealing performance of various soft packages (such as heat-sealed/bonded aseptic packaging, hoses) and bottle caps and bottles. It can quantitatively measure the sealing strength, heat-sealing quality, whole bag bursting pressure, and sealing leakage, analyze the material's compressive and bursting strength, and evaluate the bottle cap's sealing, connection release strength, material stress strength, as well as the bottle's compression resistance, burst resistance, and overall sealing pressure resistance of the hose, achieving all-round reliability verification from edge sealing to connection parts.
DESIGN STANDARD
ASTM F1140, ASTM F2054,ISO 11607-1, ISO 11607-2
TECHNICAL PARAMETERS
|
Item |
Description |
|
Test range |
0.00 ~ 600.00Kpa (standard configuration) |
|
Air source pressure |
0.5MPa ~ 0.7MPa (air source user-provided) |
|
Air source interface |
Φ6 mm polyurethane tube |
|
Dimensions |
400 (L) × 400 (W) × 240 (H) mm |
|
Test seat size |
280mm (L) × 380mm (W) × 380mm (H) (can be customized) |
|
Net weight |
30kg(Including Test Fixture) |
