Comprehensive Textile Testing Equipment for Strength Testing of Single Yarn Made from Natural Fibers Cotton Wool and Jute
Price:
Negotiation
MOQ:
1
Delivery Time:
15 days after order confirmed
Brand:
Haida
Product Description

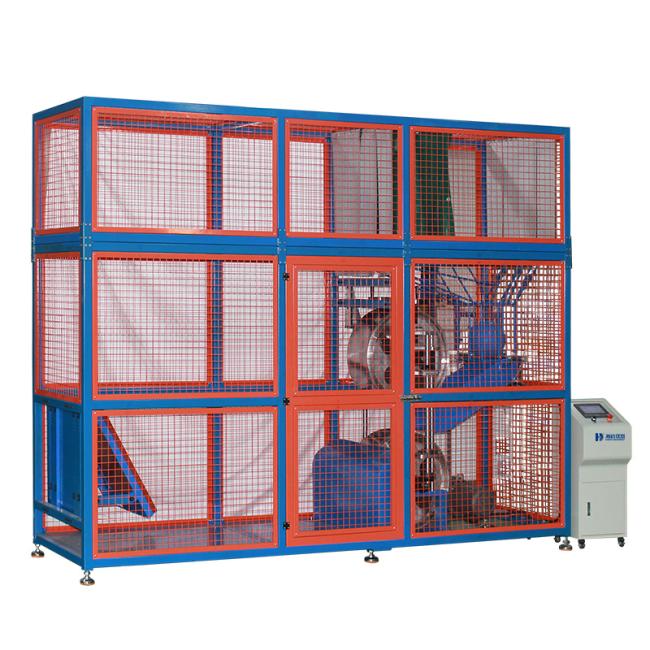

EQUIPMENT DETAILS OF 5142-HD Ball Dynamic Impact Tester
APPLICATIONS
This test is used to assess the dynamic impact resistance of basketballs, soccer balls, volleyballs, and handballs. Two high-speed rotating drums, positioned opposite each other, propel the specimen at high speed through friction and compression. The specimen impacts a rebound plate, which then bounces it back into a receiving funnel. Under gravity, the force transfers the specimen to the launching drums, where it is launched again. After a set number of tests, the pressure changes within the specimen are checked, along with any signs of cracking, implosion, peeling, delamination, thread breakage, or deformation.
STANDARD SPECIFICATION
| Item | Description |
| Drum Dimensions | Center 600mm, Height 250mm |
| Angle between Rebound Plate and Ground | 60°+ 2° |
| Distance between Drum and Rebound Plate | 1950°+ 50mm |
| Impact Distance | 2500°+ 50mm |
| Drum Speed | (340~450) ± rpm |
| Spacing Scale | Minimum graduation 1mm |
| Upper and Lower Drum Spacing | 130~180mm (Adjustable) |
| Display and Control System | PLC + HMI (7-inch Touchscreen) |
| Initial Velocity at Launch Point | ≥50km/h |
| Dimensions | 330*90*2500 cm(W*D*H) |
| Control Box | 37*58*112mm |
| Weight | 1400kg |
| Power Supply | 3phase AC380V,50/60Hz |
