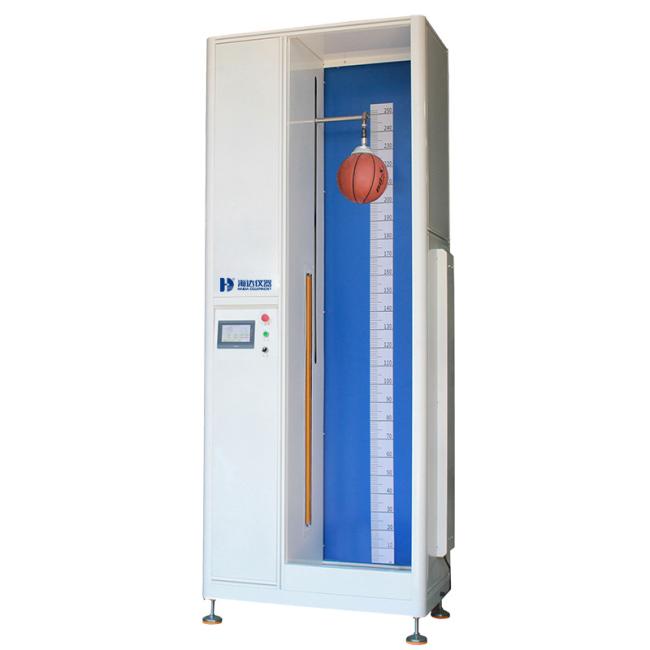

EQUIPMENT DETAILS OF 5143-HD Ball Rebound Height Tester
APPLICATIONS
Used for testing basketballs, soccer balls, volleyballs, handballs, tennis balls, pickles, etc. Simply place your hand under the fixture to test; raise it to a certain distance, let it fall, and measure the height of its rebound.
STANDARD SPECIFICATION
|
Item |
Description |
|
Drop height |
1000-2450mm adjustable |
|
Measurable ball diameter |
50~260mm (replace the suction cup if the size difference is too large) |
|
Measuring range |
300~1600mm |
|
Height adjustment |
Motor driven |
|
Display accuracy |
±10mm |
|
Contact base plate |
Concrete slab |
|
Dimension |
1240x700x3070mm (L*W*H) |
|
Weight |
Approx. 260kg |
|
Power supply |
AC220V/50Hz, 800W |
|
Air supply |
0.5~0.75 MPa,Φ6 mm |
|
Power Supply |
3phase AC380V,50/60Hz |
