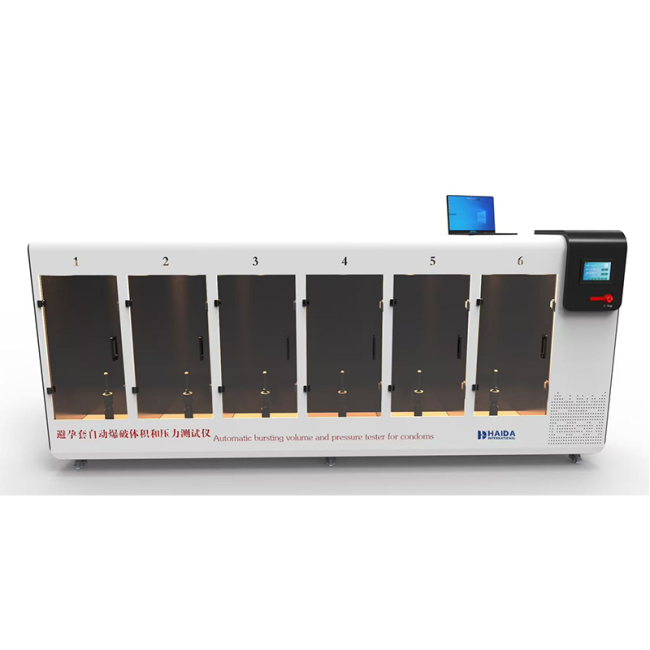

EQUIPMENT DETAILS OF 5105-HD AUTOMATIC CONDOM BURSTING VOLUME AND PRESSURE TESTER
EQUIPMENT DETAILS OF 5105-HD AUTOMATIC CONDOM BURSTING VOLUME AND PRESSURE TESTER
PRODUCT DESCRIPTION
It is applicable to the determination of bursting capacity and bursting pressure volume of various condoms, rubber gloves and other products.
DESIGN STANDARD
GB7544,ISO4074
FEATURES
1. The shell is made of Q235 material and treated with baking paint to prevent rusting;
2. Sampling of test position materials with AL surface anodizing treatment;
3. The foot sampling is made of stainless steel, with good stability and adjustable horizontal function;
4. Observe the sampling of high temperature resistant tempered glass with a thickness of 6MM for the observation door;
5. Independently control the pressure and volume calculation of each workstation;
TECHNICAL PARAMETERS
|
Item |
Description |
|
Test Position |
6 |
|
Bursting Volume |
(0－60) L |
|
Burst Pressure |
(0－15.0)kPa； |
|
Bursting Volume Accuracy |
≤±3.0% |
|
Burst Pressure Accuracy |
≤±0.05kPa |
|
Inflation Rate |
(0.4－0.5)dm3/min, (24－30)dm3/min(automatic adjustment) |
|
Pressure Sensor Pressure Range |
0-30KPA |
|
Rotation Speed |
0-10R/MIN Step-less speed |
|
Position Material |
AL surface anodizing treatment |
|
Air Pressure |
0.4~0.5mpa |
|
Dimension |
3600*650*1500mm |
|
Power |
220V,50Hz |
