UV preconditioning test is an irradiance test that determines how susceptible solar panels are to UV deterioration and, as a result, performance loss. This high condition test is frequently performed before the thermal cycle and humidity freeze tests during solar panel certification and research.
UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
HAIDA
Product Description
Product Description
HD-E802-3

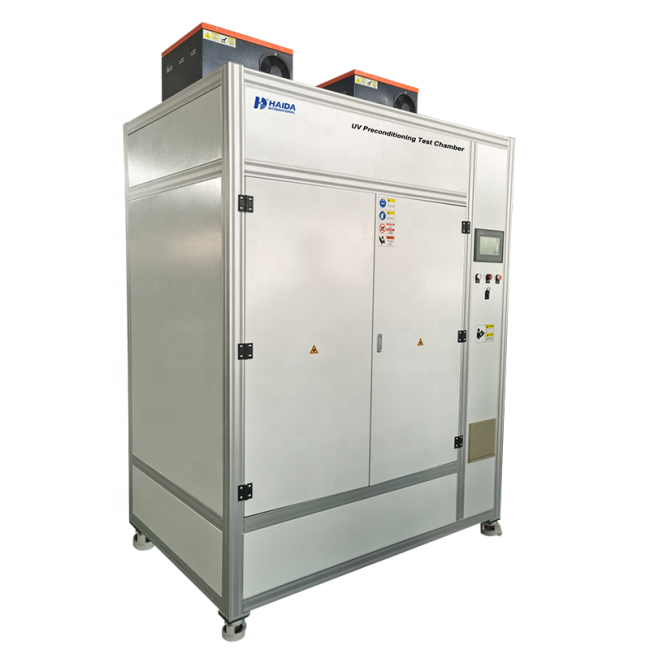

UV Pre-Conditioning Testing Chamber

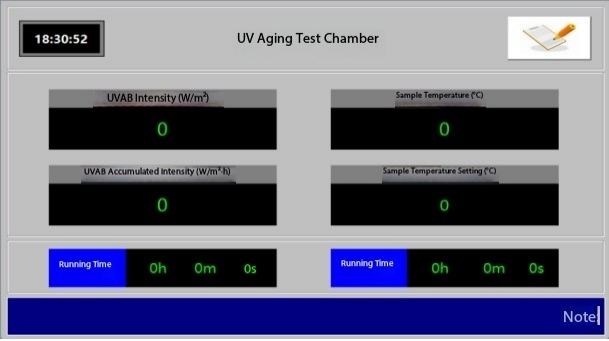

Main Interface

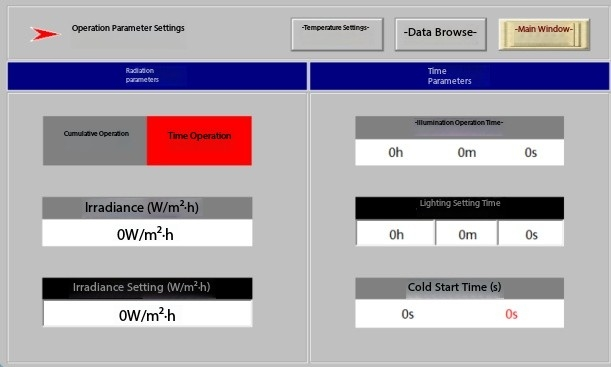

Parameter Settings
Specification
Item | Specification |
Effective Irradiation Area | 900 * 900 mm (Can accommodate 9 pieces of 300*300 mm samples) |
External dimension | Approx.1620*1120*2000mm(L*W*H) |
Irradiance Non-uniformity | Within ±15% |
Measurement Uncertainty | Within ±15% |
Irradiance Ratio | 280~400nm, 3~10% within the 280nm ~ 320nm wavelength range |
Internal Chamber Material | Imported fully reflective silver-coated aluminum plate |
External Chamber Material | Aluminum profile frame |
Cooling Method | Air Cooling |
Control System | PLC + Touch Screen |
Power Supply | AC380V / 50 HZ, Approx. 5 KW |
Software Functions | • Real-time monitoring of UV intensity, component temperature, etc. • System automatically collects and stores data; can export to Excel. • Display on monitoring screen: Temperature parameters, UV Intensity, Accumulated UV Dose, Running Time, Operation Mode, etc. • Specific Display Items: - Ambient Temperature: Temperature inside the chamber. - Component A Temperature: Temperature at point A of the component. - Component B Temperature: Temperature at point B of the component. - UV Accumulated Dose AB: The total accumulated irradiation dose. |

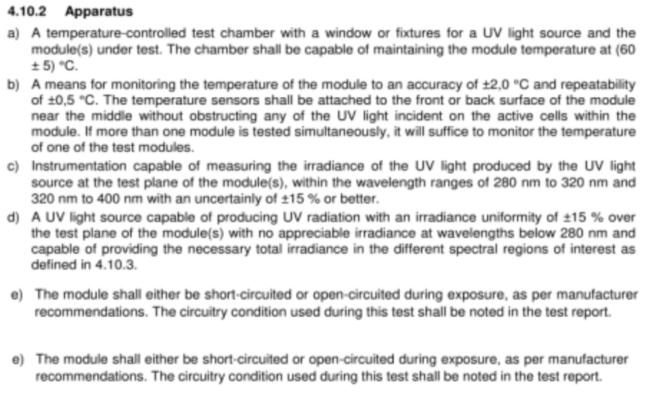

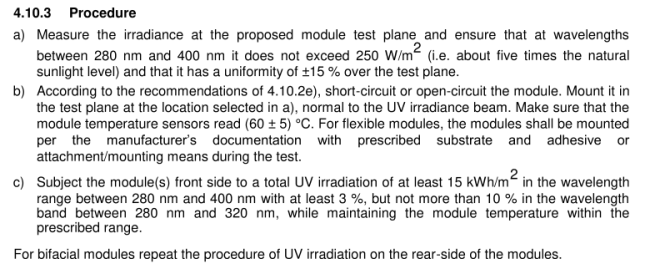

Test Requirements
TEST STANDARD
IEC 61215-2:2021 MQT 10 UV Preconditioning Test
