This product is suitable for national defense, aerospace, automotive parts, electronic parts, circuit boards, lighting products and other products of the sealing performance. in product design stage, using quickly expose the defects and weaknesses of the products. test the resistance to nastiness and air tightness of the products.
HAST High Pressure Accelerated Aging Testing Chamber Corrosion Resistance and Aging Tester Equipment Air Tightness Test Machine
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
HAIDA
Product Description
Product Description
HD-E819

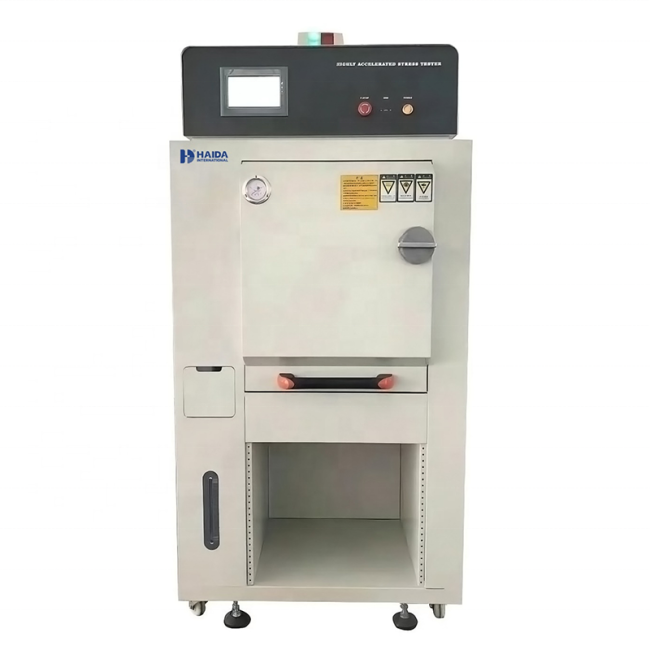

HAST High Pressure Accelerated Aging Testing Chamber
Feature
1. Adopt imported high-temperature solenoid valve double-way structure to reduce the failure rate of use.
2. Independent steam generation chamber to avoid direct impact of steam on product, resulting in local damage to the product.
3. The labor-saving structure of the door lock solves the shortcomings of the difficult locking of the disc handle of the product.
4. Exhaust cold air before the test; The design of the exhaust cold air in the test (air discharge in the test barrel) improves the pressure stability.
5. Ultra-long experimental operation time, 1000 hours of long-term experimental machine operation.
6. Water level protection, through the water level sensor in the test room to detect the protection.
7. The pressure resistance design of the water tank, the pressure resistance of the box body (140°C) is 2.65kg, and the water pressure test is 6kg.
8. Two-stage pressure safety protection device, using two-stage combination controller and mechanical pressure protection device.
9. Safety protection pressure discharge button, emergency safety device two-stage automatic pressure discharge button
10. Full touch controller, support U disk export history
Specification
Items | Description |
Internal dimension | Diameter 400*L500mm; Circular type chamber |
External dimension | Approx. 1150*980*1850mm(W*D*H) |
Internal material | SUS# 316 with thickness 3 mm |
External material | Stainless steel plate material |
Insulation material | Rock wool and rigid polyurethane foam insulation |
Steam chamber heating tube | Titanium tube heating, never rust |
Controller model | PLC control |
Temperature range | +105C~147C (Vapor temperature) |
Temperature fluctuations | ±2C |
Humidity range | 75%~100% (vapor humidity) |
Humidity control stability | ±3%RH |
Humidity distribution average | ±5%RH |
Operating Pressure | 1.2~2.89kg(including l atm) |
Time setting range | 0~999hours |
Pressurization time | From 0.00kg~1.04kg/cm2,approx.45min |
Power supply | Single phase 220V 50/60Hz |
Safety protection | a. Imported high-temperature resistant sealed solenoid valve, using a dual circuit structure to ensure that the pressure is not leaking. b. The whole machine is equipped with overpressure protection, over-temperature protection, one key pressure relief, manual pressure relief multiple safety devices, to ensure the use and safety of users to the maximum extent. c. Counter-pressure door locking device, when there is pressure inside the test chamber, the door of the test chamber can not be opened. |

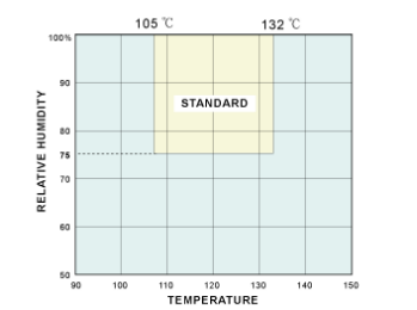

Temp. & Vapor Humid.
