This machine is verify that the PV module is capable of withstanding the impact of hailstones.
Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
HAIDA
Product Description
Product Description

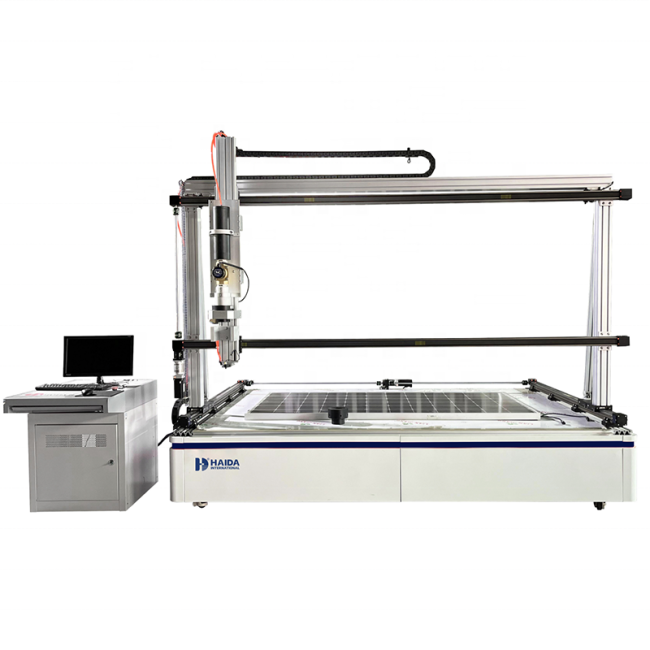

HD-E960
Hail Impact Test Machine
Test Image
Ice Ball Picture
Specification
Items | Description |
Suitable for sample size | 2.4*1.2m |
X shaft move distance | Approx. 2.4m |
Y shaft move distance | Approx. 1.2m |
Locating accurate | ≤1mm |
Impact area | 2.4*1.2m (suitable for different solar panel size in the range) |
Locating control | PC control and automatic locating |
Testing velocity system and theory | A. Ice ball through the infrared test velocity sensor, meanwhile catch Infrared by breaking time T, according to the V=S/T calculation ice ball flight velocity; B. Infrared test speed sensor accurate:±5%; C. The speed catch range:0-50m/s; |

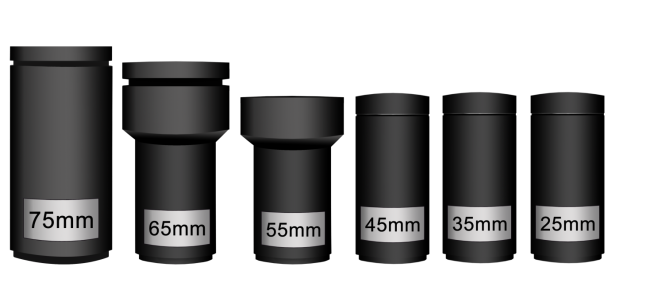

Ice ball mould specifications | A.One mould with 6 ice ball and each ice ball size with 2 sets mould (25mm, 35mm, 45mm ice ball) B.One mould with 4 ice ball and each ice ball size with 3 sets mould (55mm, 65mm, 75mm ice ball) C.The Mould material:Special materials and the ice ball easy take off from the mould D.The Mould process : CNC processing |
System software | Software with Chinese and English Software display the impact point, impact speed, ice ball diameter etc; The testing data can save, inquiry and print; Testing data export is World , Excel, PDF, JPG etc format; |
Machine material | Aluminum profile structure |
Launch device | a.Power source is air compressor; b.Air pressure :6-8bar; c.Ice Ball Single filled by Manual; d.The Barrel length approx 940mm; e.The barrel can change; f.The guide ways is high quality import guide rail; g.Driving ways adopt import servo motor+synchronous wheel; |
Test standard | IEC61215-2:2021 MQT 17 Hail Test |
Ice Ball Diameter, Mass and Speed
Diameter(mm) | Mass (g) | Speed (m/s) | Diameter(mm) | Mass (g) | Speed (m/s) |
25 | 7.53<5% | 23.0±5% | 35 | 20.7<5% | 27.2±5% |
45 | 43.9<5% | 30.7±5% | 55 | 80.2<5% | 33.9±5% |
65 | 132.0<5% | 36.7±5% | 75 | 203.0<5% | 39.5±5% |
