This machine will offer a near natural light source under the certain area, the light source class is BBA, It’s main used for large area PV module aging testing
Hot Spot Endurance Testing Chamber / BBA Steady Sun Simulator Natural Light Photovoltaic Module PV Aging Tester Machine Equipment
Price:
$45,960-58,999 / set
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
HAIDA
Product Description
Product Description
HD-E905
Hot Spot Endurance Test Machine/BBA Steady Sun Simulator
Specification
Light source | 4pcs, lamp import from Germany (The light source is core components, meanwhile is consumables;) |
Radiation intensity | 800～1200W/m²(adjustable) (single light source system can real-time signal output to the collector) |
Wave band | 400~1200nm |
Spectral Matching Degree | Class B |
Irradiation inhomogeneity | Class B |
Instabilities | Class A |
Radiation area | 2.4m*1.4m for 4pcs light source to placed 1 pv module |
Light source hang system | Light source hang system: upper hang ways: the main frame use high strength , and easy to move’s aluminum profile structure, between every lamp’s space can adjustable, debugging finished after, light source distance PV module’s distance approx 1.5m |
Light Method | Upper light, this is easy to place PV module |
Irradiation introduction | The sensor use thermoelectric effect principle, sense components adopts winding plated multi-contact thermopile, Its surface is coated with a black coating with high absorptivity. hot junction on the sensing surface ,The cold nodes are located in the inner chamber, cold and hot junction produce the temperature difference potential, within linear range, The output signal is proportional to the solar irradiance. In order to reduce temperature’s effect , will matched the temperature compensation circuit, In order to prevent the influence of environment on its performance, will use 2 layer quartz glass cover, the quartz glass cover is via precision optical cold process grinding produce |
Sensitivity | 7～14μV/W/M2 |
Response time | ≤30s(99%) |
Inner resistance | Approx. 350Ω |
Stability | ±2% |
Cosine response | ≤±5%(When the sun's altitude angle is 10 degrees) |
Temperature characteristic | ±2%(-20℃～+40℃) |
Nonlinear | ±2% |
Testing range | 0～2000W/m2 |
Signal output: | 0～20mV |
Fan cooling system | Temperature control 50±10℃ |
PID control | PID automatic temperature compensation control |
Controller | Mitsubishi |
Data acquisition and processing | First the data collector as ≤5s/times speed grasp irradiation sensor and temperature sensor as simulate signal ways high speed transfer come data, data acquisition after , then transferred to the data process unit to analysis and calculation, then as data and curve’s ways present to the final user and storage to the data base |
System Special function | a. System protection function: current overload protection, temperature overload protection, leakage electric protection b. Cut off power memory function: cut offer power after, recover electricity can continue to testing c. 2.3.3 System support Chinese and English language , the interface can change each other 2.3.4 Support data storage, history information query, data export/print, the report can save to the Word, Excel, PDF JPG etc format |
Environmental installation requirement | Running environment: standard lab environment, temperature 25±2℃, humidity:60％ |
Power | Three-phase, 380V, 50Hz Power approx:35KW |

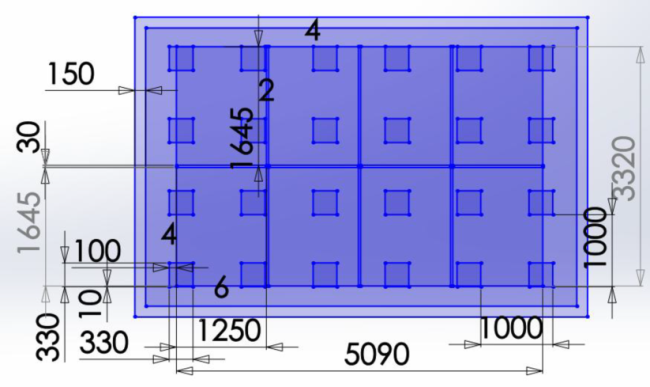

Light source array distribution

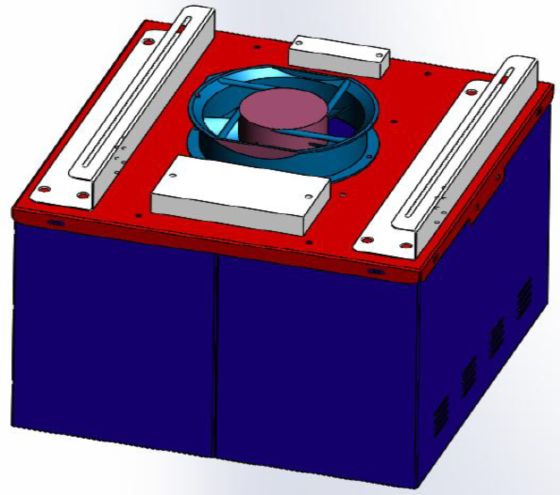

Single group light source

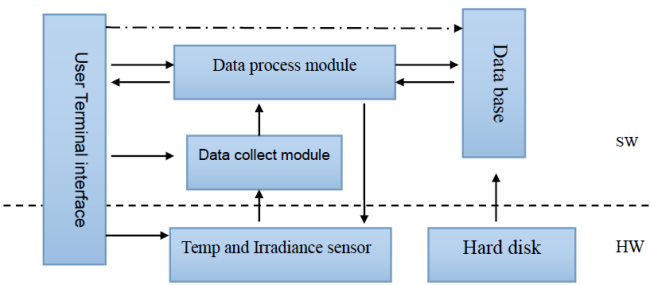

System structure
This system is structure established on the pv module BBA steady state sun simulator testing platform, service to the pv module BBA steady state sun simulator data acquisition and result processing software

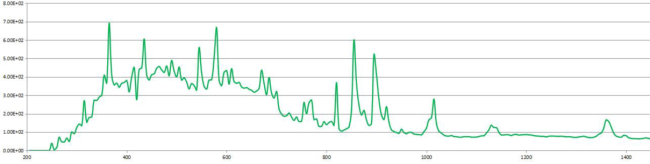

Spectral curve
