Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
HAIDA
Product Description
Product Description

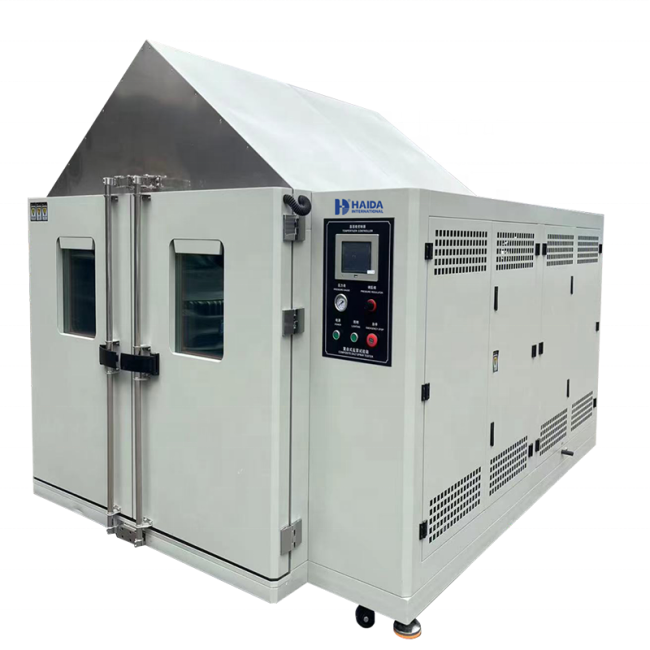

HD-E808-4C Cyclic Salt Spray Room
PRODUCT FEATURES

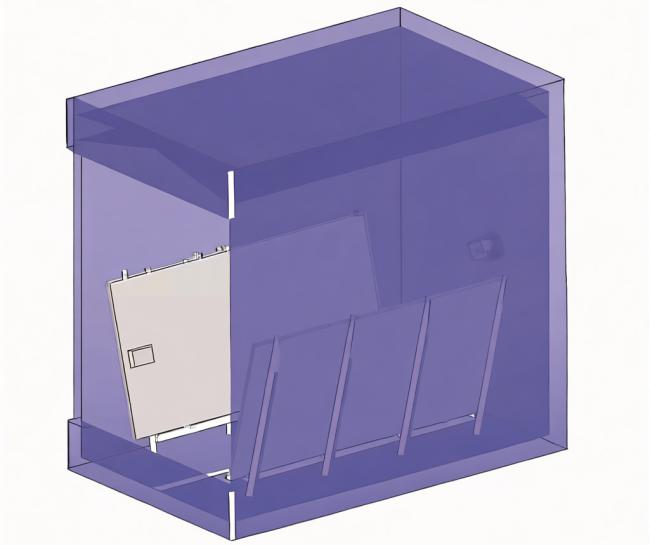

1, Double layers sample placing design to improve the usable area of internal chamber.
2, Adopt high precision temperature and humidity controller for temperature, humidity and drying tests.
3, Two poles air inlet decompression to ensure stable spray pressure.
4, Spray tower has conical disperser to lead and adjust the uniformity and dripping volume of salt fog.
5, Perfect safety protection device with audio alarm and auto stop function.
6, Have saturate process for spray compressed air to ensure stable test environment and prevent nozzles from block.
7, With time controller for auto power off when setting time arrive.

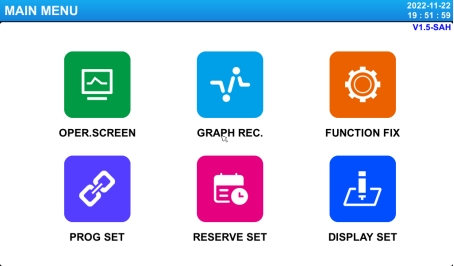

PLC Controller
Specification
Model | HD-E808-4C |

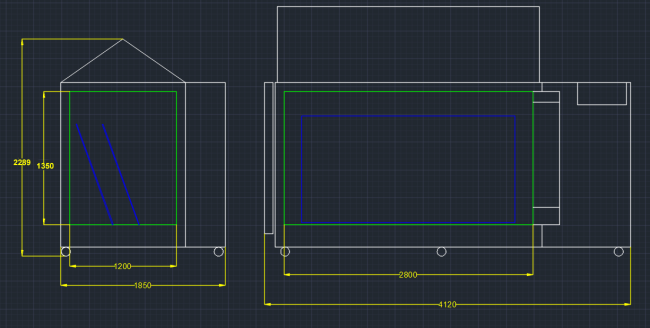

Internal size (L*W*H) | 1200*2800*1350m |
External size (L*W*H) | 1850*4120*2289mm |
Lab volume | 4540L(Not include top sloping roof capacity) |
Suitable for sample | 2400*1200mm PV module with 2 pieces |
Saturated Tank Temperature | Ambient ~60℃ |
Chamber Temperature | Ambient ~60℃ (No humidity if temp. below +25℃) |
Chamber Temperature fluctuation | ±2℃ |
Chamber Temperature Uniformity | ±0.5℃ |
Humidity range | 30% ~ 98% |
Temperature fluctuation | ±3%RH |
Salt spray test | Concentration of salt solution: 5% Spray quantity: 1.0~2.0 ml / hr / 80cm2 PH value: 6.5~7.2 (at ambient temperature) |
Spraying method | Continuous and Periodic spray type |
Multiple safety protection devices | Over pressure protection, over temperature protection, over load fuse protection |
Air source | 2.5HP Air pump, pump capacity with 60L or above (provided by buyer) |
Power supply source | Three-phase, 380V±10%, 50/60Hz |
Test Type | NSS,ASS,CASS |
Test Standard | IEC 61701:2020(according IEC 60068-2-52:2027) ASTM G85; ASTM B117; Test Standard ASTM G85 |
Item | Specification |
Internal chamber | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
Chamber cover | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
Saturated barrel | High temperature and corrosion resistance, equipped with water level indicating device |
Heating system | Titanium electric heater, corrosion resistance |
Blower | Multi-blade blower |
Water pump | Corrosion resistant pump |
Solenoid valve | JPA series |
Sample shelves | Test Angle: 15° ~ 30°, adjustable |
Viewing window | Double vacuum organic glass |
Controller | PLC controller, touch screen |
Water supply | Adopts automatic water charging system for long time operation. |

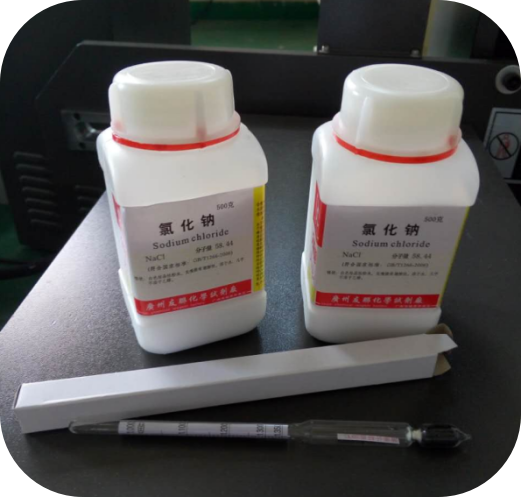

Sodium chloride (testing salt)

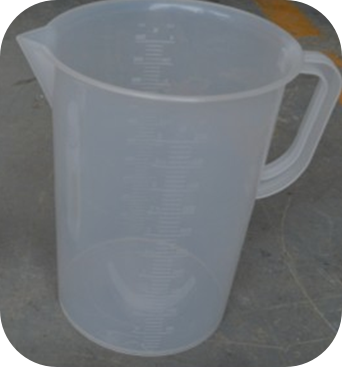

Measuring tank

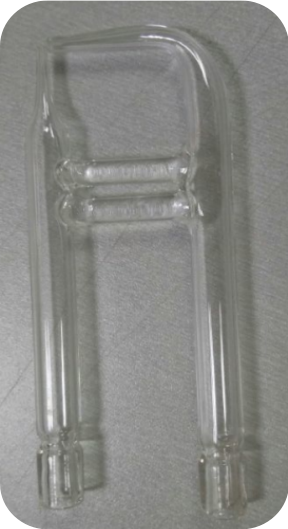

Spray Nozzle

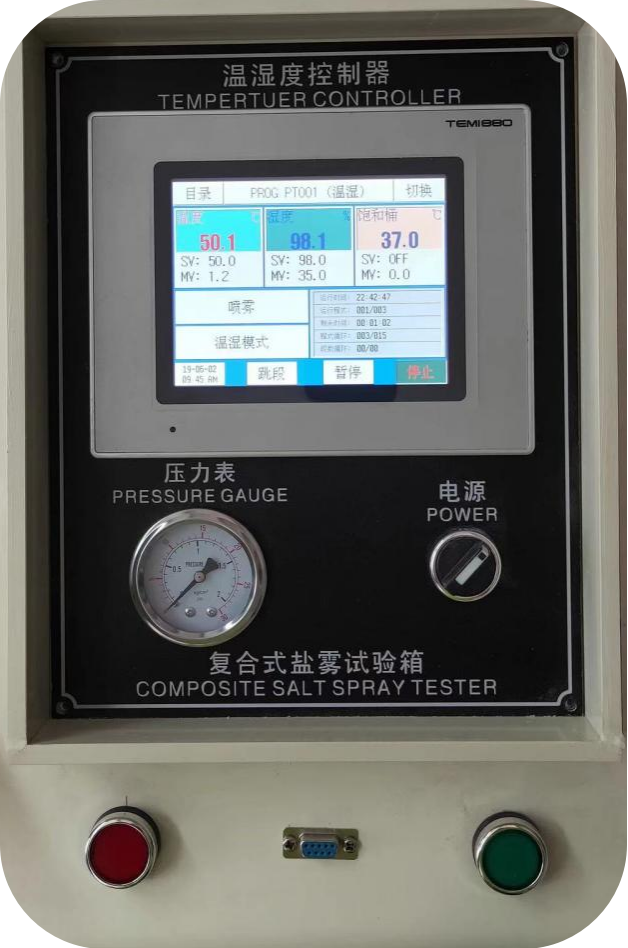

Controller
