Lab PV Salt Spray Tester Salt Spray Corrosion Testing Chamber Machine Photovoltaic Module Salt Spray Aging Testing Equipment

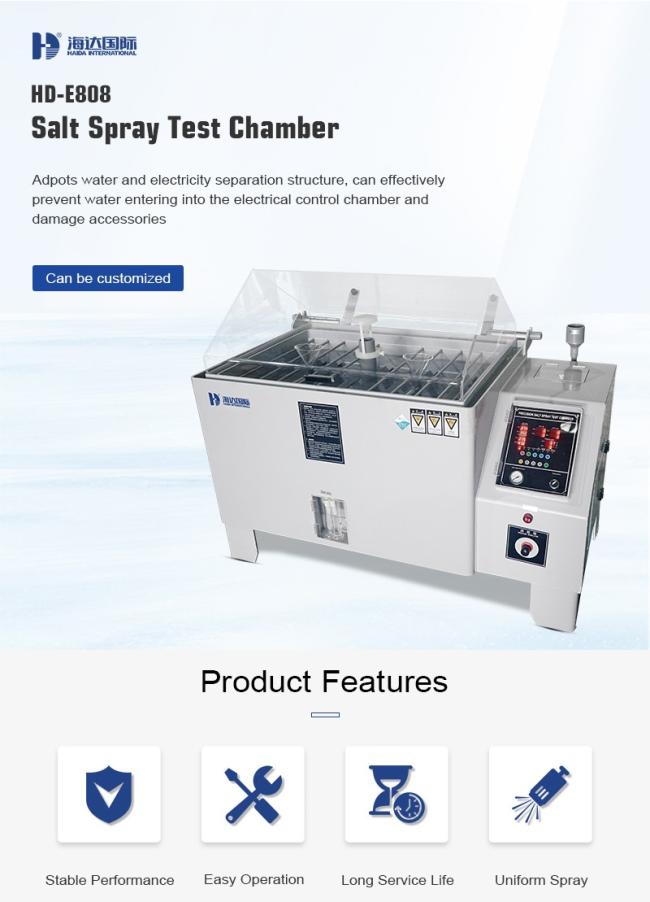

PV Salt Spray Corrosion Test Chamber
Lab High Configuration Salt Spray Corrosion Test Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Technial Parameters
|
Model |
HD-E808 |
|
Inner Box Size (L*W*H) |
60*45*40 cm (Can be customized) |
|
Outside Box Size(L*W*H) |
107*60*118 cm (Can be customized) |
|
Equipment Material |
Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board |
|
Temperature Range |
RT+5°C~55°C |
|
Temperature Fluctuations |
≤±0.5°C |
|
Temperature Uniformity |
≤±2°C |
|
Temperature Precision |
±1°C |
|
Test Chamber Temperature |
Salt Spray Method (NSS ACSS)35±1°C |
|
Saturated air Barrel Temperature |
Salt Spray Method (NSS ACSS)47±1°C |
|
Brine Temperature |
35°C±1°C |
|
Spray Quantity |
1.0~2.0 ml / 80cm2 / hr |
|
PH |
Salt Spray Method (NSS ACSS6.5~7.2) |
|
Lab Volume |
108L (Can be customized) |
|
Brine Tank Capacity |
15L |
|
Power |
1#, AC220V,10A |
|
Multiple Safety Protection Devices |
Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
|
Accessories |
Testing Salt/ Measuring tank/ Equipment each 1 set |
|
Standards |
CNS: 3627, 3385, 4159, 7669, 8886; |
Control system
- Temperature control:Control the chamber temperature, according to standard, salt test is 35°C, and corrosion test is 50°C.
- Saturated air barrel temperature controller:Control the saturated air barrel temperature, salt test is 47°C, corrosion test is 63°C.
- Timer:Adjustable, can set the time in 0.1s~9999hr free, shut down automatically when the time is over.
- Running timer:Direct read 0-9999.9hr, record the whole work hours.
- Heat sink temperature controller:Control the temperature of heat sink, Controller with temperature control of the testing machine laboratory environmental temperature changes around the difference is too large, also need to meet the adjustments, the setting method in the control box.
- Salt test :Chamber temperature set 35°C, heat sink temperature set is 47°C(40°C-50°C).
