1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
HAIDA
Product Description
Product Description
8089-HD

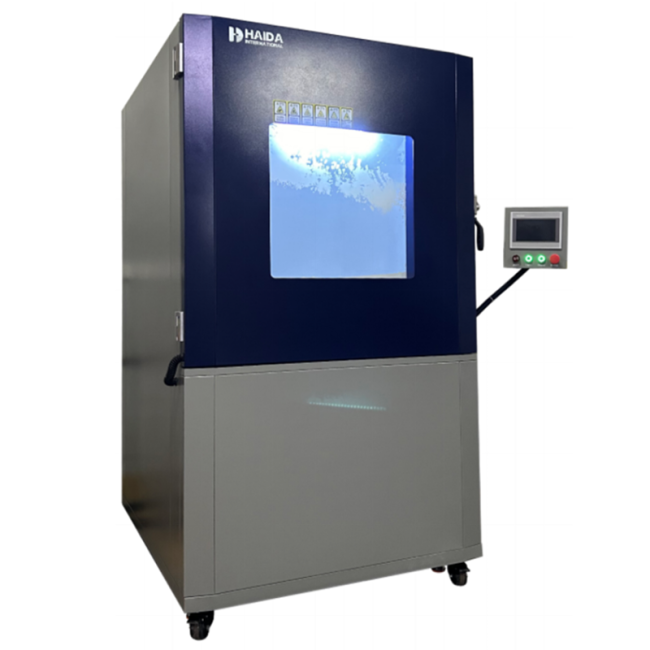

Bypass Diode Dust Test Chamber(IP6X)

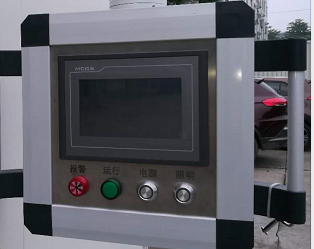

Control panel

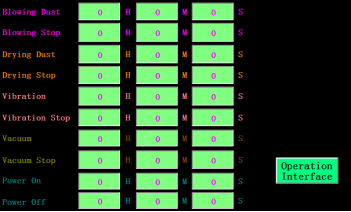

PLC operation interface

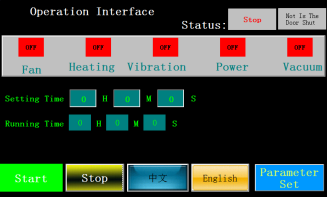

PLC operation interface
Specification
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1700*1500*2200mm
Power supply source: 3-phase, AC380V±10%,50Hz (can be appointed)
Gross Weight: 400kg
HS Code: 8479899990
Item | Specification |
Model | 8089-HD |
Internal dimension(W*D*H) | 800*800*800mm |
External dimension(W*D*H) | 1300*1100*1800mm |
Internal material | SUS304 Stainless steel |
External material | Spray Paint Type |
Specifications of square mesh sieve | Mesh hole 75um, mesh metal wire diameter 50um |
Talcum powder amount | 2kg/ m³ |
Airflow speed | No more than 2m/s |
Door | Left open door with tempered glass door |
Controller | PLC Touch Screen controller, programmable to set as below cycle: a. Blowing dust time (Stop/Blow) m/s b. Cycle time: can be adjusted c. Pre-set test time: 0s ~99m99s |
Vacuum system | Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
Vacuum pump capacity | 60-600 L/H |
Fan | Centrifugal fan |
Safety protection devices | Meter over-temperature function, Phase shortage protection, Power short-circuit protection |

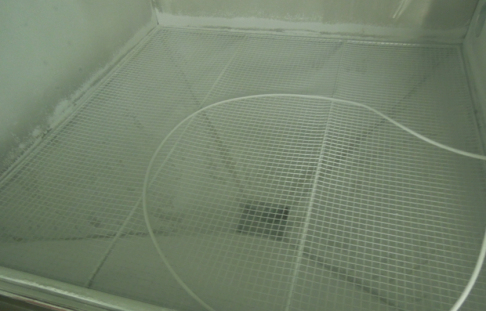

Internal chamber with sample tray & Hopper for dust collection

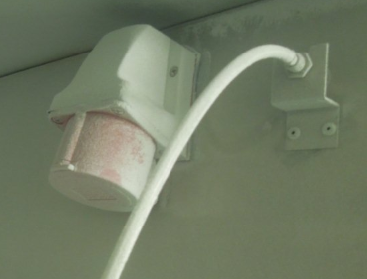

Anti-dust socket for sample connect to power source
Mesh and parts for filtering test dust

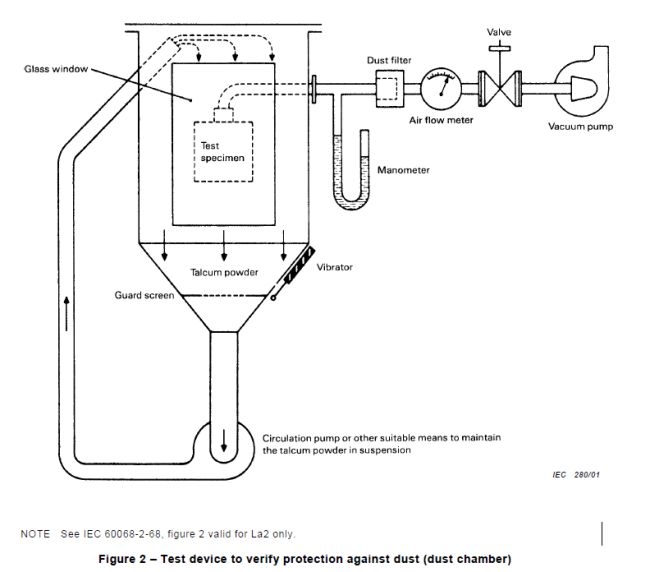

DESIGN DRAWING AS PER IEC60529 & IEC20653
