Professional Rain Spray Test Chamber Ingress Protection Test Equipment IP Tester
Price:
Negotiation
MOQ:
1 set
Delivery Time:
20 days after order confirmed
Brand:
Haida
Product Description
Professional Rain Spray Test Chamber Ingress Protection Test Equipment IP Tester
GENERL SPECIFICATIONS
Packaging Dimensions: (W*D*H) 1600*1400*2000mm x 2
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 560kg
HS Code: 8424899909
STANDARD FEATURES
| Item | Specification | |
| Internal chamber size(W*D*H) | 1000*1000*1000mm(can be customized) | |
| External chamber size(W*D*H) | 1400*1200*3500mm | |
| IP Code | IPX5 | IPX6 |

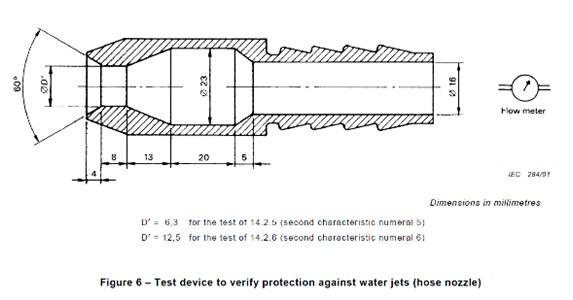

| Internal diameter of the nozzle | 6.3mm | 12.5mm |
| Delivery rate | 12.5l/min±5% | 100l/min±5% |
| Core of the substantial stream | Circle of approximately 40mm diameter at 2.5m distance from nozzle | Circle of approximately 120mm diameter at 2.5m distance from nozzle |
| Chamber material | Internal: SUS304 stainless steel, external: stainless steel | |
| Test duration per square meterof enclosure surface area likely to be sprayed | 1 min | |
| Minimum test duration | 3 min | |
| Controller | PLC touch screen | |
| Distance from nozzle to enclosure surface | Between 2.5m and 3m | |
| Sample rotatory table | Diameter 500mm, rotation speed adjustable | |
| Power | AC380V, 50Hz, three phase | |
