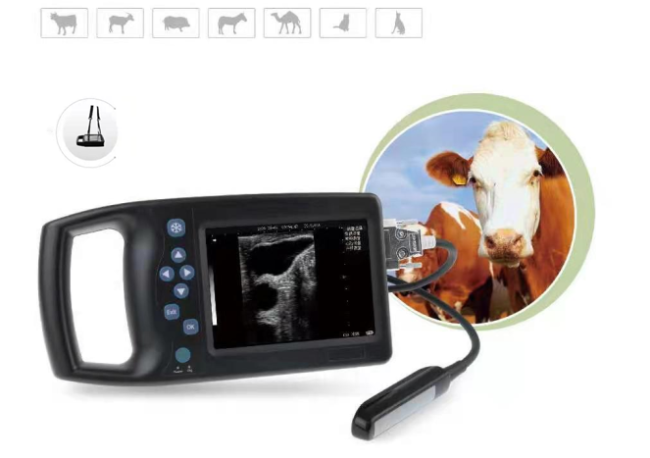

Display

5.7-inch LED display

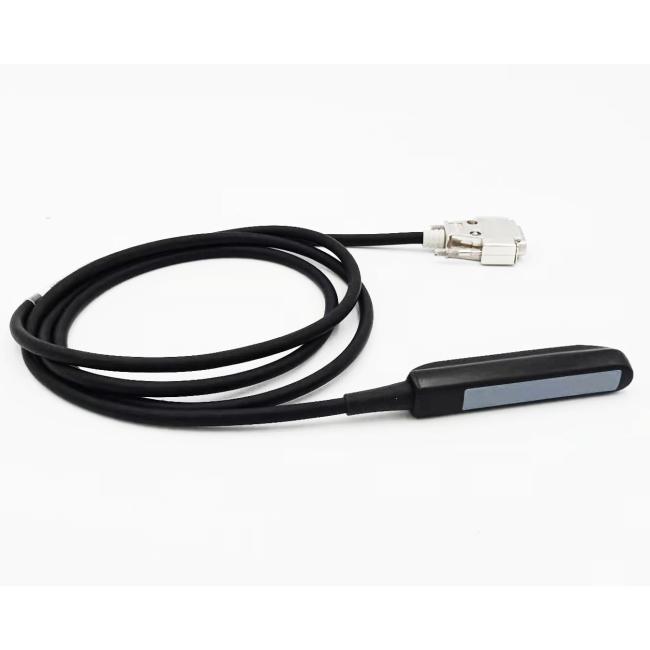

Probe selection

1. Abdominal Convex probe: 3.5mhz

2. micro convex small animal probe:6.5mhz

3. veterinary rectal probe:6.5mhz- for COW

4. high frequency linear array probe:7.5MHz

5. Back-fat probe : 3.5MHz

Function

It has automatic back- fat function

(intelligent one key measurement),

fast back-fat function

(mobile reading ruler) and manual back-fat measurement function

Display mode

B, B + B, 4b, B + m, m

Function 1

rotate the image up, down,

left and right,

and flip the interface

in black and white,

distance, perimeter,

area, volume and angle

Function 2

has annotation function, which is convenient for text

and body mark annotation

gain, frequency, dynamic, date, time

has 256 frame movie playback function,

which can be played back frame by frame and video playback,

and can select any image measurement annotation

to save frame by frame playback;

Storage

it can be equipped with 8g memory card and external U disk for storage.

It can browse pictures and transfer built-in pictures to U disk

Dynamic range

0-135db

gamma correction (0-7),

frame correlation (0-3),

line correlation (0-5),

edge enhancement (0-3),

left and right flip (0-1),

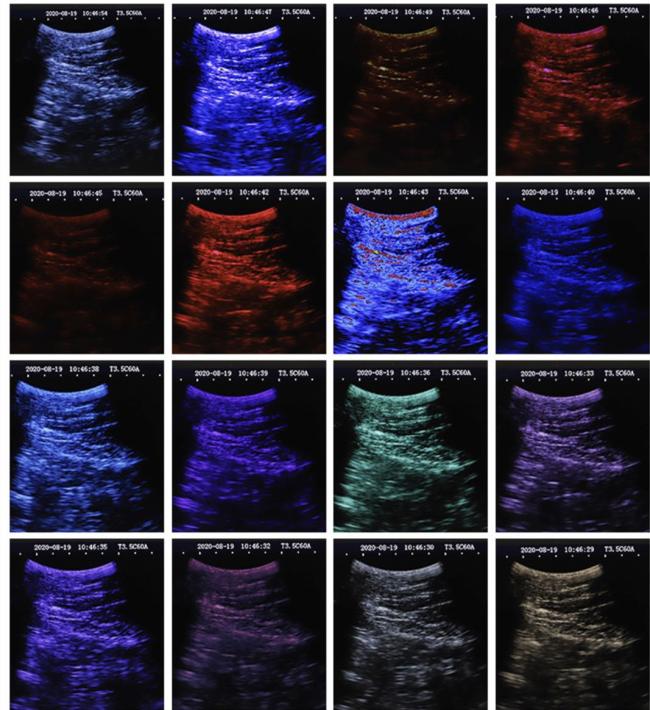

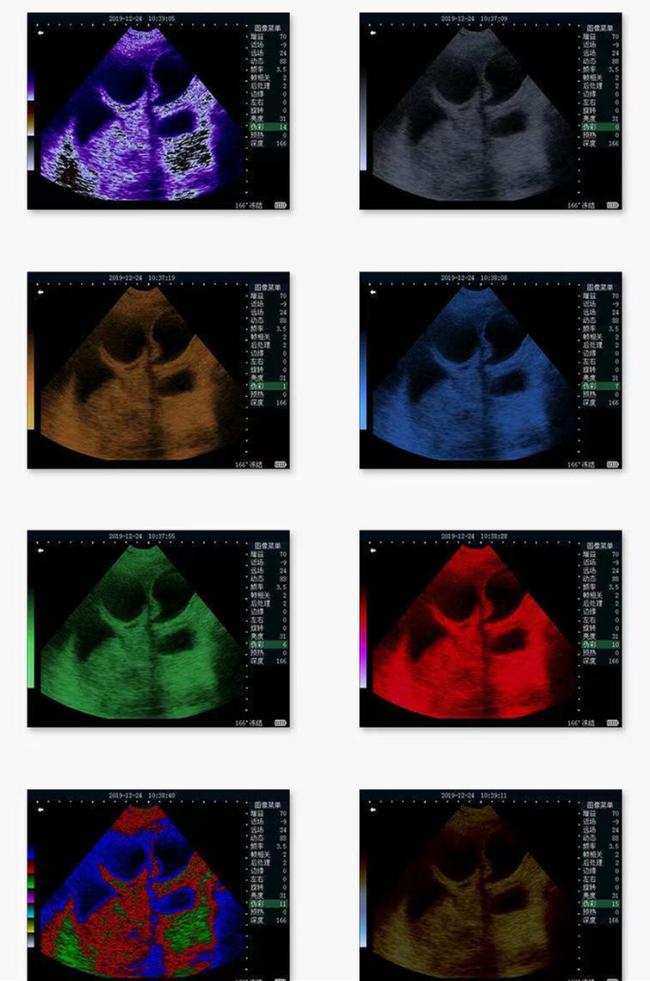

sixteen kinds of pseudo color processing

The maximum display

depth

3.5MHz: 270mm,

6.5mhz: 189mm,

7.5MHz: 165mm

organization harmonic,

histogram function

lateral ≤ 2mm,

axial ≤ 1mm

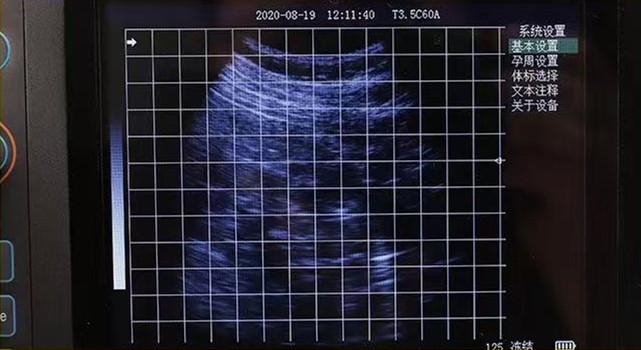

Screen Indications

time and date, video output, TV mode,

key tone switch,

parameter mode,

standby protection,

Multi-language selection,

custom gestational age

and other settings

Battery power indication,

U disk indication,

prompt information display

Large capacity lithium battery

imported 18650 standard cell,

can work for about 4 hours;

245x130x44mm

(L x W x H)

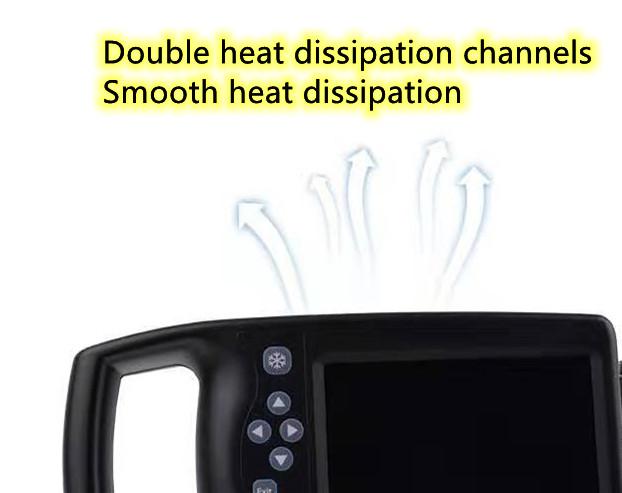

Double cooling channels,

more smooth cooling
