Blue electric Semi Hermetic Refrigeration Compressor H75CC H300CC H300CS H350CC H380CC
Price:
discussed
MOQ:
1pcs
Delivery Time:
7-10 working days after received your payment
Brand:
Dorin
Product Description
Blue electric Semi Hermetic Refrigeration Compressor H75CC H300CC H300CS H350CC H380CC
Model
NO.:H75CC,H300CC,H300CS,H350CC,H380CC,H380SB,H743CC,H7500CC,H50CS,H743CC,H75CS,
Type:Reciprocating
Performance:Low Noise
Drive Mode:Electric
Power Source:AC Power
Configuration:Stationary
Material:Stainless Steel
Lubrication Style:Lubricated
Application:Intermediate, High Back Pressure Type
Export Markets:Global
Additional Info.
Trademark:Dorin
Packing:Wood Pallet
Standard:CE
Origin:Italy
HS Code:8414809040
Production Capacity:1000PCS/Year
Product Description

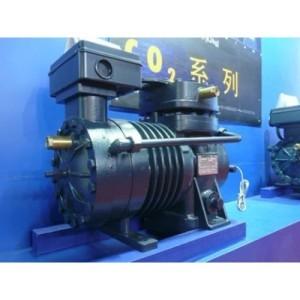

Italy Dorin Refrigeration Semi Hermetic Compressor (H75CC)
Dorin semi hermetic compressors are created to be even more compatible with the characteristics of new refrigerants and the demands of the market related to efficiency, reliability and low noise level.
The range covers displacements from 2.89 to 399, 72 m3/h and normal capacities from 0.5 to 150 HP.
The main characteristics of the compressors are:
Suitable for all main refrigerants available, as R404A, R134A, R407C, R507 and R22.
Wide compressor range for every kind of running conditions.
| Description | Value |
|---|---|
| displacement 50 Hz [m3/h] | 3,86 |
| displacement 60 Hz [m3/h] | 4,63 |
| cylinders | 2 |
| bore [mm] | 42 |
| stroke [mm] | 16 |
| suction valve [mm] | 12 s. |
| discharge valve [mm] | 12 s. |
| oil charge [kg] | 1,0 |
| net weight [kg] | 36 |
| FLA 220-240/3/50 250-280/3/60 delta [A] | 4.2 |
| FLA 380-420/3/50 440 480/3/60 star [A] | 2.4 |
| FLA 380-420/3/50 440 480/3/60 PWS [A] | - |
| LRA 220-240/3/50 250-280/3/60 delta [A] | 19.2 |
| LRA 380-420/3/50 440-480/3/60 star [A] | 11.1 |
| LRA 380-420/3/50 440-480/3/60 PWS [A] | - |
