Duplex 2205 2507 Stainless Steel Flanges Forged Flange Welding Neck Flange

Price Negotiable

Price: negotiable

MOQ: 0.5-1 tons

Delivery Time: 15days->

Brand: TOBO/TPCO/TISCO/VALIN/METAL

Product Description

Duplex 2205 2507 Stainless steel flanges forged flange welding neck flange

Overview

Essential details

Place of Origin:: China

Standard:: ANSI, DIN, GB, ISO, JIS, ASME, ANSI, DIN, GB, ISO, JIS, ASME, ANSI, ASTM, DIN, JIS, BS, ISO...

MOQ:: 1 Piece

Material:: 304/316/304L/316L/321/904L/S32750/S32205

Application:: Petroleum,chemical,power,gas,metallurgy, shipbuilding...

Size:: DN15-DN2000

Certificate:: ISO

Packing:: Wooden Case

Delivery time:: 22-30 Days

Packaging & delivery

Packaging Details: Woven bag, Plywood case,as customers' requirement

Port: NINGBO & SHANGHAI

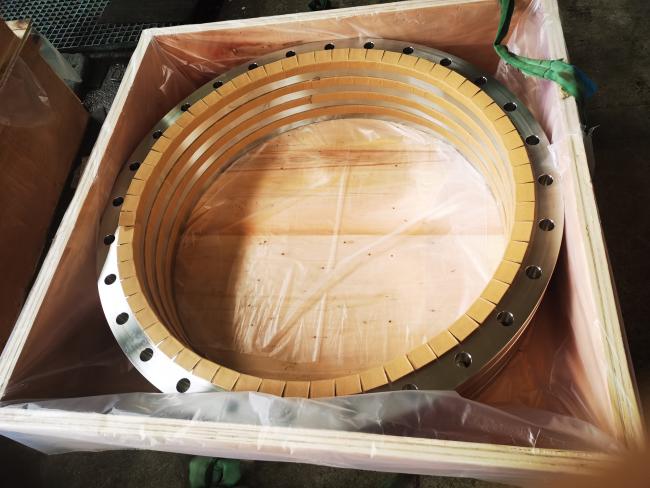

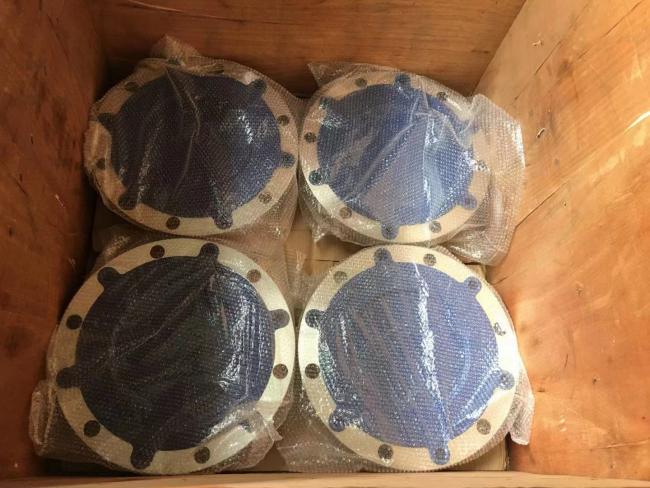

Picture Example:

Lead time:

Quantity(pieces)	1 - 1	2 - 100	101 - 500	>500
Lead time (days)	15	20	25	To be negotiated

Products Description

Product name	Stainless steel flange
Material	Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Duplex Steel :UNS S31803 S32205 S32750 S32760
Size	6mm-254mm
Thickness	0.89mm-6.0mm
Surface treatment	Bright
Technology	Forged
Standards	GB,ASTM,ASME,JIS,DIN,GOST,ISO...
Applications	Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, chemical,Food,beer.decorate.fluid etc
MOQ	1pcs
Delivery time	25 days after receipt of advanced payment
Packing	Woven bag, Plywood case,as customers’ requirement

Stainless steel pipe chemical compositions

	C	Mn	P	S	Si	Cr	Ni	Mo
TP304	0.08	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0	--
TP304L	0.035	2.00	0.045	0.030	1.00	18.0-20.0	8.0-13.0	--
TP316	0.08	2.00	0.045	0.030	1.00	16.0-18.0	11.0-14.0	2.00-3.00
TP316L	0.035	2.00	0.045	0.030	1.00	16.0-18.0	10.0-14.0	2.00-3.00
TP321	0.08	2.00	0.045	0.030	1.00	17.0-19.0	9.0-12.0	--
TP317L	0.035	2.00	0.045	0.030	1.00	18.0-20.0	11.0-15.0	3.0-4.0
TP310S	0.08	2.00	0.045	0.030	1.00	24.0-26.0	19.0-22.0	0.75
TP347H	0.04-0.10	2.00	0.045	0.030	1.00	17.0-19.0	9.0-13.0	--
TP904L	0.02	2.00	0.045	0.035	1.00	19.0-23.0	23.0-28.0	4.0-5.0
S31803	0.030	2.00	0.030	0.020	1.00	21.0-23.0	4.5-6.5	2.5-3.5
S32205/2205	0.030	2.00	0.030	0.020	1.00	22.0-23.0	4.5-6.5	3.0-3.5
S32750/2507	0.030	1.20	0.035	0.020	0.80	24.0-26.0	6.0-8.0	3.0-5.0

Product show

More Product

Stainless steel pipe Stainless steel welded pipe Sanitary stainless steel Square stainless steel
seamless pipe pipe&tube

Stainless steel Stainless steel pipe fitting Stainless steel flange Carbon pipeheat exchanger tube

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
