Monel400 NUS N04400 Monel K500 NUS N05500 Alloy round bar

Name: Monel400 NUS N04400 Monel K500 NUS N05500 Alloy round bar
Brand: TOBO STEEL GROUP CHINA

Price Negotiable

Price: negotiable

MOQ: 0.5-1 tons

Delivery Time: 15days->

Brand: TOBO/TPCO/TISCO/VALIN/METAL

Product Description

Monel400 NUS N04400 Monel K500 NUS N05500 Alloy round bar

Products Description


			Form

			ASTM

			Rod, bar and wire

			B 164

			Plate, sheet and strip

			B 127, B 906

			Seamless pipe and tube

			B 165, B 829

			Welded pipe

			B 725, B 775

			Welded tube

			B 730, B 751

			Welding fitting

			B 366

			Forging

			B 564

Chemical Composition(K500)

			Ni

			Cu

			Fe

			C

			Mn

			Si

			S

			Al

			Ti

			(min)63

			28

			-

			-

			-

			-

			-

			2.3

			0.35

			(max)66

			34

			25

			0.3

			2

			0.5

			0.024

			3.15

			0.85

Chemical Composition(400)

			Ni

			Cu

			Fe

			C

			Mn

			Si

			S

			(min)63

			28

			-

			-

			-

			-

			-

			(max)-

			34

			25

			0.3

			2

			0.5

			0.024

Physical Properties(K500)

			Density

			8.84 g/cm3

			Melting range

			1316-1400℃

Physical Properties(400)

			Density

			8.80 g/cm3

			Melting range

			1300-1350℃

  Monel K-500 combines Monel 400's excellent corrosion resistance with greater strength and hardness as a result of adding aluminum and titaniumand proper heat treatment to cause precipitation hardening. It is nonmagnetic at temperatures as low as -101ºC. Monel K-500 has excellent dimensional stability which is very useful in high precision devices. Like Monel 400, it does not undergo ductile-to-brittle transition at cryogenic temperatures as low as that of liquid hydrogen. Its tensile and yield strengths increase while ductility and toughness are only slightly impaired.
Applications: Chemical process pump and valve components; paper production pulp processing doctor blades and scrapers; marine engineering chains, cables, fasteners and springs; electronic components; and oil and gas production non-magnetic housings, pump shafts and impellers.

Essential details

	Place of Origin:
	China

	Type:
	Nickel Bar

	Application:
	industry etc

	Grade:
	Monel k500 400

	Ni (Min):
	63

	Resistance (μΩ.m):
	1.5

	Powder Or Not:
	Not Powder

	Ultimate Strength (≥ MPa):
	960

	Elongation (≥ %):
	20

	Model Number:
	Monel K500 400

	Brand Name:
	TOBO

	Name:
	Monel K500 monel 400 Round Bar Rod Nickel Alloy

	Application::
	petroleum,chemical etc

	Process method::
	Cold Drawn,Cold Rolled,Hot Rolled

	Brand Name::
	TOBO

	Certification::
	SGS,ISO

	Shape::
	Round,hex,square bar

	Special Use::
	Valve Steels

	Quality::
	MTC(high Quality)

	Sample::
	for free

Supply Ability

	Supply Ability
	4500 Ton/Tons per Month

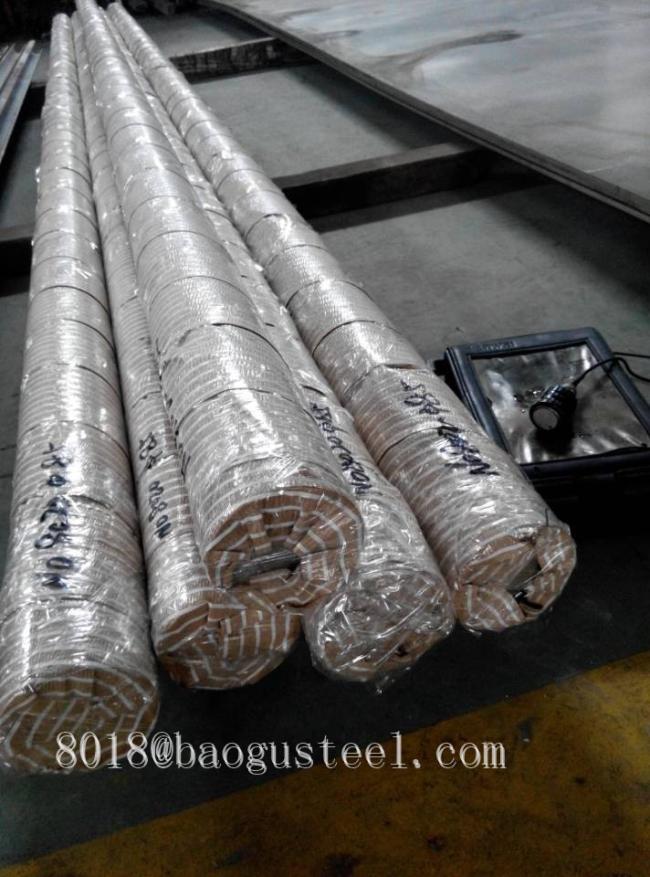

Packaging & delivery

	Packaging Details
	1.woven bags

	2,Seaworthy Wooden and pallet packing.

	3.Other packing as per customer requirement.

	Port
	Shanghai

	Picture Example:

	Lead time:

				Quantity(tons)
				1 - 1
				2 - 5
				>5

				Lead time (days)
				15
				25
				To be negotiated

Advantages1. Advanced technology of cold draw machine

Advanced annealing machine

Better mechanical property

More precise dimension
Perfect inspection method and inspection equipment etc

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
