ASTM A182 SORF Stainless Steel Pipe Flanges DN20-300 CL150-2500 Forged Flanges
Quick Details
| Material: |
F53, 2507 Super Duplex Stainless Steel, etc
|
Technics: |
Forged
|
Type: |
F53 SORF Flange
|
| Place of Origin: |
Shanghai, China (Mainland)
|
Head Code: |
Round
|
Brand Name: |
TOBO
|
| Connection: |
Welding
|
Shape: |
Round
|
Packaging & Delivery
| Packaging Details: | Seaworthy plywood case or as customer requests |
|---|---|
| Delivery Detail: | 2 - 10 days after receiving the deposi |
Specifications

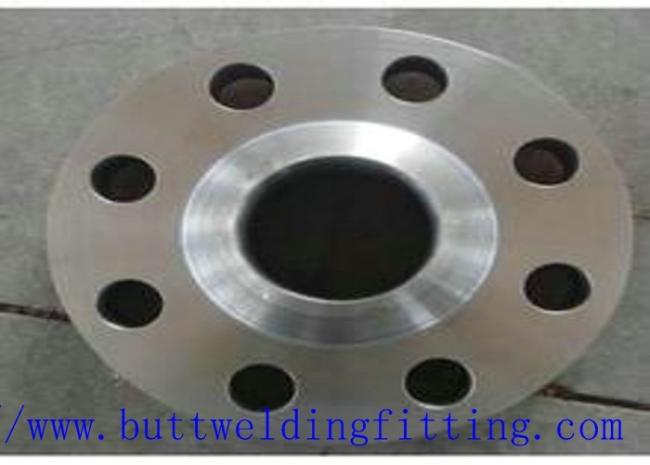

ASME B16.5 ASTM A182 F53 SORF Flange DN20 CL150
1. Material: F53, 2507 Super Duplex Stainless Steel, etc
2. Size: 3/4" (DN20)
3. Standard: ASTM B16.5, DIN, etc
4. Pressure: 150#, 300#, 600#, etc
| Type | F53 SORF Flange |
| Size | 1/2" to 120" |
| Standards | SO, WN, SW, TH, LJ, BL, PL, etc |
| Material |
Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, 46, 52, 56, 60, 65, 70 Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Duplex Stainless Steel: F51, 2205, F53, 2507, etc |
| Sealing surface | FF, RF, LJ, FM, R.T.J, R.J and so on |
| Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, et |
| Type: | Slip On Flange, Welding Neck Flange, Socket Welding Flange, Threaded Flange, Lap Joint Flange, Blind Flange and other kinds of special flangs. |
| Standard: |
· America:ASME B16.5,ASME B16.48,ASME B16.47,API 590 · China:GB/T9112~GB/T9124-2000,GB/T2506-1989(2005),GB/T2504-1989(2005),GB/T10746-1989,GB/T4450-1989 · Germany:DIN 2573~2576,DIN 2527,DIN 2630~2637,DIN 2641~2642 · Japan:JIS B2220-2004,JIS F7806-1996,JIS B2291-1994 · Shipbuilding:CB1001-81,CBM1013-81,CBM1018-81,CBT47-1999 · Industry Standard:JB/T74-1994,JB4700-4707-2000,JB/ZQ4485-4486-1997 · Industry Standard:HG/T20592-2009,HG/T20615-2009 · International Standard:ISO 7005-1-1992 · EU:BS EN 1092-1-2008
|
| Material: |
· Austenitc Stainless steel: · F304,F304L,F304H,F316,F316L,F316H,F317,F317L,F347H,F310S, F310H,F321,F321H · Superaustenitic stainless steel:S31254 · Duplex stainless steel · S31500,S31803(2205),S32304,S32205,S32760,S32750,HDR · Copper Nickel Alloy:B10,B30 · Special steel:N06600,N08800,N08811,Titanium alloy, Alloy steel etc. · Carbon manganese steel:20# / Q235B / A105,16Mn,F11,F13
|
| Size: | 1/2’—120’(DN15—DN3000) |
| Rate: | 100Lb—2500Lb(0.6MPa—42.0MPa) |
| Technics: | Hot die forging from round bar,CNC machining,Drilling and Passivating |
APPLICATIONS Of ASME B16.5 ASTM A182 F53 SORF Flange DN20 CL150:
1. petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Oil and gas industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce flange with special specifications according to customers’ requirements;

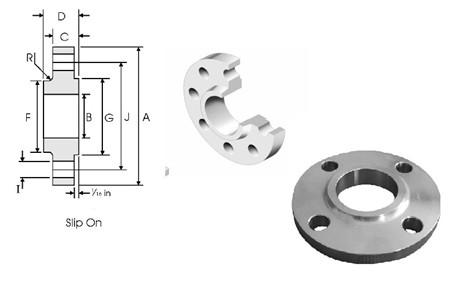

Slip on flanges are slipped over the pipe and welded (usually both inside and outside) to provide strength and prevent leakage. Slip on Flanges are at the low cost end of the scale, and do not require high accuracy when cutting the pipe to length. These slip on can sometimes have a boss or hub, and can be made with a bore to suit either pipe or tube.
