ASTM WP321 / 321H 90 Elbow ASTM A403 WP316 Equal Tee

Price Negotiable

Price: USD

MOQ: 1

Delivery Time: 5-8 WORK DAYS

Brand: TOBO

Product Description

ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee

Overview

Essential details

Place of Origin:: Jiangsu, China

Brand Name:: Saky Steel

Model Number:: 1/8" NB TO 48" NB

Technics:: Forged

Connection:: Welding

Shape:: Reducing

Head Code:: Elbow

Product name:: ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee

Specifications:: ASTM A403 / ASME SA403

Standard:: ASME/ANSI B16.9 ASME B16.28

Size:: 1/8" NB TO 48" NB(Seamless & 100% X-ray Welded, Fabricated

Type:: Seamless /Welded /Fabircated

Bending Radius:: R=1D,2D,3D,5D,6D,8D,10D or Custom

Thickness:: Sch 5s, Sch 10s, Sch 40s, Sch 80s etc

Product's Angle:: 5°-180° Elbows etc

Surface:: mirror,,hairline,sand blast,Brush,Bright

Application:: Petroleum, gas, chemical,metallurgy, construction

Supply Ability

Supply Ability: 500 Ton/Tons per Month ASTM B16.9 Butt Welded Pipe Fittings 90 deg elbow seamless welde

Packaging & delivery

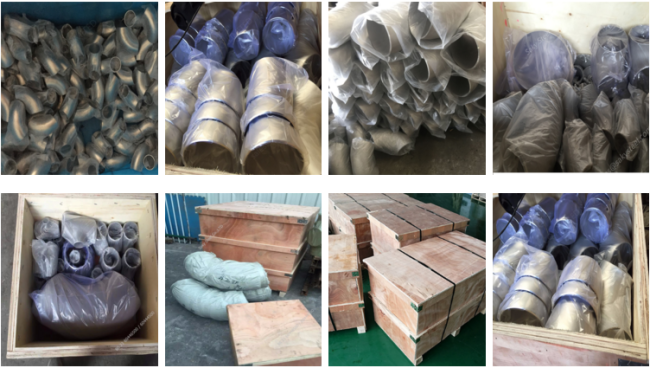

Packaging Details: shrink wrapped-carton-pallet or in seaworthy wooden cased

Port: Shanghai Ningbo

Product Description

Product name

Standard Specification For Stainless Steel ASTM A403 WP304 Pipe Fittings

Specifications

ASTM A403 / ASME SA403

Sizes

Seamless Elbow ( 1/2″~24″), ERW / Welded / Fabricated Elbow (1/2″~48″)

Thickness

Sch 5s, Sch 10s, SCH20, SCH30, SCH40, STD, SCH80, SCH100. SCH120, SCH160. XXS

Standard

ASTM A234 ASME B16.9 ASME 16.28

DIN 2605 DIN 2615 DIN 2616 DIN 2617

JIS B2311 JIS B2312 JIS B2313 BS GB

Surface

mirror,,hairline,sand blast,Brush,Bright, Pickled

Type

Seamless / Welded / Fabricated

Form :

Elbow, 90 Deg Elbow, Long Radius Elbow, Short Radius Elbow, LR Elbow, SR Elbow.

Bending Radius

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Package

Seaworthy package . Wooden or plywood case or pallet , or as customers' request

Product Range And Theoretical Weights(Kg):

DN	Schedule 10s			Schedule 40s			Schedule 80s
DN	90°Elbow	45°Elbow	EqualTee	90°Elbow	45°Elbow	EqualTee	90°Elbow	45°Elbow	EqualTee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.40	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.16
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

Product Range And Theoretical Weights(Kg):

DN	Schedule 10s			Schedule 40s			Schedule 80s
DN	ConReducer	EccReducer	ReducingTee	ConReducer	EccReducer	ReducingTee	ConReducer	EccReducer	ReducingTee
40×25	0.19	0.19	0.60	0.26	0.26	0.76	0.34	0.34	0.90
50×25	0.28	0.28	0.73	0.40	0.40	1.10	0.54	0.54	1.37
50×40	0.31	0.31	0.76	0.45	0.45	1.15	0.59	0.59	1.43
80×50	0.55	0.55	1.56	1.00	1.00	2.91	1.79	1.79	3.91
100×50	0.78	0.78	2.94	1.50	1.50	4.48	1.95	1.95	6.55
100×80	0.87	0.87	3.04	1.74	1.74	4.64	2.33	2.33	6.79
150×80	1.82	1.82	6.86	3.95	3.95	9.68	5.51	5.51	11.57
150×100	1.96	1.96	7.10	4.07	4.07	11.94	5.96	5.96	11.97
200×100	3.01	3.01	13.46	6.55	6.55	17.98	9.23	9.23	24.18
200×150	3.19	3.19	14.08	6.74	6.74	18.82	10.12	10.12	25.31
