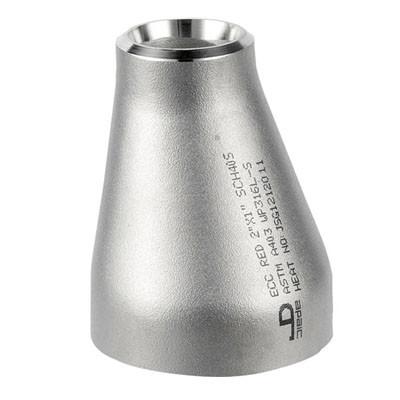

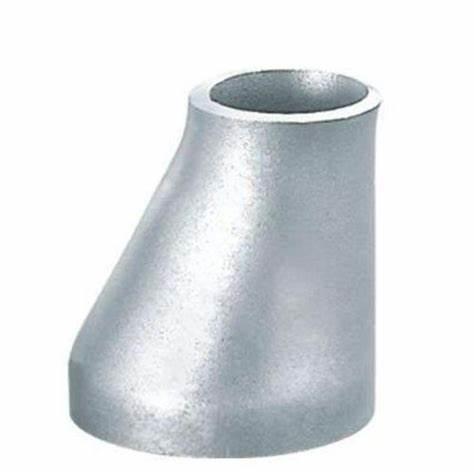

Eccentric Reducer Butt Welding Fittings 1/2”-60” Sch5s-Schxxs Standard: ASME, MSS, ISO, DIN, JIS
Price:
Negotiable
MOQ:
1Pcs
Delivery Time:
15-30 workdays
Brand:
TOBO
Product Description
TOBO GROUP sales head offce in Shanghai. We are one of the Professional manufacturers Exporter Pipeline products in China .Our company was established in 1998, the plant covers 550, 000 square meters .QC/Technical Support TOBO GROUP We are ISO 9001-2008 certified company and believe that it is the quality of product and services, which makes a company truly successful in its field of work.
| Wrougth Steel Butt-welding Fittings | ||
|---|---|---|
| Standard | Product TyPes | Size |
| ASME B16.9 | Long Radius Elbows,Long Radius Reducing Elbows,Long Radius Returns,Short Radius Elbows,Short Radius 180-deg Rerurns,3D elbows,Straight Tees,Straight Crosses,Reducing Outlet Tees,Reducing Outlet Crosses,Lap Joint Stub Ends,Caps,Reducers | Size:1/2"-48" Wall thickness:SCH5S-SCHXXS |
| ASME B16.28 | Short Radius Elbows,Short Radius 180-deg Returns | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS |
| ASME B16.49 | 30° 45° 60° 90° Long Radius Short Radius Bend | Size:1/8"-12" Wall thickness:SCH5S-SCHXXS |
| MSS-SP43 | Long Radius Elbows,Straight and Reducing-on-the-Outlet Tees,Lap Joint Stub ends,caps,long radius 180 Degree returns,concentric reducers,eccentric reducers | Size:1/2"-24" Wall thickness:SCH5S-SCHXXS |
| MSS-SP75 | Long Radius Elbows,3R elbows,straight tees,reducing outlet tees,caps,reducers | Size:16"-60" Wall thickness:SCH5S-SCHXXS |
| ISO, DIN, JIS | All Kind of Buttwelding Product or as Client's Drawing | As the Client's Demand |
| Material Standard | Nickel Alloy | ASTM/ASME SB 366 Alloy 200/UNS N02200, Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 400/Monel 400/UNS N04400, F904L/UNS N08904, Alloy 800/Incoloy 800/UNS N08800, Alloy C-2000/UNS N06200, Alloy 925/Incoloy 925/UNS N09925, Alloy C-22/UNS N06022, Alloy 201/UNS N02201, Alloy C-276/Hastelloy C-276/UNS N10276, Alloy 625/UNS N06625, Nimonic 80A/Nickel Alloy 80A/UNS N07080, Alloy K-500/Monel K-500, Alloy 20/UNS N08020, Alloy 800H/Incoloy 800H/UNS N08810,Alloy 600/Inconel 600/UNS N06600, Alloy 31/UNS N08031,Hastelloy C-276/UNS N10276, Alloy 825/Incoloy 825/UNS N08825,Alloy 20/N08020 |
| Carbob Steel | ASTM/ASME SA 234 WPB | |
| Low Alloy Steel | ASTM/ASME SA 234 WP91, WP11, WP22, WP9, | |
| Low Temp Carbon steel | ASTM/ASME SA420 WPL3-WPL 6 | |
| Duplex and Super Duplex Steel | ASTM/ASME SA 815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550 | |
| Stainless Steel | ASTM/ASME SA403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM/ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti, ASTM/ASME A403 WP 321, WP 321H ASTM/ASME A403 WP 347, WP 347H | |
| High Strength Ferritic Steel | ASTM/ASME SA 860 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70 | |
| Titanium | ASTM/ASME SB337 Grade 1, Grade 2, Grade 11, Grade 12 | |
| Cu Ni Alloy | ASTM/ASME SB 466 UNS C70600 Cu/Ni 90/10 | |
