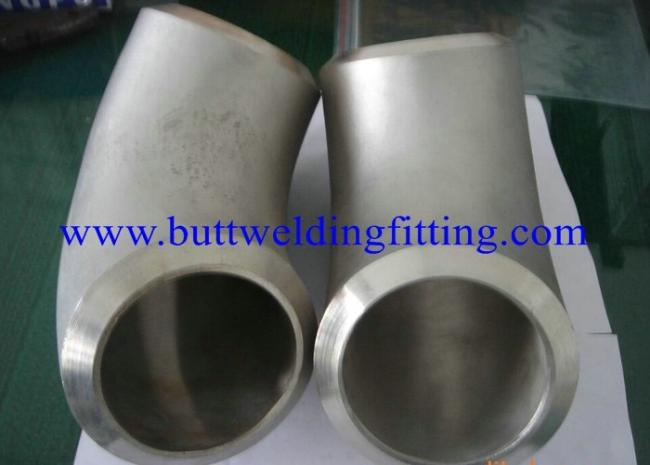

LR SR 90 Degree Elbow Stainless Steel Butt Weld Fittings A403-WP304L A403-WP316L WP321
LR , SR 45 / 90 Degree ,Stainless Steel Elbow A403-WP304L A403-WP316L WP321 , 321H . WP347. A815 UNSS31803
We provide our clients with butt weld fittings that are made from high quality stainless steel by our original manufacturers. Offered in seamless and welded forms, these fittings are precision-made and are offered to our clients in the following specifications:
Form:
1/8" NB TO 48" NB. (Seamless & Welded)
Thickness
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE MR 01-75
Type:
· Elbows in 45 deg, 90 deg, 180 deg, R=1D,1.5D,3D, 5D, 6D, 8D, 10D & 20D.
· Eccentric & concentric reducer.
· Caps & crosses.
· Equal & unequal tee.
· Long & short stub end.
Standard:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Material:
Stainless Steel : ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel : ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel : ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91/ etc.
Other materials : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.
|
Unit : inch |
Outside Dia. |
Wall Thickness (T) |
90o L/R Elbow Center To End A |
45o L/R Elbow Center To End B |
90o S/R Elbow Center To End A |
|||
|
Sch.5S |
Sch.10S |
Sch.40S |
Sch.80S |
|||||
|
1/2 |
0.840 |
0.065 |
0.083 |
0.109 |
0.147 |
1.50 |
0.625 |
|
|
3/4 |
1.050 |
0.065 |
0.083 |
0.113 |
0.154 |
1.12 |
0.438 |
|
|
1 |
1.315 |
0.065 |
0.109 |
0.133 |
0.179 |
1.50 |
0.875 |
1.00 |
|
1-1/4 |
1.660 |
0.065 |
0.109 |
0.140 |
0.191 |
1.88 |
1.00 |
1.25 |
|
1-1/2 |
1.900 |
0.065 |
0.109 |
0.145 |
0.200 |
2.25 |
1.12 |
1.50 |
|
2 |
2.375 |
0.065 |
0.109 |
0.154 |
0.218 |
3.00 |
1.38 |
2.00 |
|
2-1/2 |
2.875 |
0.083 |
0.120 |
0.203 |
0.276 |
3.75 |
1.75 |
2.50 |
|
3 |
3.500 |
0.083 |
0.120 |
0.216 |
0.300 |
4.50 |
2.00 |
3.00 |
|
4 |
4.500 |
0.083 |
0.120 |
0.237 |
0.337 |
6.00 |
2.50 |
4.00 |
|
5 |
5.563 |
0.109 |
0.134 |
0.258 |
0.375 |
7.50 |
3.12 |
5.00 |
|
6 |
6.625 |
0.109 |
0.134 |
0.280 |
0.432 |
9.00 |
3.75 |
6.00 |
|
8 |
8.625 |
0.109 |
0.148 |
0.322 |
0.500 |
12.00 |
5.00 |
8.00 |
|
10 |
10.750 |
0.134 |
0.165 |
0.375 |
0.500 |
15.00 |
6.25 |
10.00 |
|
12 |
12.750 |
0.156 |
0.180 |
0.375 |
0.500 |
18.00 |
7.50 |
12.00 |
|
14 |
14.000 |
0.156 |
0.250 |
0.375 |
0.500 |
21.00 |
8.75 |
14.00 |
|
16 |
16.000 |
0.165 |
0.250 |
0.375 |
0.500 |
24.00 |
10.00 |
16.00 |
|
18 |
18.000 |
0.165 |
0.250 |
0.375 |
0.500 |
27.00 |
11.25 |
18.00 |
|
20 |
20.000 |
0.188 |
0.250 |
0.375 |
0.500 |
30.00 |
12.50 |
20.00 |
