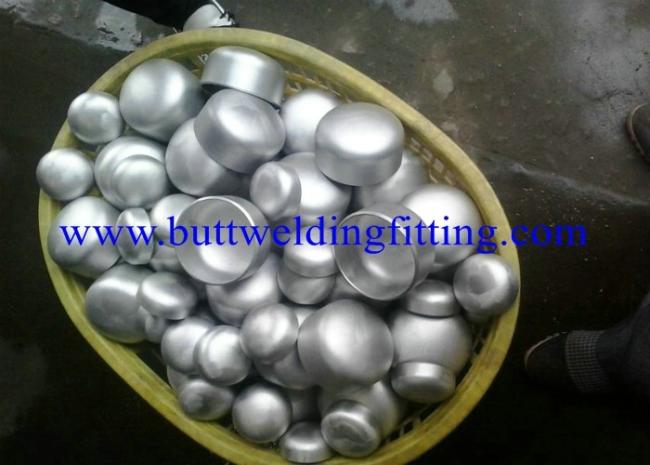

Stainless Steel Tube End Caps ASTM A403 WP304L , WP316L, WP321, WP347, WPS 31254
Stainless Steel Cap ASTM A403 WP304L , WP316L, WP321, WP347, WPS 31254. UNS S31803, UNS32750, UNS32760
Pipe fittings caps
Size
1/2"-68"DN15-DN1800
Wall thickness
Sch5-Sch160XXS
Standard
ISO, SNSI, JIS, DIN, GB/T12459GB/T13401ASME B16.9SH3408 SH3409HG/T21635HG/T21631SY/T05010
Material
A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.A403-WP304.A403-WP304L. A403-WP316.A403-WP316L
Packaging
Wooden Cases or wooden pallet or as per customers requirement
Applications range Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Min Order Quantity
According to customer's requirement
Delivery Time
According to customer's requirement
Quality
First grade
Productivity
1,118,000T/Y
1. anti-corrosion and high-temperature resistant with black painting
2. All special design available according to requirementS
3. The production process are made under the ISO9001:2000 strictly.

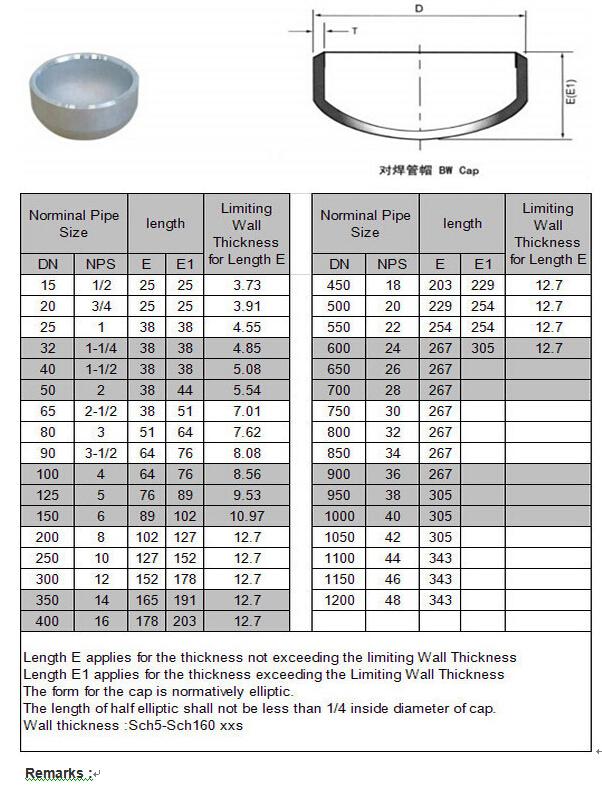

Nominal Diameter | Outside Diameter at Bevel | Back to End | |||||
Series A | Series B | E | T | ||||
DN | NPS | ||||||
15 | 1/2 | 21.3 | 18 | 25 | 4.57 | ||
25 | 1 | 33.7 | 32 | 38 | 4.57 | ||
40 | 1.1/2 | 48.3 | 45 | 38 | 5.08 | ||
50 | 2 | 60.3 | 57 | 38 | 5.59 | ||
65 | 2.1/2 | 76.1(73) | 76 | 38 | 7.11 | ||
80 | 3 | 88.9 | 89 | 51 | 7.62 | ||
100 | 4 | 114.3 | 108 | 64 | 8.64 | ||
125 | 5 | 139.7 | 133 | 76 | 9.65 | ||
150 | 6 | 168.3 | 159 | 89 | 10.92 | ||
200 | 8 | 219.1 | 219 | 102 | 12.70 | ||
300 | 12 | 323.9 | 325 | 152 | 12.70 | ||
350 | 14 | 355.6 | 377 | 165 | 12.70 | ||
400 | 16 | 406.4 | 426 | 178 | 12.70 | ||
450 | 18 | 457.2 | 478 | 203 | 12.70 | ||
500 | 20 | 508.0 | 529 | 229 | 12.70 | ||
550 | 22 | 559 | - | 254 | 12.70 | ||
600 | 24 | 610 | 630 | 267 | 12.70 | ||
When T is less the dimension in parentheses, the height E is available. Otherwise E1 is available. | |||||||
