Stainless Steel Weld Fittings Short Stub End UNS S31803 UNS S32750 UNS S32760
Stainless Steel Stub Ends UNS S31803 ,UNS S32750, UNS S32760, U A420-WPL6,316L, 304L, 321, 321H. WP347, WP904L

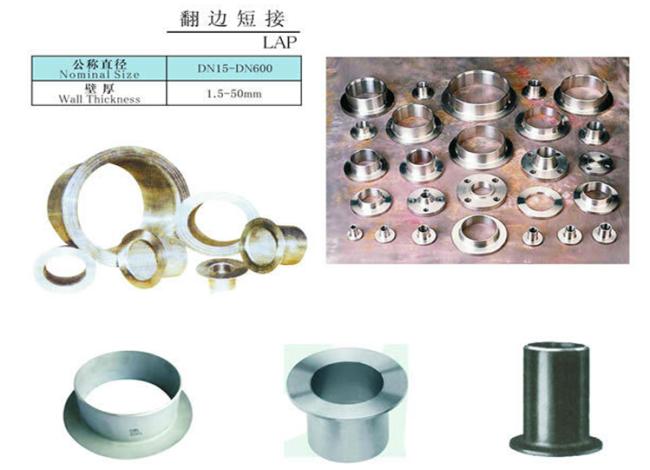

Product Name: Butt Welding Stainless Steel Fitting Stub end
Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
DIN 1.4301,1.4401,1.4404,1.4541,1.4401,1.4571 etc
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection,
|
Name |
High pressure Stainless steel short/long pipe Stub End,lap joint stub end |
|
Size |
21.3mm-609.6mm (1/2''-24''),DN15-DN600 |
|
WT |
SCH5S-XXS |
|
Standard |
ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419,DIN EN10253,JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, BS1387,ASTM A403 |
|
Raw material |
Carbon steel , stainless steel, alloy steel |
|
Carbon Steel |
10# 20# Q235B ASTM A234 ASTM A105 ASTM A403 |
|
Stainless Steel |
1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti 00Cr17Ni14Mo2 304 304L 316 316L |
|
Alloy Steel |
16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1 A335P22 St45.8 ASTM A860 WPHY X42 X52 X60 X70 |
|
Aluminum Steel |
1060,2024,2017,3003,5052,5083,6061,6083,6060,7075,8011 |
|
Packing: |
Wooden case, Wooden pallet, or according to customer's requirement |
|
Main pipefittings |
Elbow ,Tee/Cross ,Reducer ,Cap ,Flange ,Bend,Stubtube,Weldolet/Threadolet/Olet,Nipple, Reducing Socket Insert,Union,Pipe Clamp,and etc |
|
Inspection |
Factory in-house or Third Party inpection |
|
Application |
Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
