A403 WP316L WP321 WP310 WP317L Stainless Steel Pipe Cap 6 Inch 8” SCH40S SCH80 SCH120
A403 WP316L WP321 WP310 WP317L Stainless Steel Caps 6 Inch 8” SCH40S SCH80 SCH120
Description:

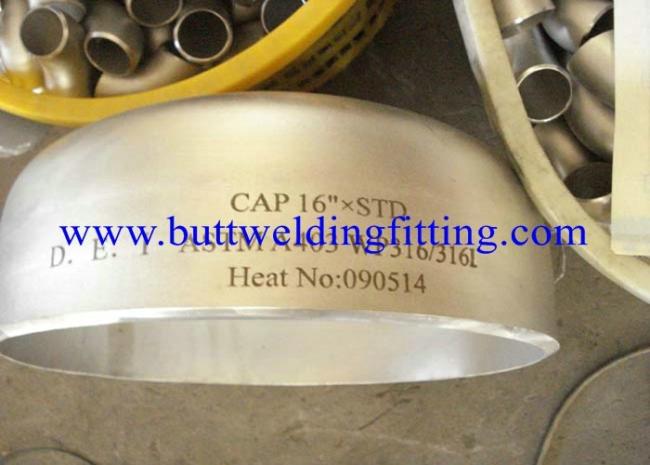

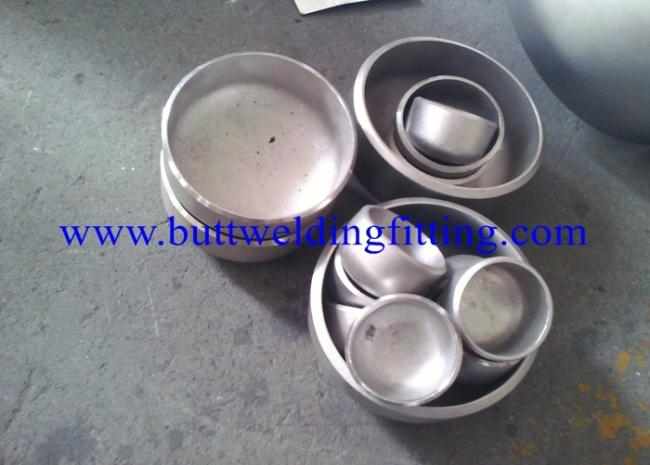

1. Product :Stainless Steel Caps
2. Type: seamless cap, butt welding cap , carbon steel cap,steel pipe end cap,steel cap,astm mild steel cap,hot rolled steel cap,steel tube cap
3. Tecnique: Forged, Press-Forming, Casting
4. Size: NPS 1/2"-72"
5. Thickness:
SCH5, SCH10, SCH20, SCH30, STD, SGP, SCH40, SCH60, XS, SCH80, XXS, SCH100, SCH120, SCH140, SCH160, XXS, DIN, JIS standard thickness
6. Material:
Stainless steel: A403 WP304/TP304, WP304L/TP304L, WP316/TP316, WP316L/TP316L, WP321/TP321, WP310/TP310^
7. Standard: ANSI/ASTM B16.9/16.28, API 5L, DIN2617, JIS B2311/2312/2313,
we can also produce according to drawing by customers.
8. Surface treat: Black painting,varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE,etc.

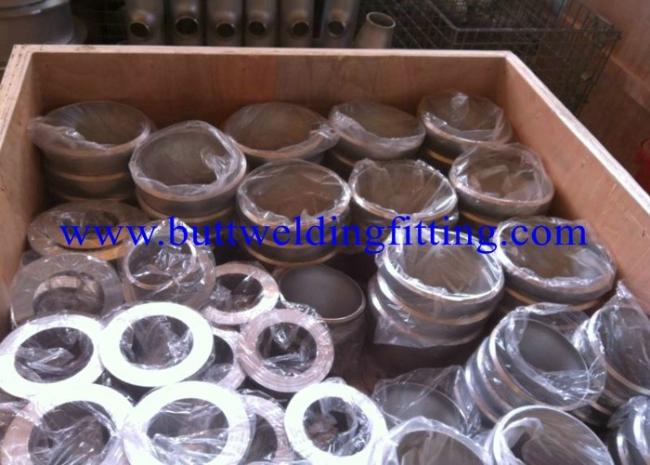

9. Packing: in wooden cases or pallets,or as per clients' requirements
Applications:
Widely used in connecting the long-distance piping engineering ,such as transmission of the finished oil,
transmission of the natural gas and the deep processing as well as transmission of coal bed gas,
petroleum industry, chemical industry, construction industry, domestic installation pharmaceutical, electrical power, light industry, textile, Iron &steel industry, nuclear station, vessels and transmission of the coal slurry and etc.
Specification
|
Nominal Pipe Size (NPS) |
Outside Diameter |
Length,E |
Limiting Wall Tickness for Length,E |
Length,E1 |
|
|
mm |
Inch |
||||
|
1/2 |
21.3 |
0.84 |
25 |
4.57 |
25 |
|
3/4 |
26.9 |
1.05 |
25 |
3.81 |
25 |
|
1 |
33.7 |
1.32 |
38 |
4.57 |
38 |
|
1.1/4 |
42.4 |
1.66 |
38 |
4.83 |
38 |
|
1.1/2 |
48.3 |
1.90 |
38 |
5.08 |
38 |
|
2 |
60.3 |
2.38 |
38 |
5.59 |
44 |
|
2.1/2 |
73 |
2.88 |
38 |
7.11 |
51 |
|
3 |
88.9 |
3.50 |
51 |
7.62 |
64 |
|
3.1/2 |
101.6 |
4.00 |
64 |
8.13 |
76 |
|
4 |
114.3 |
4.50 |
64 |
8.64 |
76 |
|
5 |
141.3 |
5.56 |
76 |
9.65 |
89 |
|
6 |
168.3 |
6.62 |
89 |
10.92 |
102 |
|
8 |
219.1 |
8.62 |
102 |
12.7 |
127 |
|
10 |
273 |
10.75 |
127 |
12.7 |
152 |
|
12 |
323.9 |
12.75 |
152 |
12.7 |
178 |
|
14 |
355.6 |
14.00 |
165 |
12.7 |
191 |
|
16 |
406.4 |
16.00 |
178 |
12.7 |
203 |
|
18 |
457 |
18.00 |
203 |
12.7 |
229 |
|
20 |
508 |
20.00 |
229 |
12.7 |
254 |
|
22 |
559 |
22.00 |
254 |
12.7 |
254 |
|
24 |
610 |
24.00 |
267 |
12.7 |
305 |
|
26 |
660 |
26.00 |
267 |
-- |
-- |
|
28 |
711 |
28.00 |
267 |
-- |
-- |
|
30 |
762 |
30.00 |
267 |
-- |
-- |
|
32 |
813 |
32.00 |
267 |
-- |
-- |
|
34 |
864 |
34.00 |
267 |
-- |
-- |
|
36 |
914 |
36.00 |
267 |
-- |
-- |
|
38 |
965 |
38.00 |
305 |
-- |
-- |
|
40 |
1016 |
40.00 |
305 |
-- |
-- |
|
42 |
1067 |
42.00 |
305 |
-- |
-- |
|
44 |
1118 |
44.00 |
343 |
-- |
-- |
|
46 |
1168 |
46.00 |
343 |
-- |
-- |
|
48 |
1219 |
48.00 |
343 |
-- |
-- |
