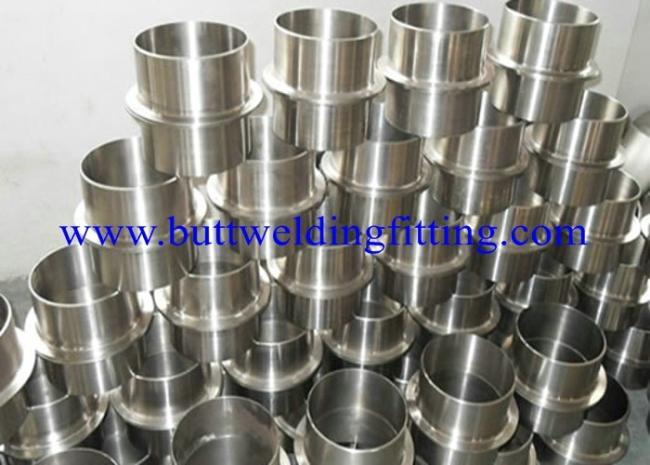

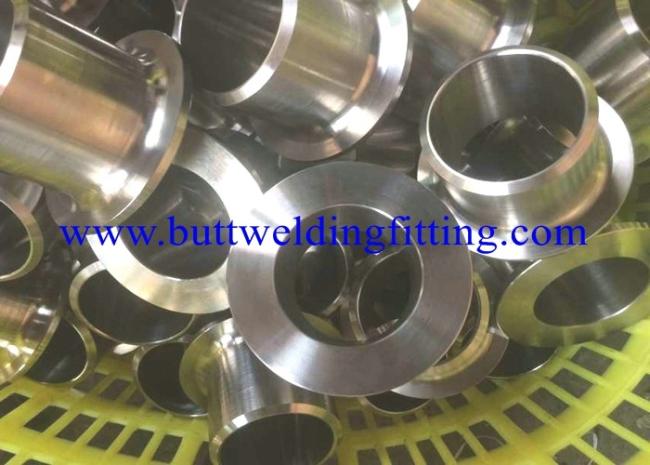

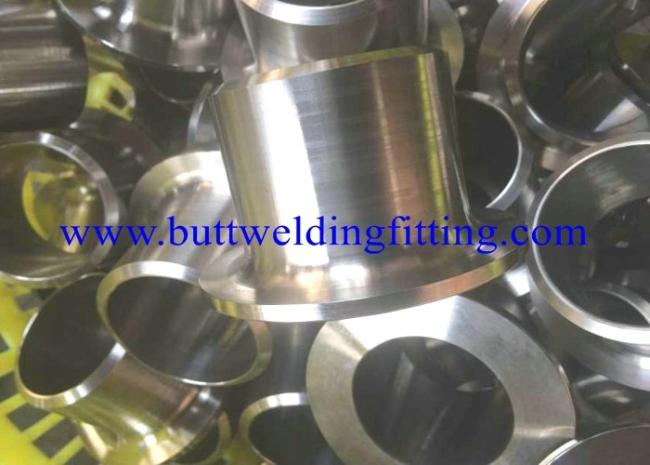

WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120

 WP321 WP310 WP317L Stainless Steel Stub Ends  Lap Joint 1 Inch 8” SCH40S SCH80 SCH120

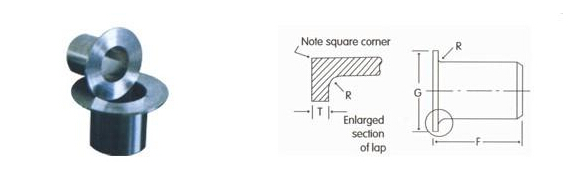

STUB ENDS IN STAINLESS STEEL

Designs

·         Design according to ASME / ANSI B16.9, B16.28, MSS SP-43, MSS SP-75

·         Seamless or welded design

Shapes:

·         Elbows 45°, 90°, 180° (long & short), 3R

·         Straight and reducting tees

·         Concentric and eccentric reducers

·         Caps

·         Stub Ends

·         Crosses

·         Other non standard designs

·         High wall thickness and large diameter butt weld fittings (seamless or mitered) on demand

·         Special shaped butt weld fittings on demand

Materials

·         Carbon steel: ASTM A234 WPB

·         Alloy carbon steel: ASTM A 234 WP1, WP 11 cl 1, WP 22 cl 1, WP 5

·         Low temperature carbon steel: ASTM A 420 WPL6, WPL3

·         Austenitic stainless steel: ASTM A 403 WP 304/304L, WP 316/316L, WP 321

·         Duplex, superduplex

·         Monel, Inconel 625®, Hastelloy C 276®, 6Mo, Incoloy 825®

·         Titanium, zirconium for highly corrosive applications

·         Ductile iron for water applications

Dimensional Range

·         Sizes: 1/2'' - 48'' (and above - i.e. special butt weld fittings)

·         Schedules: STD, S40, XS, S80, S120, S160, XXS

·         Heavy wall thickness / Large diameter fittings on demand
