ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint 10 inch SCH40S

ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint  10” SCH40S


Product Name: Butt Welding Stainless Steel Fitting  Stub end
Size Range:
DN15-DN600  (1/2"-24")       Seamless Type
DN15 - DN1200 (1/2"- 48" )  Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
DIN  1.4301,1.4401,1.4404,1.4541,1.4401,1.4571 etc
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408  ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection,

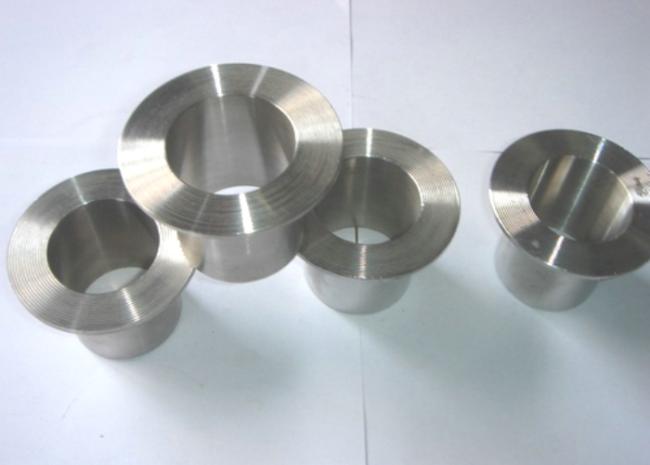

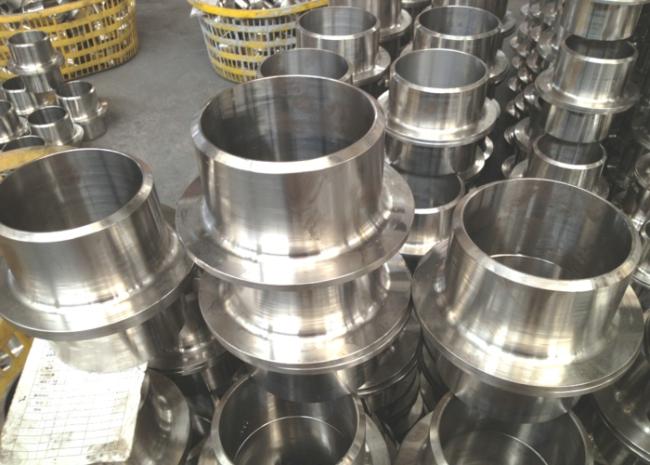

Product name : lap joint stub end

Item : buttweld-Lap Joint Stub End

Details :

Nominal Pipe Size Outside Diameter at Bevel Length Radius of Fillet Diameter of Lap A B NPS D L R G 1/2 3/4 1 21.3 26.7 33.4 51 51 51 3.0 3.0 3.0 0.8 0.8 0.8 35 43 51 11/4 11/2 2 42.2 48.3 60.3 51 51 64 5.0 6.0 8.0 0.8 0.8 0.8 64 73 92 21/2 3 31/2 73.0 88.9 101.6 64 64 76 8.0 10.0 10.0 0.8 0.8 0.8 106 127 140 4 5 6 114.3 141.3 168.3 76 76 89 11.0 11.0 13.0 0.8 1.6 1.6 157 185 218 8 10 12 219.1 273.0 323.8 102 127 152 13.0 13.0 13.0 1.6 1.6 1.6 270 324 381 14 16 18 355.6 406.4 457.0 152 152 152 13.0 13.0 13.0 1.6 1.6 1.6 413 470 533 20 22 24 508.0 559.0 610.0 152 152 152 13.0 13.0 13.0 1.6 -- 1.6 584 641 692
