Shining Food Grade Stainless Steel Tubing 304 304L 316L Welding SS Pipes

Product

 Size

Length

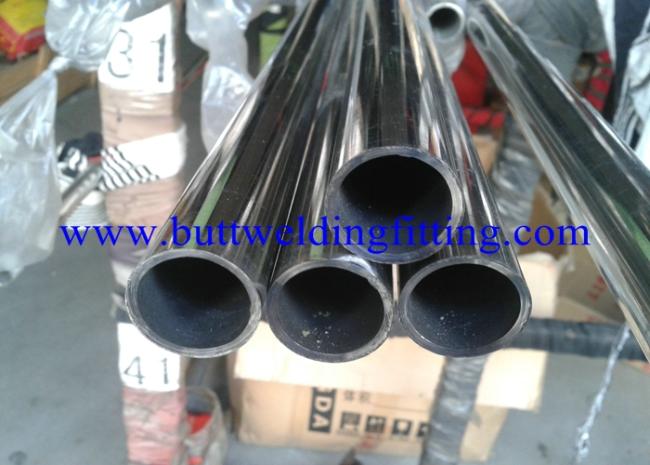

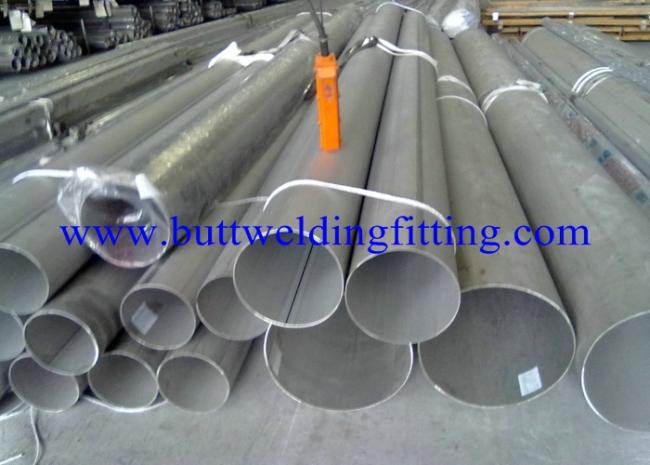

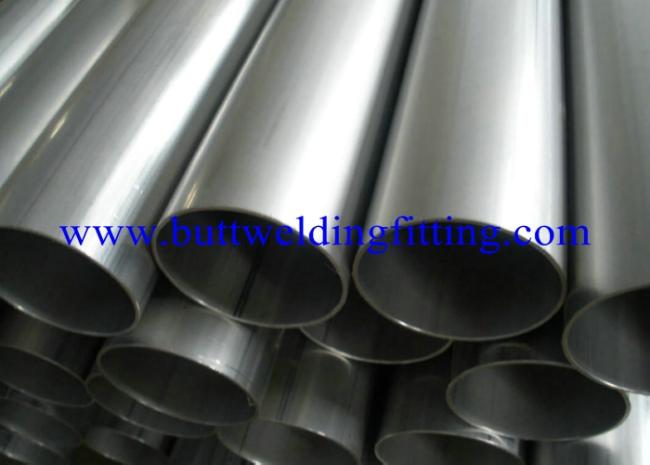

Welded Stainless Steel  Pipes

6mm - 400mm x 0.5mm - 10mm

Max 18000mm

American standards:

ASTM A249: Standard specification for welded austenitic steel boiler,superheater, heat-exchanger and
condenser tubes.

ASTM A269:Standard specification for welded austenitic stainless steel tubing for general service

ASTM A688:Standard specification for welded austenitic stainless steel feedwater heater tubes.

ASTM A268:Specification for seamless and welded Ferritic/Martensitic stainless steel tubing for
General Service

ASTM A789:Specification for seamless and welded Ferritic/Austenitic stainless steel tubing for
General Service

ASTM A312:Seamless/Welded austenitic stainless steel pipe

Germanic standards:

DIN17457: Welded circular austenitic stainless steel tubes subject to special requirements; technical
delivery conditions

•  Product:Welded Stainless Steel Pipe

② Material Grade: 304 / 304L / 316L/1.4301 / 1.4307 / 1.4404

③ Brand: KORER

④ Standard: ASTM / DIN

⑤ Delivery Condition: Bright Annealing Or Annealed&Pickled

⑥ Application: For Sugar Factory,Beverage Industry

⑦ Out Diameter:6mm – 400mm

⑧ Wall Thickness:0.3mm – 10mm

⑨ Packing: Bundles With Plastic Bags, Wooden Box With Angle Steel Frame Or others

⑩ Delivery Time: Generally 15Days – 45Days Or Depends on the quantity and Customers’ Request

Competitive Advantage:

1.We Professionally Manufacture Welded Stainless Steel Tubes About 20years ;

2.We  Are Approved By Iso 9001 And Manufacture License Of Pressure Pipes.

3.We Have Friendly And Long Term Business Relationships With The Customers Based On The Good Quality, Timely Delivery And Competitive Prices.

Grade

Chemical Composition(%)

Remark

C≤

Mn≤

P≤

S≤

Si≤

Cr

Ni

Mo

N

Cu

304

0.08

2.00

0.045

0.030

0.75

18.0~20.0

8.0~10.50

0~0.1

304L

0.030

2.00

0.045

0.030

0.75

18.0~20.0

8.0~12.0

0~0.1

316L

0.030

2.00

0.045

0.030

0.75

16.0~18.0

10.0~14.0

2.0~3.0

0~0.1

1.4301

0.07

2

0.045

0.015

1

17.0~19.0

8.0~10.50

0~0.1

1.4307

0.03

2

0.045

0.015

1

17.5~19.5

8.0~10.0

0~0.1

1.4404

0.03

2

0.045

0.015

1

16.5~18.5

10.0~13.00

2.0~2.5

0~0.1
