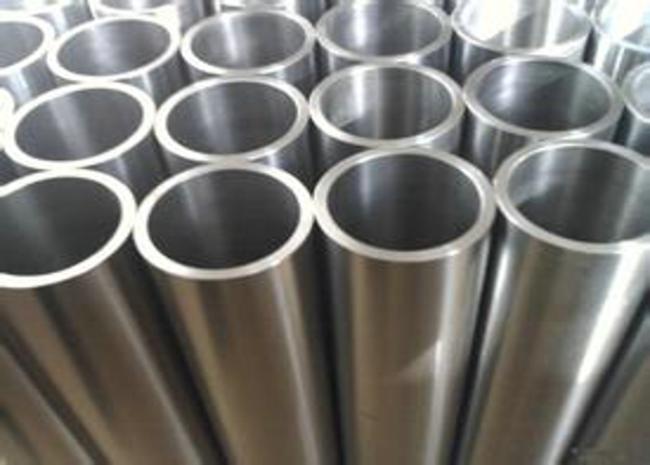

AP Finished Stainless Steel Seamless Pipe ASTM A312 AISI304 304L 316L SS Pipe

Standard Specification

ASTM A312,A213,A249,A269,A270A789,A554,A790,etc.

Material

304,304L,309S,310S,316L,317L,321,,347,347H,2205 etc.

Outer Diameter

6mm to 325mm

Wall Thickness

0.5mm to 25mm

Length

6m, 12m, 18m

Type

Round Pipe

Specification covers

Seamless,straight-seamless welded,

and heavily cold worked austenitic stainless steel pipe

Manufacture Process

Seamless (SML) Pipe

Diameter Tolerance

+/-1%

Permitted Variations

 In

Wall Thickness

                     Tolerance,% from Nominal

NPS Designator                                          Over      Under

1/8 to 21/2 inc., all t/D ratios                        20         12.5

3 to 18 inc., t/D up to 5% incl.                      22.5      12.5

3 to 18 inc., t/D over 5%                              15          12.5

20 and larger,welded,all t/D ratios               17.5       12.5

20 and larger,seamless,t/D up to 5% incl.    22.5      12.5

20 and larger,seamless,t/D over 5%            15         12.5

 Where:  t = Nominal Wall Thickness

         D = Ordered Outside Diameter

Inspection item

1. Size(outside,wall,length);
2. 2.Surface of Pipe;
3. Chemical Composition;
4. 4.Mechanical Testing
5. Hydro-static Or Nondestructive Electric Test
6. ICT(Inter-granular Corrosion Test)  etc.

Ordering Information

• Quantity(feet,meters, or number of lengths)
• Steel Grade
• Size(outside diameter,nominal wall thickness,length)
• Test report requirements etc.
