Stainless Steel 316Ti Butt Weld Reducing Tee , Steel Pipe Tee ASME B16.9
Stainless Steel 316Ti Butt Weld Reducing Tee , Steel Pipe Tee ASME B16.9
Stainless Steel 316Ti
1)higher strength and better creep resistance
2)excellent mechanical and corrosion properties
3)ISO9001
Stainless Steel 316Ti
S.S 316Ti offers higher strength and better creep resistance at higher temperatures than S.S 304. S.S 316Ti also possesses excellent mechanical and corrosion properties at sub-zero temperatures.
Chemical Composition
| C | Mn | P | S | Si | Cr | Ni | Mo | Ti | |
| S.S 316 S.S 316L S.S 316Ti |
0.08 max 0.03 max 0.08 max |
2.0 max |
0.045 max |
0.030 max |
1.0 max |
16.0 to 18.0 |
10.0 to 14.0 |
2.00 to 3.00 |
- 0.5 max 5X%C |
Mechanical Properties at Room Temperature
| S.S 316 | S.S 316L | S.S 316Ti | ||||
| Typical | Minimum | Typical | Minimum | Typical | Minimum | |
| Tensile Strength, MPa | 580 | 515 | 570 | 485 | 600 | 515 |
| Proof Stress (0.2 % offset), MPa | 310 | 205 | 300 | 170 | 320 | 205 |
| Elongation (Percent in L = 5.65 So) | 55 | 40 | 60 | 40 | 50 | 40 |
| Hardness (Brinell) | 165 | - | 165 | - | 165 | - |
Asme butt-weld pipe Fittings
1/2"- 24" seamless
4"-48" seam welding
ANSI,ASME,DIN,JIS,GOST,BS
30,45,90,180 degree SR, LR,
PIPE FITTING
Size range: seamless 1/2" to 24"
seam weldding 4" to 48"
Material: carbon steel ASTM A234 wpb, wpc; A106; st37.0; S235JR;
SS400; CT20, 20#; Q235A; Q235B
Standard: ANSIB16.9, ASME B16.28; DIN 2605, DIN 2615, DIN2616,
DIN2617;GOST 17375; GOST 17378; JIS2311
Wall thickness: 2MM----25MM
SCH5,SCH10S, SCH10, SCH20, SCH30, STD, SCH40,
XS, SCH60, SCH80, SCH100, SCH120, SCH140,
SCH160, XXS, SGP, LG,

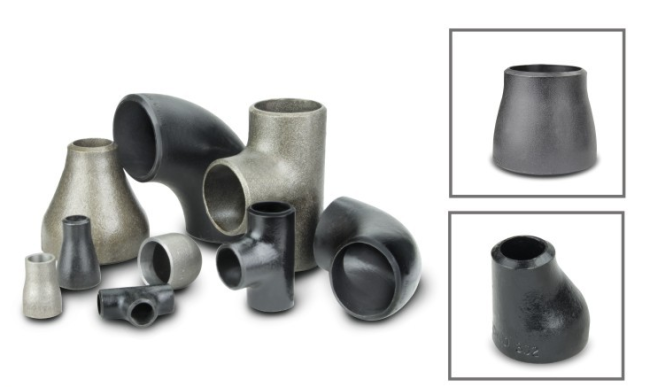

Products:
Elbow: 45 deg, 90 deg, 180 deg, long redius, short redius
Tee: equal, reducing
Reducer: concentric, eccentric,
Cap
Cross
